YF-S201C / ZJ-S201C Water Flow Sensor 0.5” (1/2 Inch) – Sensor Pengukur Debit Air / Flowmeter untuk Arduino & IoT

Name: YF-S201C / ZJ-S201C Water Flow Sensor 0.5” (1/2 Inch) – Sensor Pengukur Debit Air / Flowmeter untuk Arduino & IoT - CNC STORE BANDUNG
Availability: InStock

Rentang harga: Rp44.000 hingga Rp53.500

Variasi

Hapus

Compare

Add to wishlist

SKU: N/A

Spesifikasi

Informasi Spesifikasi

Berat	25 gram
Dimensi	4 × 4 × 3 cm
Variasi	#NAME?, 0.3mm Hijau, 0.3mm Hitam, 0.3mm Kuning, 0.3mm Merah, 0.3mm Putih, 0.4mm Hijau, 0.4mm Hitam, 0.4mm Kuning, 0.4mm Merah, 0.4mm Putih, 0.56 Inch CA, 0.56 Inch CC, 0.5mm Hijau, 0.5mm Hitam, 0.5mm Kuning, 0.5mm Merah, 0.5mm Putih, 0.6mm Hitam, 0.6mm Merah, 1 CHANNEL, 1 LUBANG, 1 meter, 1 Slot, 1 Slot Baterai, 1.2 Inch CA, 1.25-4 Black, 1.25-4 Red, 1.25-6 Black, 1.25-6 Red, 10 OHM, 100 OHM, 100 Rpm, 100K OHM, 100mm, 102x348mm, 10A, 10K OHM, 10Kg, 10mm, 10x100cm, 10x50cm, 10x70cm, 120x595mm, 12V, 12V 180KG, 12V 280KG, 12V 60KG, 12VDC, 130 RPM, 136 RPM, 1360 RPM, 1360RPM, 150, 150 OHM, 150 RPM, 150mm, 15A, 16GB, 16GB + Case, 170 RPM, 180 DERAJAT, 1800 RPM, 1A, 1K OHM, 1K5 OHM, 1Kg, 1kg tanpa modul, 1M OHM, 1S, 2 CHANNEL, 2 LUBANG, 2 meter, 2 mm Ke 2.3 mm, 2 mm Ke 3 mm, 2 Slot, 2 Slot Baterai, 2 Wire, 2-4 Black, 2-4 Blue, 2-4 Red, 2-8 Black, 2-8 Red, 200 OHM, 200 Rpm, 200mm, 20A, 20Kg, 20V, 20×20, 20×30, 20×40, 210 RPM, 22 OHM, 220VAC, 220VAC – BIRU, 220VAC – HIJAU, 220VAC – KUNING, 220VAC – MERAH, 220VAC – PUTIH, 220VAC -BIRU BELMEI, 220VAC -HIJAU BELMEI, 220VAC -KUNING BELME, 220VAC -MERAH BELMEI, 220VAC -PUTIH BELMEI, 230x800mm, 24V, 24VDC, 24VDC – BIRU, 24VDC – BIRU BELMEI, 24VDC – HIJAU, 24VDC – HIJAU BELMEI, 24VDC – KUNING, 24VDC – KUNING BELME, 24VDC – MERAH, 24VDC – MERAH BELMEI, 24VDC – PUTIH, 24VDC – PUTIH BELMEI, 25 RPM, 25A, 27 RPM, 280 RPM, 280MM, 28BYJ-48 Only, 2K2 OHM, 2S, 3 LUBANG, 3 MATA BLUE, 3 MATA GREEN, 3 MATA RED, 3 MATA WHARM, 3 MATA WHITE, 3 meter, 3 mm Ke 3 mm, 3 Wire, 3.2V LiFePO4, 3.5-4 Black, 3.5-4 Red, 3.5-6 Black, 3.7V Lithium, 30 PIN, 30 RPM, 300 Rpm, 300mm, 30×30, 32GB + Case, 330 OHM, 350mm, 360 DERAJAT, 38 PIN, 380 RPM, 380MM, 381 RPM, 3D BIRU, 3D KUNING, 3D MERAH, 3K3 OHM, 3mm, 3S, 4 CHANNEL, 4 LUBANG, 4 PIn, 4 Slot Baterai, 400P, 400P Transparant, 40A, 433MHz, 47 OHM, 470 OHM, 4GB, 4K7 OHM, 4mm, 4P, 4R7, 4S 30A, 4S 40A, 5 meter, 5 mm Ke 5 mm, 5.5-6 Black, 5.5-6 Red, 5.5-6 Yellow, 5.5-8 Black, 5.5-8 Red, 500 RPM, 5000 RPM, 5A, 5K6 OHM, 5Kg, 5mm Ke 3 mm, 5V, 5V TO 12V, 5V TO 9V, 6 CHANNEL, 6 MATA BLUE, 6 MATA GREEN, 6 MATA RED, 6 MATA WHARM, 6 MATA WHITE, 60 Rpm, 6000 RPM, 620 RPM, 66 RPM, 68 RPM, 6K8 OHM, 70x173mm, 71 RPM, 8 CHANNEL, 830 RPM, 830P, 8GB, 8GB + Case, 8m, 8mm, 8P, 90 RPM, 915MHz, 92x374mm, 9mm, 9V, A4, A5, ABU ABU, ABU-ABU, AKRILIK, ALUMUNIUM, AS608, BACK, BASIC, BATTERY, Bawah, BESI, BIRU, Biru 1.5-2.5mm² (AWG, Biru Muda, BLACK, Black 17HS8401S, BLUE, BMS 2S, BMS 2S 2A, BMS 3S, BMS 4S, BODY ONLY, Box, C100FK02 MDA, C100FK02 VDA, Case + 4pcs MG90, CASE BIRU, CASE MERAH, Case Only, Case Only – Biru, Case Only – Hitam, CH340, CHASSING ONLY, COKLAT, Cooper, CP2102, Cutter A100, Cutter L150, D4184, DIP, Display, DOUBLE HOLE, Double Layer, DOUBLE SHAFT, E-TEN 1021, E-TEN 1122, E-TEN 1322, E0508 Oranye, E0508 Putih, E1008 Kuning, E1008 Merah, E1508 Hitam, E1508 Merah, E2508 Abu, E2508 Biru, E4010 Abu, E4010 Oranye, E7508 Biru, E7508 Putih, Energetic Replacment, ESP32 S3 OV2640, ESP32 S3 OV5640, Female, Female 1.25 – 156, Female 2 – 156, Female 5.5 – 156, Female To Female, FEMALE-BIRU, FEMALE-HIJAU, FR120N, Full Kit – Biru, Full Kit – Hitam, Full KIT Arduino Nano + Code, Full KIT ESP32 + Code, GREEN, HC-SR04 ONLY, HIJAU, HITAM, Hitam Merah, HY-SRF05, KUNING, Kuning 4.0-6.0mm² (A, LR7843, M3x15, M3x20, M3x25, M3x30, M8L, M8M, M8N, Male, Male 1.25 – 156, Male 2 – 156, Male 5.5 – 156, Male To Female, Male To Male, MALE-BIRU, MALE-HIJAU, Mata pisau 5pcs, ME-8108, Mega2560 Type B, Mega2560 Type C, MERAH, Merah 0.5-1.0mm² (AW, Merah Merah, MG995 MG996, MG996/MG996R/MG995, MH-Z19B, MH-Z19C, Micro Usb, MOTOR DC N20, MOTORDC GEARBOX, Mounting, MUR M3, OV2640 160°, Paket Lengkap, PCA9548A, PIN Header V3, Pisau, PLUS PIN HEAD, PUTIH, Putih 0.25-0.34mm² (, Rainbow, RED, RGB, RING M3, RV 1.25-4, RV 1.25-6, RV 3.5-4, RV 3.5-6, RV 5.5-8, SC10-6, SC16-8, SC25-8, Set Pisau Trimmer, SFM-V1.7, SG90, SG90/MG90, Shaft D 3-5V, Shaft O 3-6V, Sheet PEI-PEO, SIDE, Silver 17HS8401, SINGLE HOLE, Single Layer, SINGLE SHAFT, SMD, SN, STM32F401CCU6, STM32F401CCU6 HIJAU, STM32F401RCT6, STM32F411CEU6, TANPA PIN HEAD, TBR-10 10A 20MM, TBR-20 20A 25.5MM, TBR-30 30A 28MM, TCA9548A, tdp-0055, Terminal Block V3, Terminal Block V4, Trimmer, TTP224, TTP224 4 CHANNEL, TTP226, TTP226 8 CHANNEL, TTP229, TTP229 16 CHANNEL, Type C, TYPE-C, TZ-8108, UK-B1, UK-B2, UK3N, UK5N, UKK3, UKK5, USLKG 3, USLKG 5, V1.2, V2.0, V3, V4, VL53L0X, VL53L1X, VL6180X, Welding PEN, WHITE, WROOM-1-N16R8, WROOM-1-N8R2, XY-P15W, XY-P40W, YELLOW, YF-S201C, ZB5 1-10, ZB5 11-20, ZB5 21-30, ZB6 1-10, ZB6 11-20, ZB6 21-30, ZB8 1-10, ZB8 11-20, ZB8 21-30, ZJ-S201C, ZK-316, ZK-516

Deskripsi

SEN-0215: YF-S201C

SEN-0288: ZJ-S201C

=======

Kenapa CNC STORE BANDUNG?

Produk high quality

Ada garansi 14 hari

Bisa tanya teknis & dibantu

Cocok untuk teknisi, pelajar, & DIY

==== Deskripsi ====

Mau tahu air ngalir berapa liter per menit tapi cuma nebak-nebak?

Atau bikin sistem pompa, dispenser, atau monitoring air tapi nggak ada datanya?

Tenang Insan Bangor

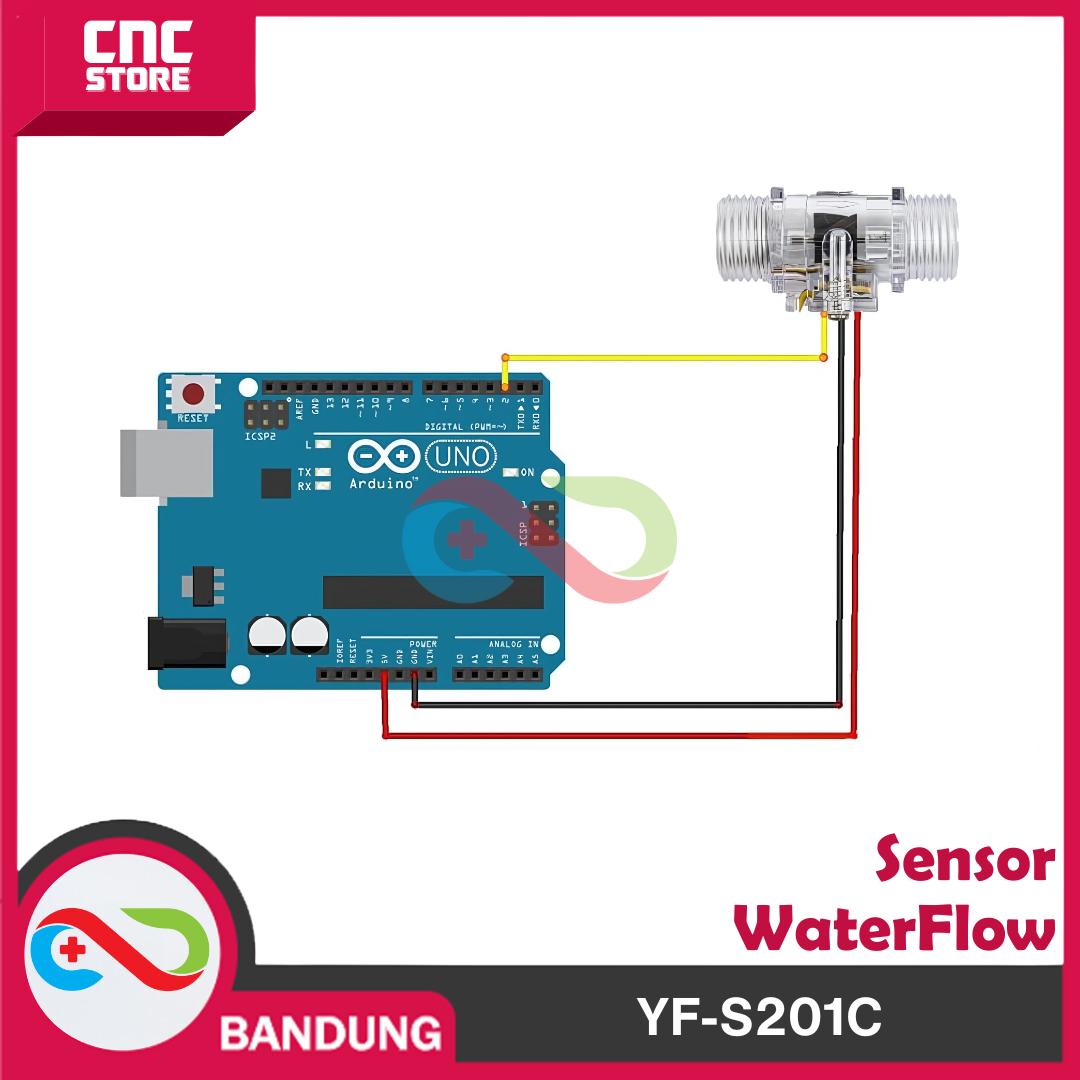

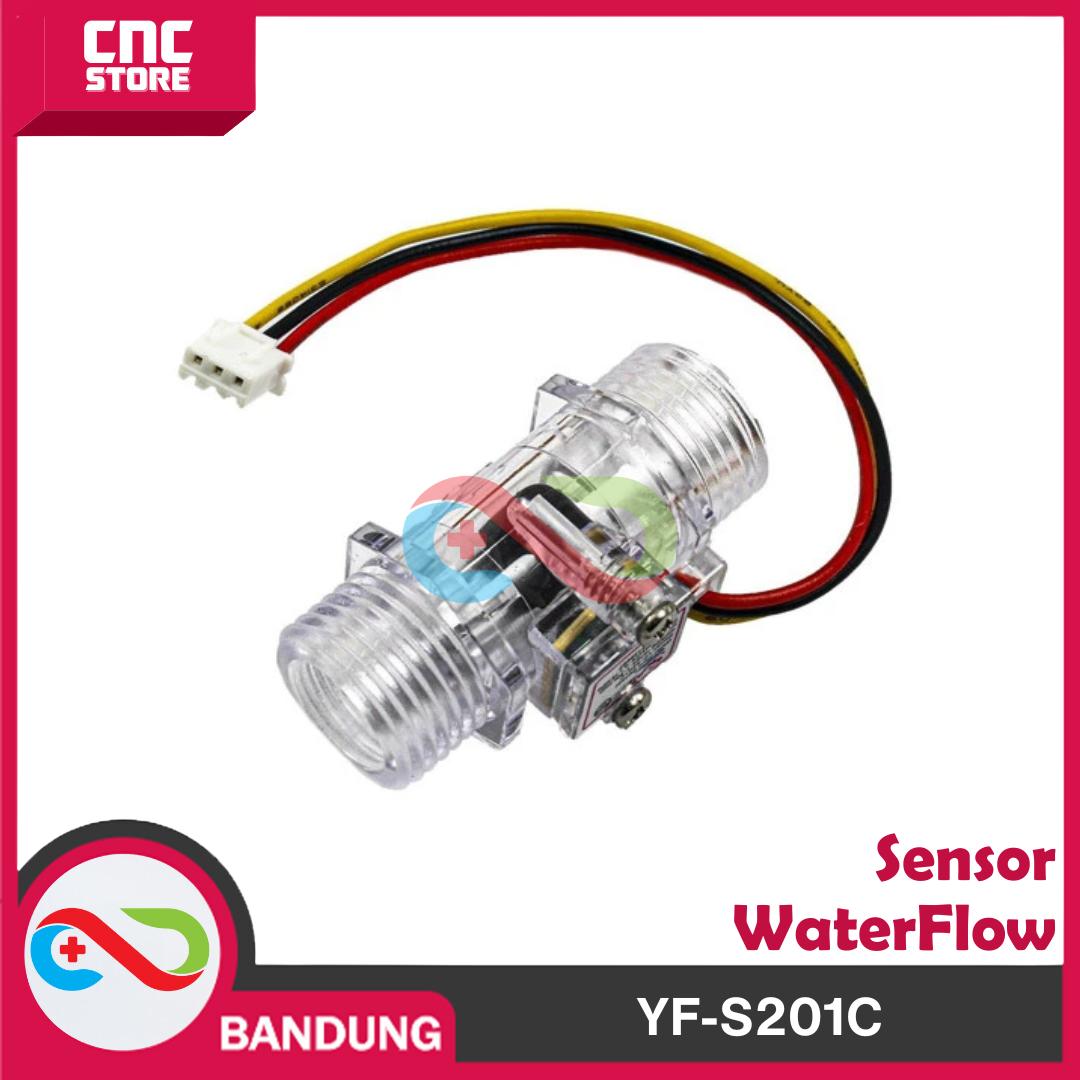

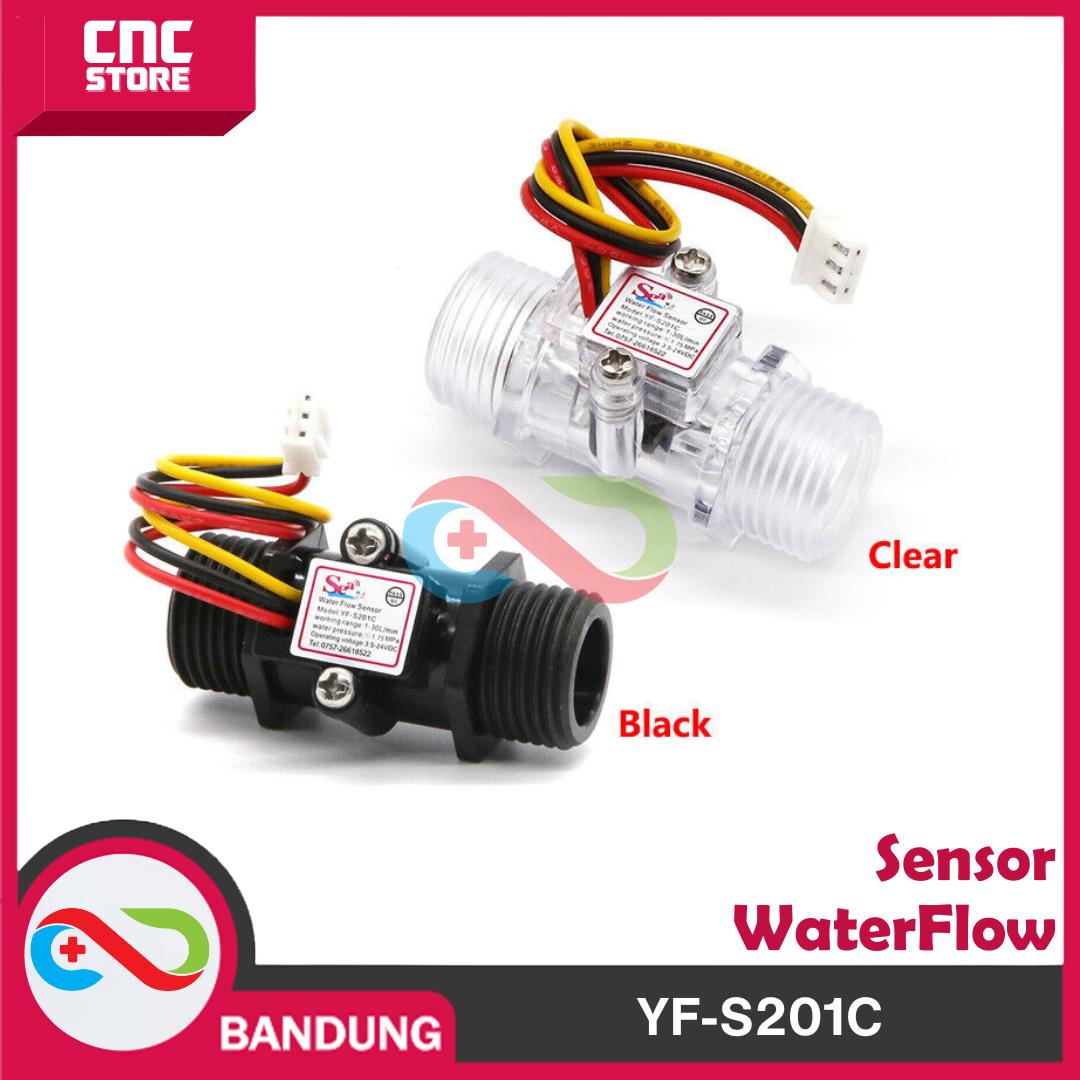

Water Flow Sensor YF-S201C / ZJ-S201C ini siap ngitung debit air secara real-time.

Simple, murah, dan sudah terbukti di banyak proyek Arduino & IoT.

YF-S201C / ZJ-S201C adalah sensor aliran air (flowmeter) dengan ukuran ulir 0.5 inch (1/2”) yang bekerja menggunakan rotor dan sensor Hall Effect untuk menghasilkan sinyal pulsa digital sesuai laju aliran air. Memiliki rentang pengukuran laju aliran air dari 1 hingga 30 liter per menit (L/min) dan dilengkapi dengan port koneksi berdiameter 3,5 mm.

==== Spesifikasi ====

– Model: YF-S201C / ZJ-S201C

+ Perbedaan: YF-S201C lebih stabil pembacaannya di bandingkan ZJ-S201C. Untuk ZJ-S201C perlu memakai resistor pull-up karena kalo tidak pake hasil pembacaannya tidak stabil.

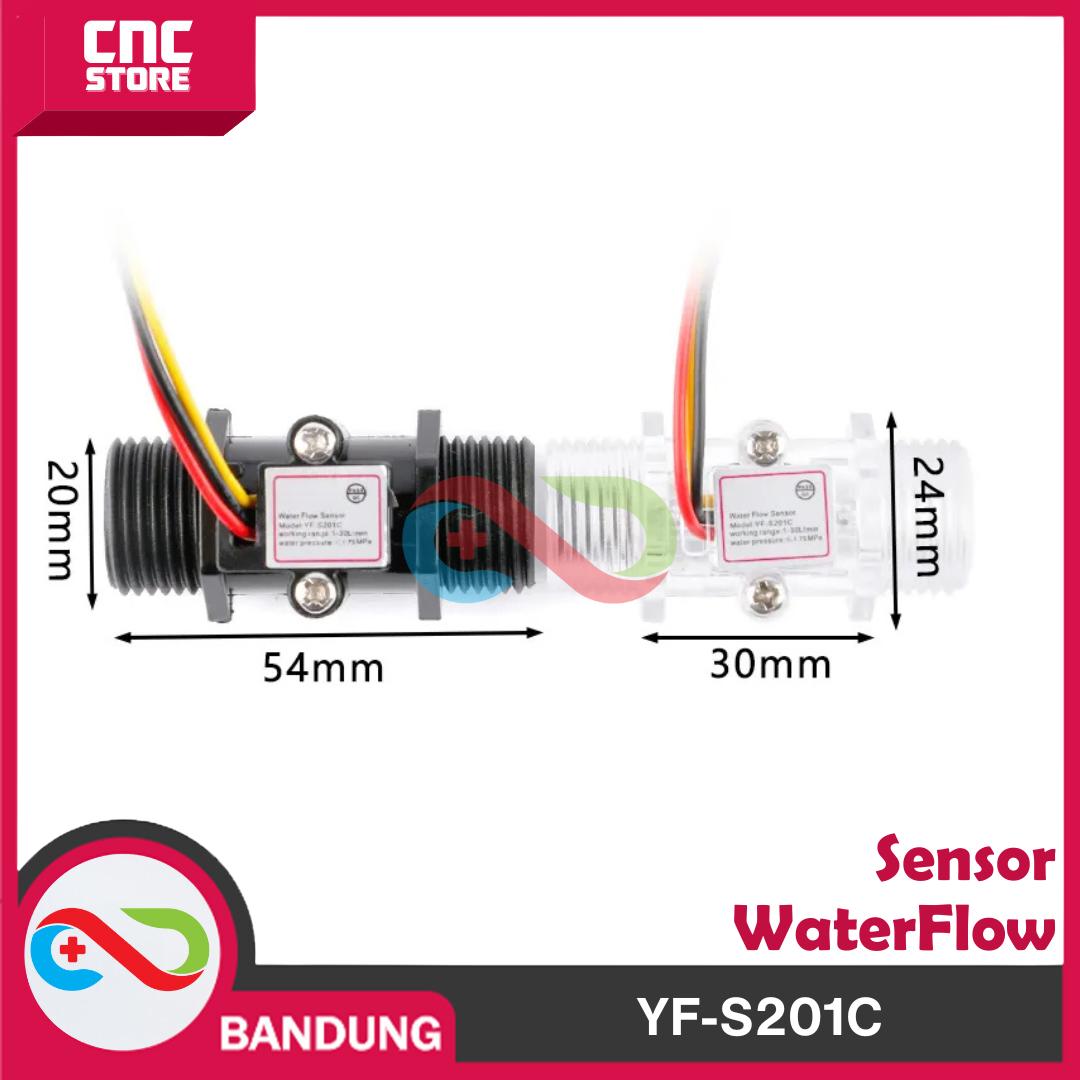

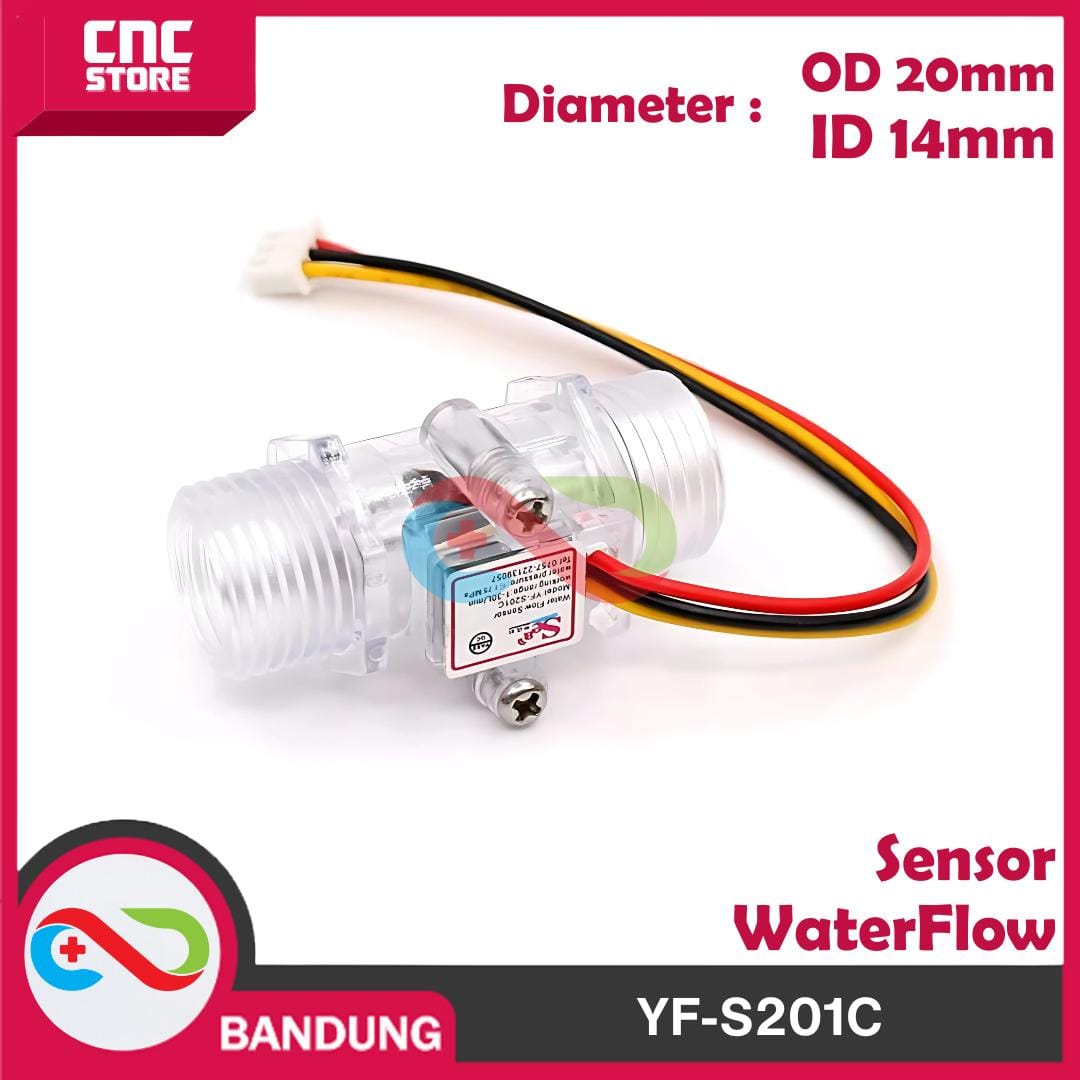

– Ukuran Pipa: 1/2 Inch (0.5”)

– Tegangan Kerja: DC 5V – 18V

– Arus Kerja: ≤ 15 mA

– Output Sinyal: Pulsa digital (Hall Effect)

– Rentang Debit Air: ± 1 – 30 Liter/menit

– Akurasi: ± 10%

– Suhu Fluida: 0°C – 80°C

– Tekanan Maksimum: ≤ 1.75 MPa

– Material Body: Plastik

– Media Fluida: Air bersih(tidak disarankan cairan kental / korosif)

==== Aplikasi ====

Monitoring debit air
