ESP-0006
========
CATATAN PENTING!!
UNTUK ARDUINO ATAU MIKROKONTROLER BER-IC KOMUNIKASI CH340, TIDAK SUPPORT WINDOWS 11 DAN ARDUINODROID.
Deskripsi:
=================================
Ini salah satu modul IoT paling populer saat ini gan. Ukurannya yang mini udah bisa menyajikan fungsi ESP8266 secara maksimal. Buat yang demen IoT, modul ini sangat bisa jadi pilihan agan. Berikut fitur dan spesifikasinya :
Fitur :
=================================
– 11 digital input/output pins, all pins have interrupt/pwm/I2C/one-wire supported(except D0)
– 1 analog input(3.2V max input)
– a Micro USB connection
– Compatible with Arduino
– Compatible with nodemcu
– lots of shields
Spesifikasi :
=================================
– Microcontroller : ESP-8266 ESP-12F
– Operating Voltage : 3.3V
– Digital I/O Pins : 11
– Analog Input Pins : 1(Max input: 3.2V)
– Clock Speed : 80MHz/160MHz
– Flash : 4M bytes
– Length : 34.2mm
– Width : 25.6mm
– Weight : 10g
Kabel Data produk tersebut :
https://shopee.co.id/product/62956347/6911263163/
Pinout :
=================================
PIN__________FUNCTION__________ESP-8266 PIN
=======================================
TX____________TXD________________TXD
RX____________RXD________________RXD
A0___Analog input, max 3.3V input_____ A0
D0_____________IO________________GPIO16
D1____________IO, SCL ____________GPIO5
D2____________IO, SDA____________GPIO4
D3____________IO, 10k Pull-up_______GPIO0
D4___O, 10k Pull-up, BUILTIN_LED____GPIO2
D5____________IO, SCK____________GPIO14
D6____________IO, MISO ___________GPIO12
D7____________IO, MOSI___________GPIO13
D8________IO, 10k Pull-down, SS_____GPIO15
G_____________Ground______________GND
5V______________5V__________________-
3V3____________3.3V________________3.3V
RST____________Reset_______________RST
Mari di ORDER !!!!!!

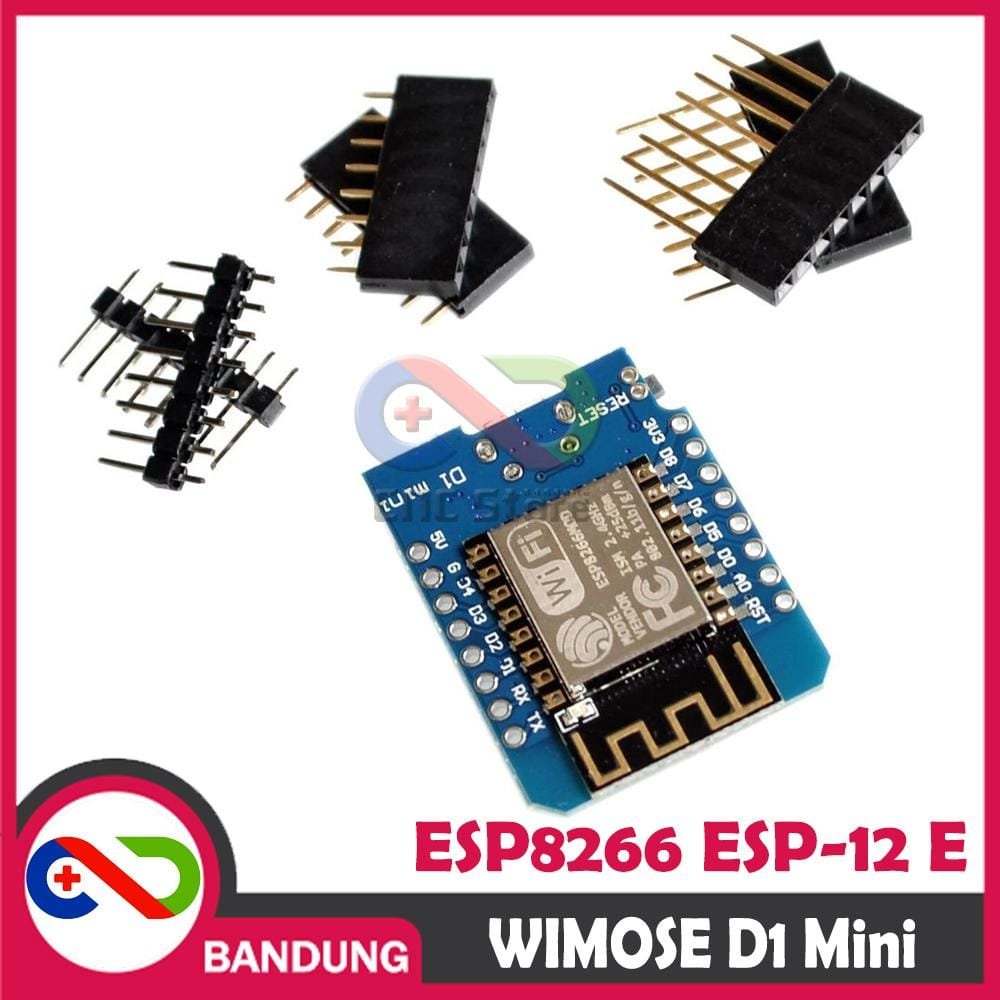

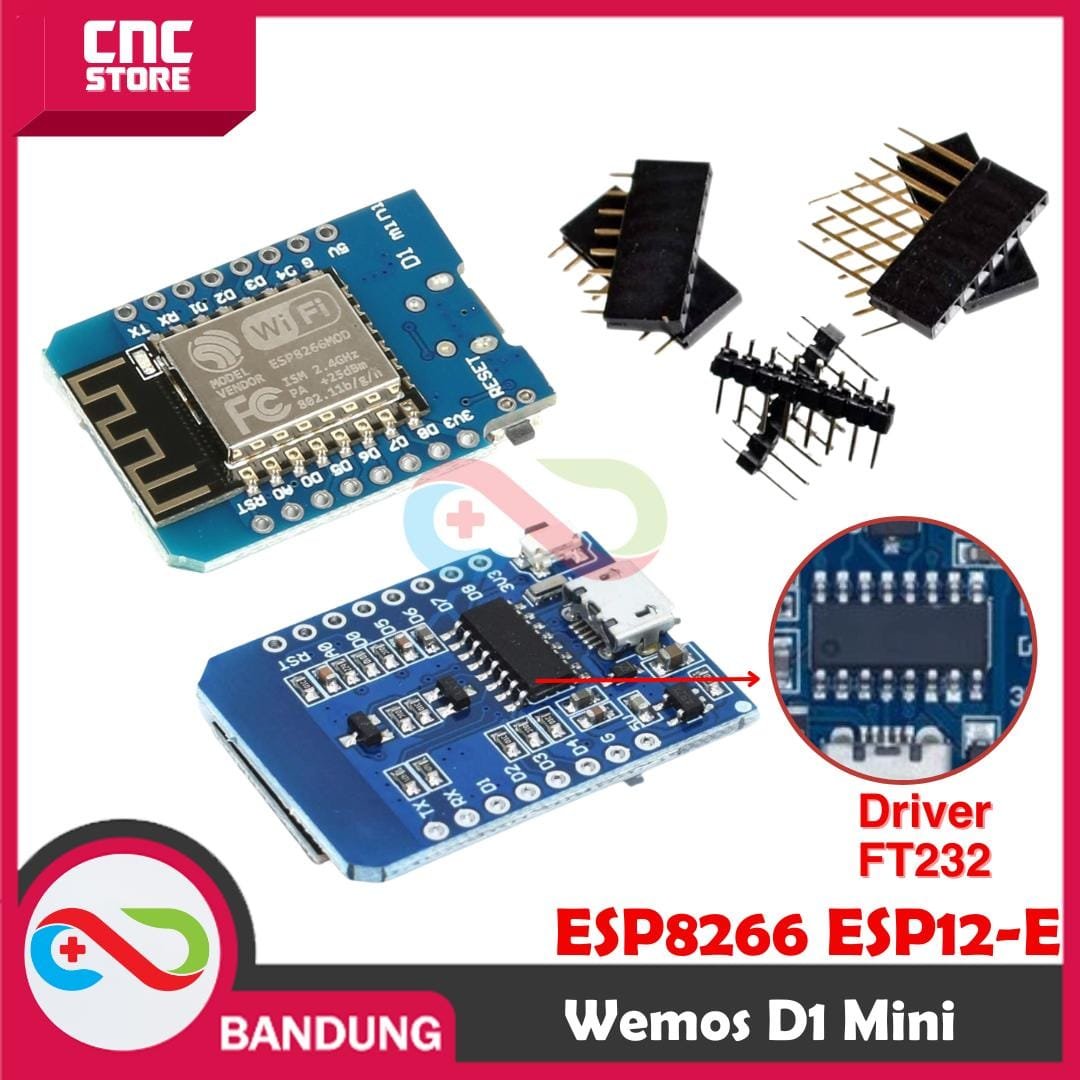

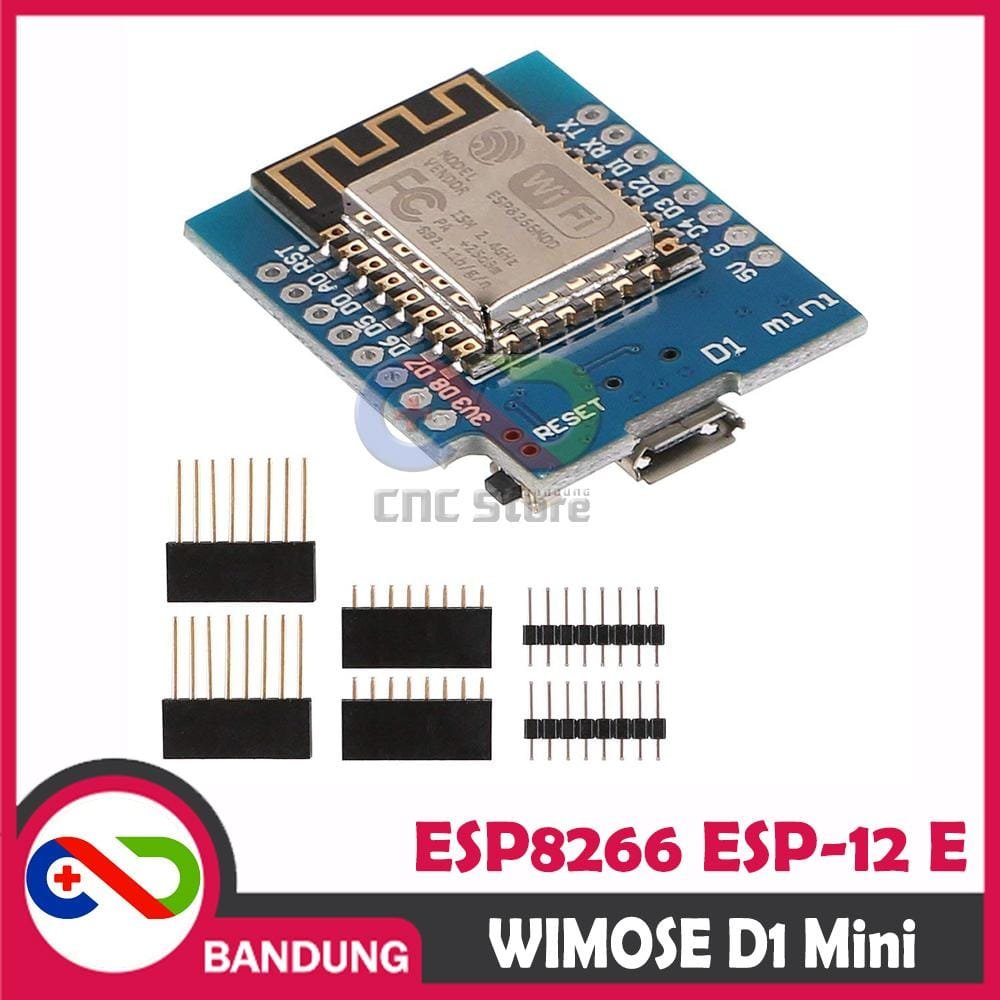

Paket :
=================================

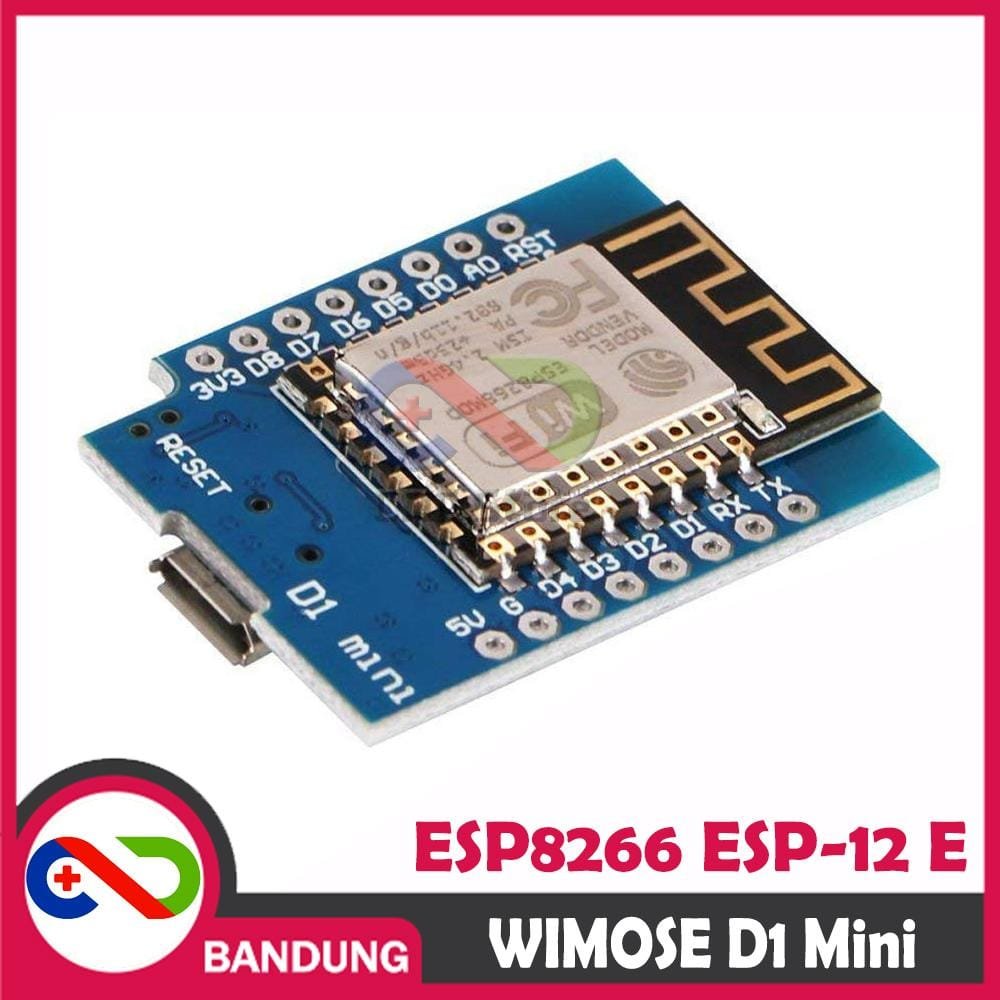

1. 1x WeMos D1 mini ESP8266 ESP-12
2. 2x Long female pins
3. 2x Short female pins
4. 2x Normal pins
UNTUK HARGA GROSIR CHAT US ^^
