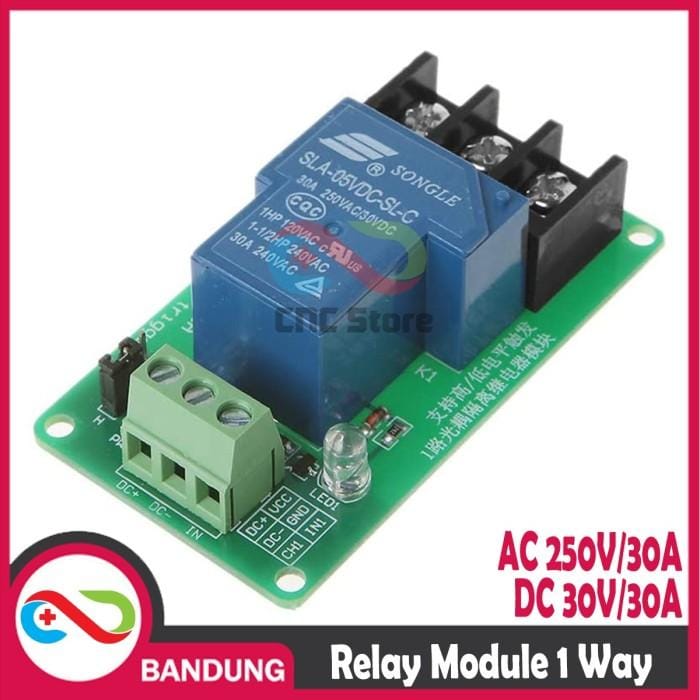

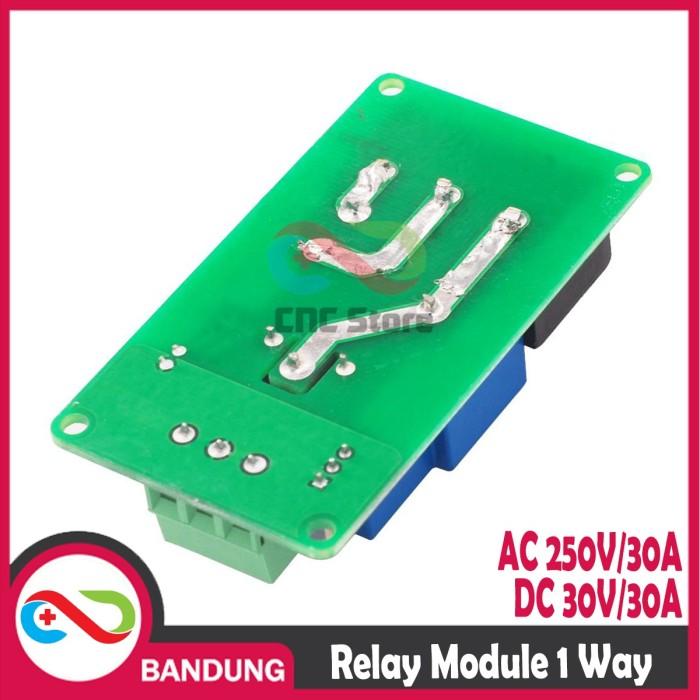

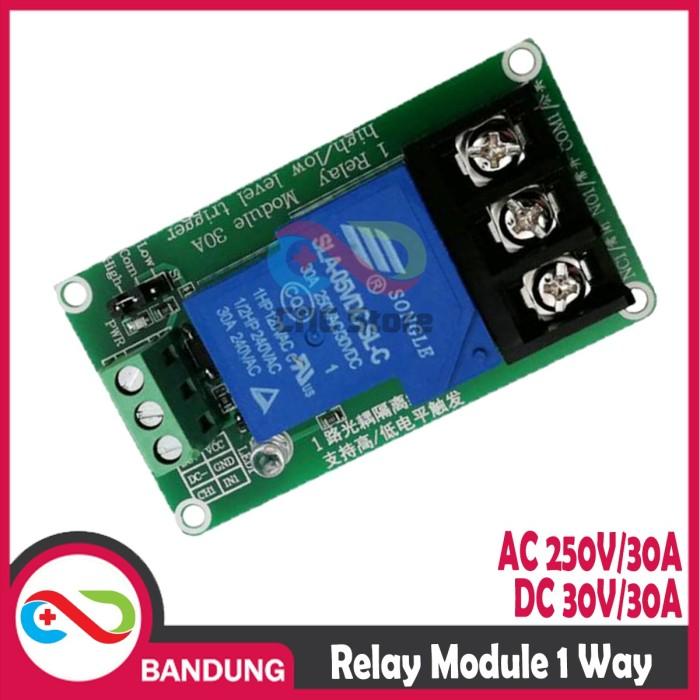

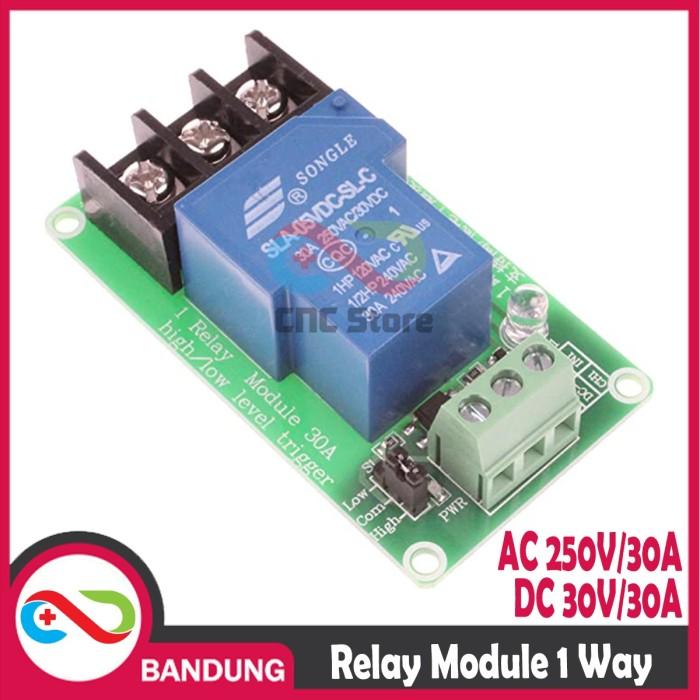

RELAY MODULE 5V 1 WAY 30A OPTOCOUPLER ISOLATION

REL-0015
=========

Deskripsi:
==========================
Agan pengen nge drive lampu 220V pake arduino Nggak mungkin gan, lhaa tegangannya wae cuman 5V/20mA kok. Kalo di acara uji nyali, si arduino-nya udah melambaikan tangan ke arah kamera pasti. :D

Nahh, solusinya yaitu menggunakan modul driver relay. Relaynya sendiri mampu mengalirkan arus AC hingga 30A pada tegangan 250V. Sedangkan kalo dikasi tegangan DC, bisa mengalirkan arus maksimal 30A/30V. Modul ini bisa dikontrol secara langsung oleh arduino agan. Canggih dah !!! :D

Spesifikasi:
==========================
Supply voltage: DC5V;
Quiescent current: 5mA;
Maximum working current: 190mA;
Trigger mode: High / Low Level Trigger;
Load voltage: DC 30V / AC 250V;
Load current: 30A;
Module life: 10 million times;
Switch the maximum frequency: ? 5KHz;
Product weight: 46g;
Size:72x40x24mm (LxWxH);
Mounting hole size:44.5×27.5(LxW);

Trigger voltage range:
High-level trigger:
DC 3.3-5V relay on;
DC 0-2.5V relay off;
—-
Low-level trigger:
DC 0-2V relay on;
DC 3-5V relay off;

Paket:
==========================
1 x RELAY MODULE 5V 1 WAY 30A OPTOCOUPLER ISOLATION

UNTUK HARGA GROSIR CHAT US ^^
