MODULE SENSOR KELEMBABAN TANAH SOIL HUMIDITY MOISTURE SENSOR MODUL

SEN-0011
========

Description:
=================================
Sensor ini merupakan sensor yang dapaty kita gunakan untuk mendeteksi kelembaban tanah nih gan. biasanya untuk project penyiraman otomatis misalnya, dan sebagainya

Spesifikasi:
=================================
– Operating voltage: 3.3V~5V.
– Adjustable sensitivity (shown in blue digital potentiometer adjustment)
– Dual output mode,analog output more accurate.
– A fixed bolt hole for easy installation.
– With power indicator (red) and digital switching output indicator (green).
– Having LM393 comparator chip, stable.
– Panel PCB Dimension: 3cm x 1.5cm.
– Soil Probe Dimension: 6cm x 2cm.
– Cable Length: 21cm.

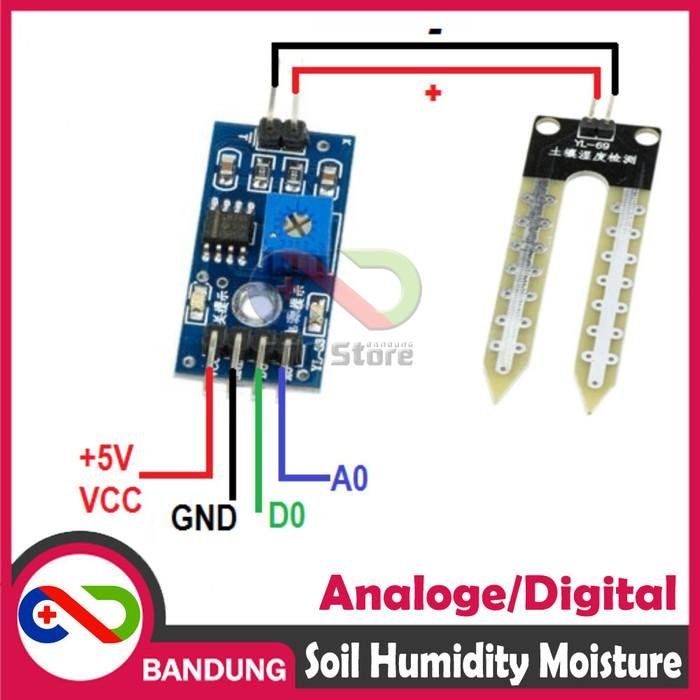

Wire:
=================================
VCC: 3.3V-5V.
GND: GND.
DO: digital output interface(0 and 1).
AO: analog output interface.

PRODUK TERKAIT
==============================
– Sensor Lainya:

– Arduino Compatible:

– Display:

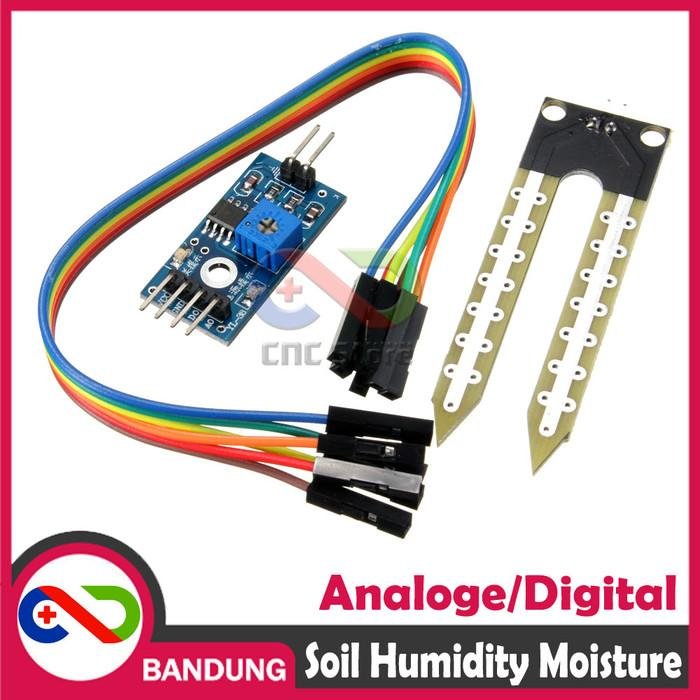

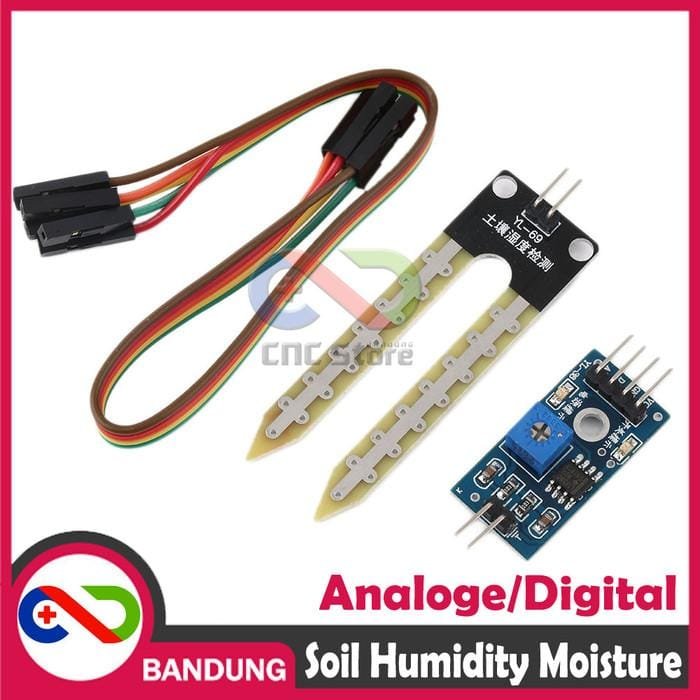

Paket :
=================================
1. 1 x Soil moisture detector module
2. 1 x Probe
3. 5 x Jumper Cables

UNTUK HARGA GROSIR CHAT US ^^
