MTR-0006
Deskripsi:

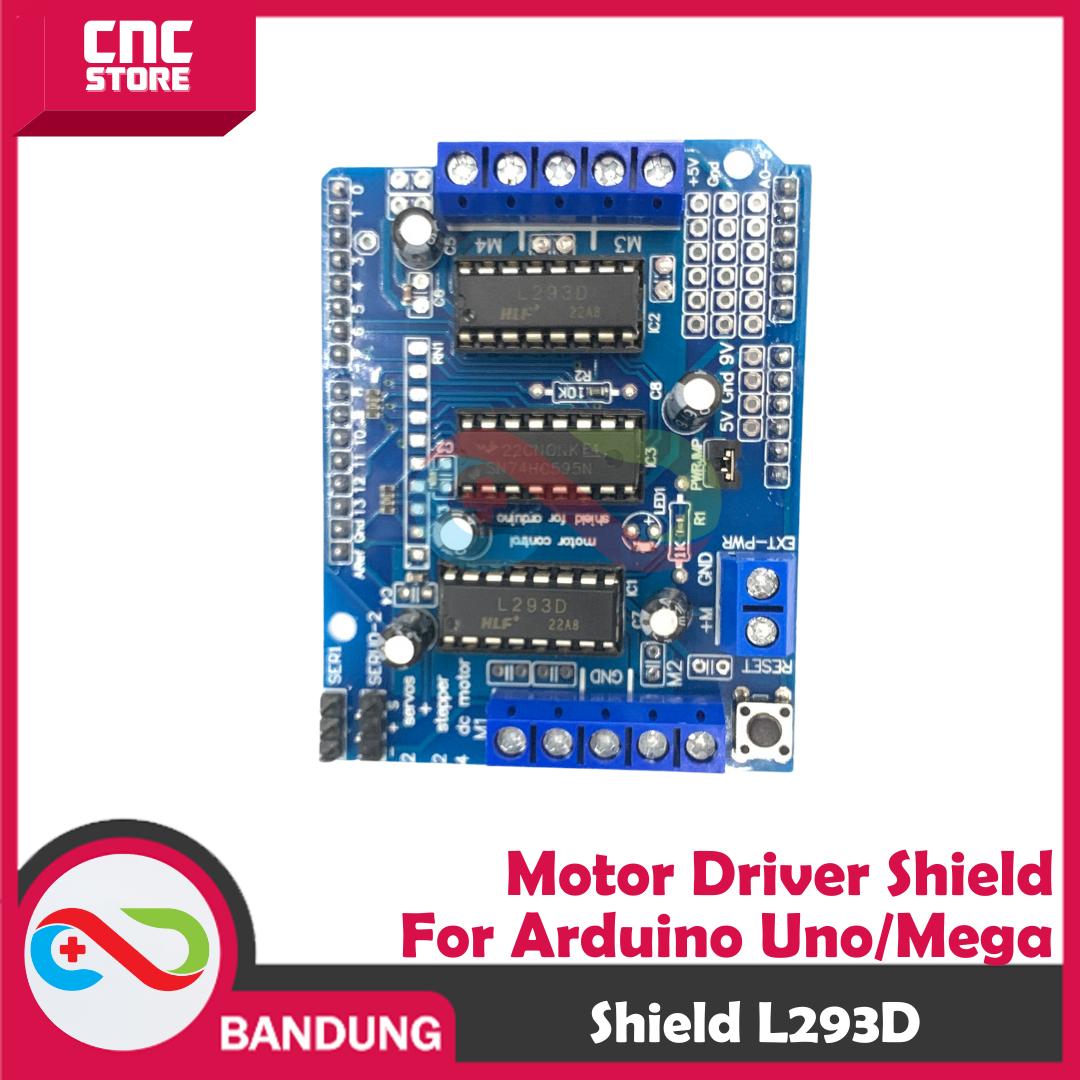

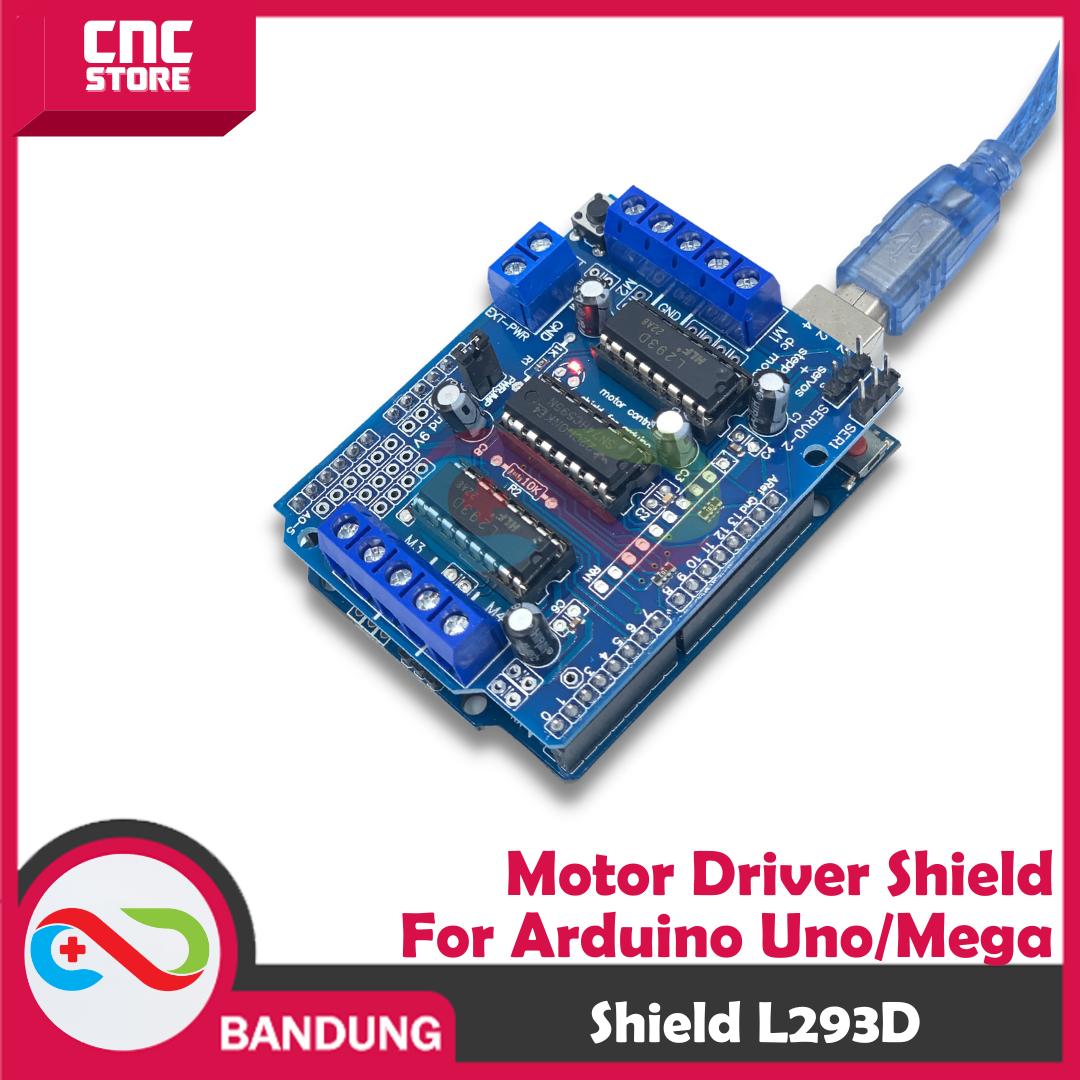

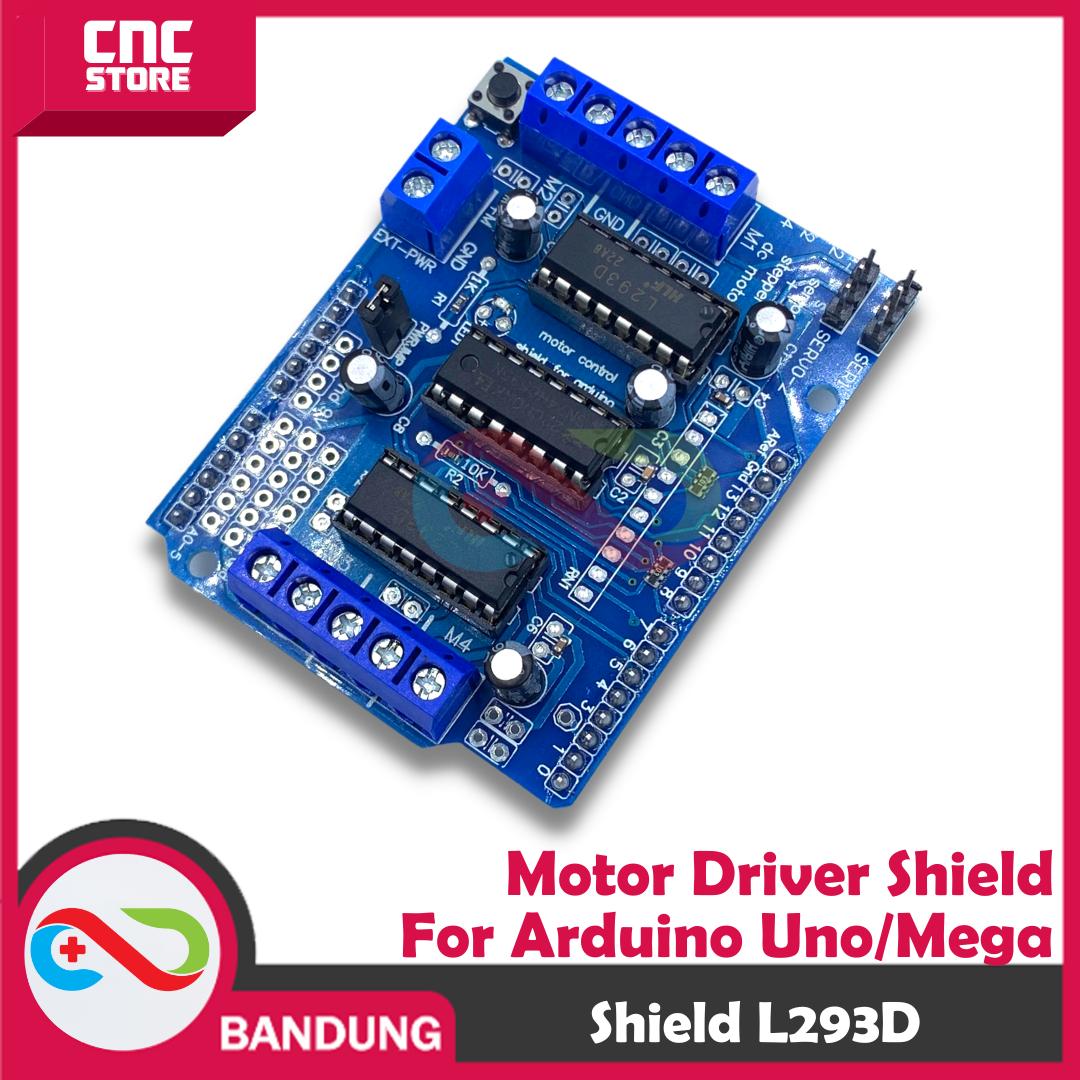

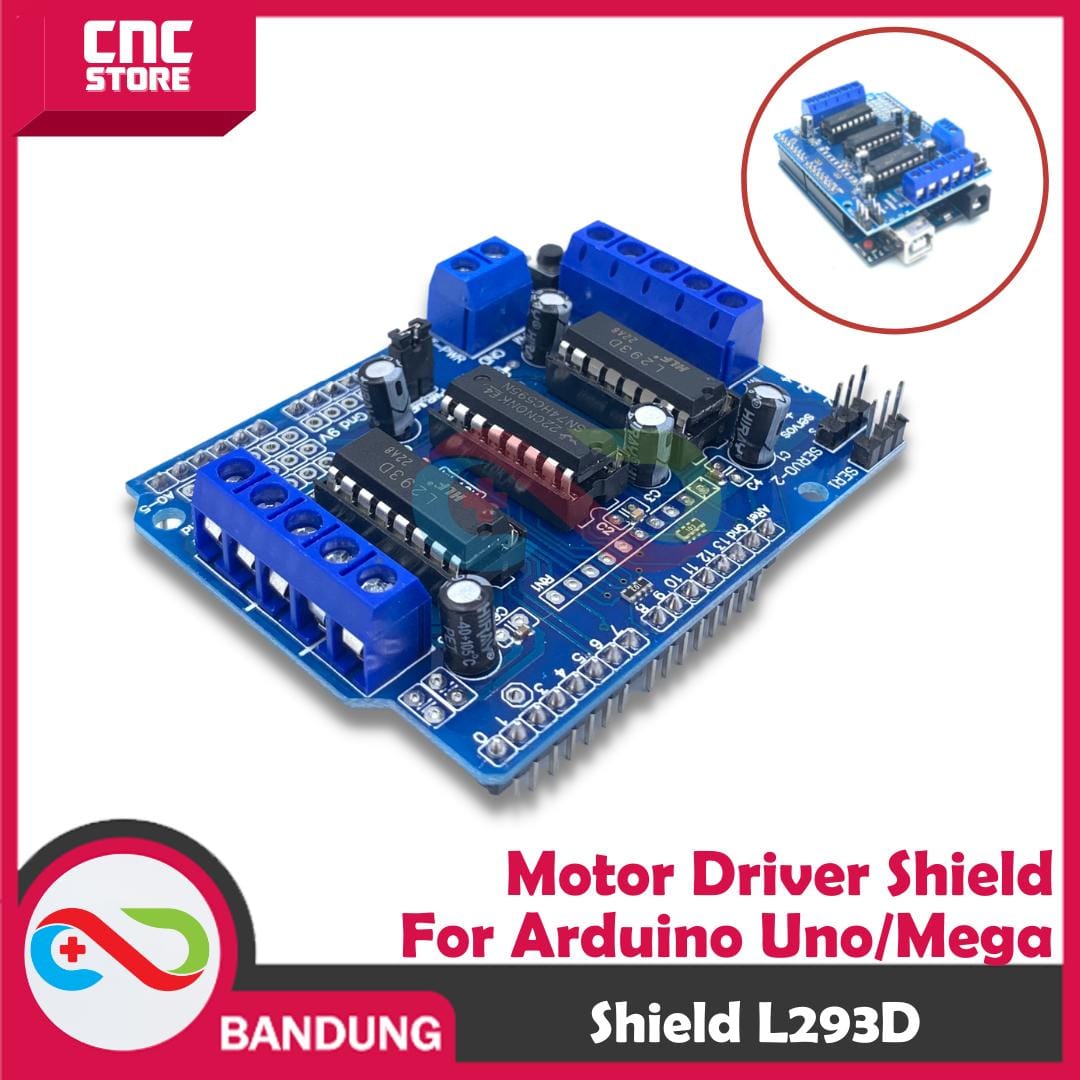

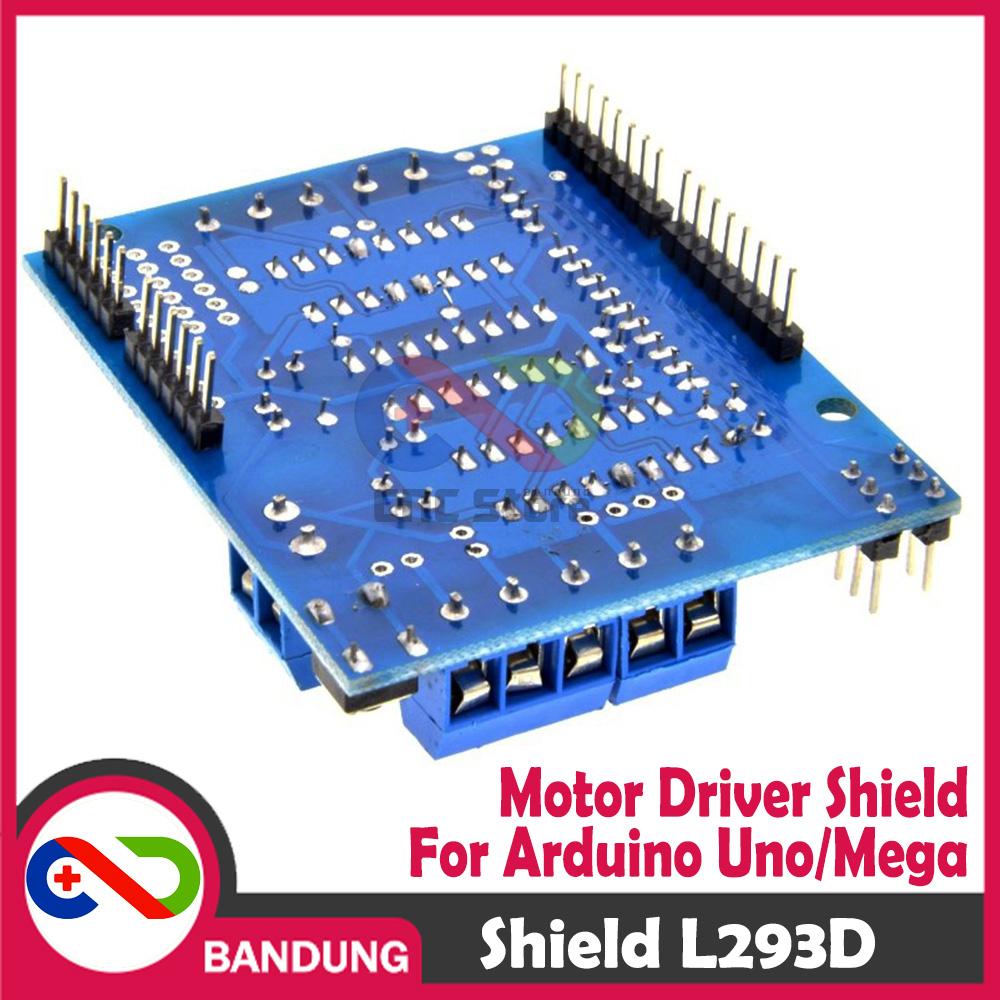

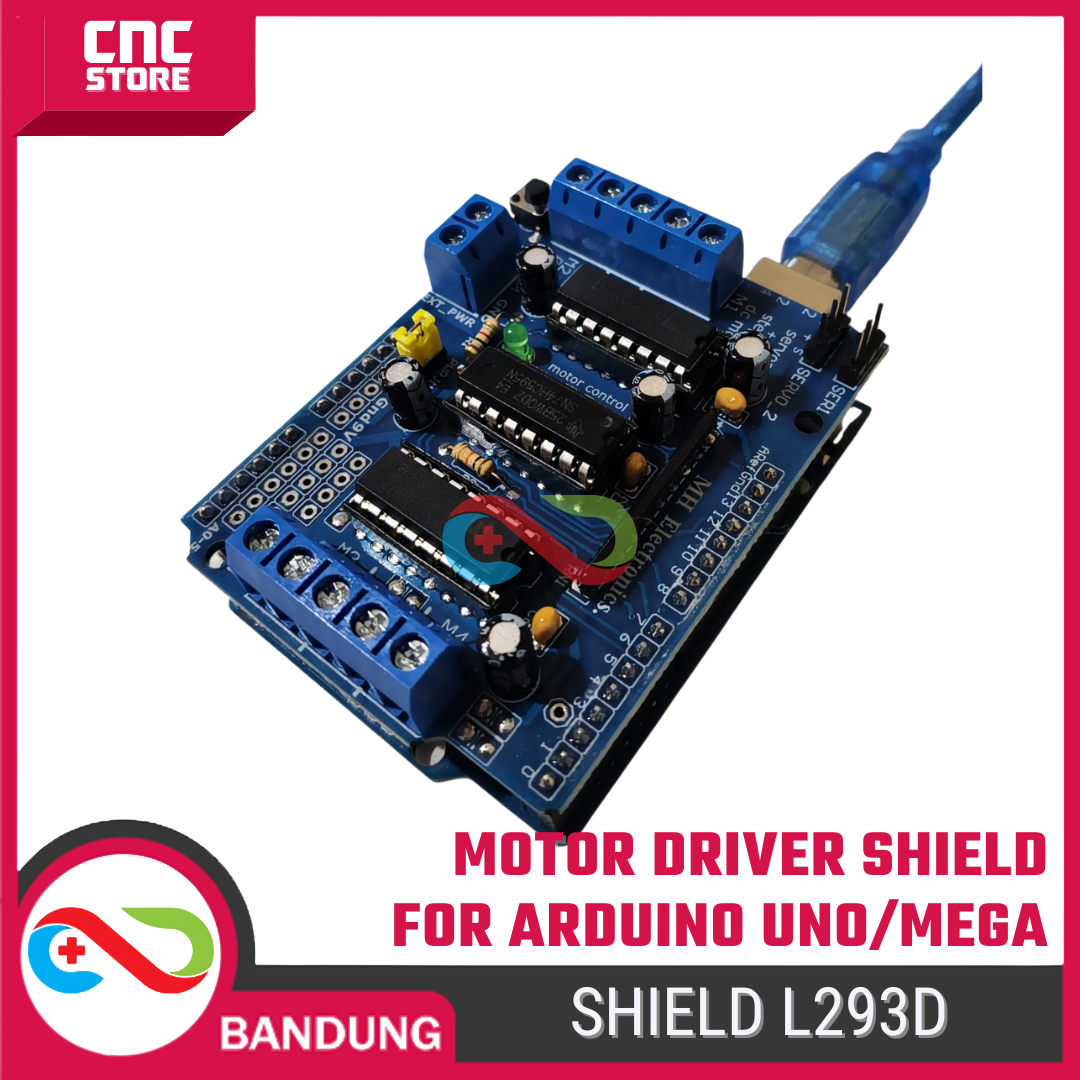

Merupakan shield yang berfungsi untuk men-drive motor. Shield ini bisa men-drive baik motor DC, stepper dan servo gan. Berikut fitur lengkapnya :
Features:
– Brand new and high quality.
– L293D is a monolithic integrated, high voltage, high current, 4-channel driver.
– Basically this means using this chip you can use DC motors and power supplies of up to 10 Volts, thats some pretty big motors and the chip can supply a maximum current of 600mA per channel, the L293D chip is also whats known as a type of H-Bridge.
– The H-Bridge is typically an electrical circuit that enables a voltage to be applied across a load in either direction to an output, e.g. motor.
– 2 interface for 5V Servo connected to the Arduino’s high-resolution dedicated timer – no jitter.

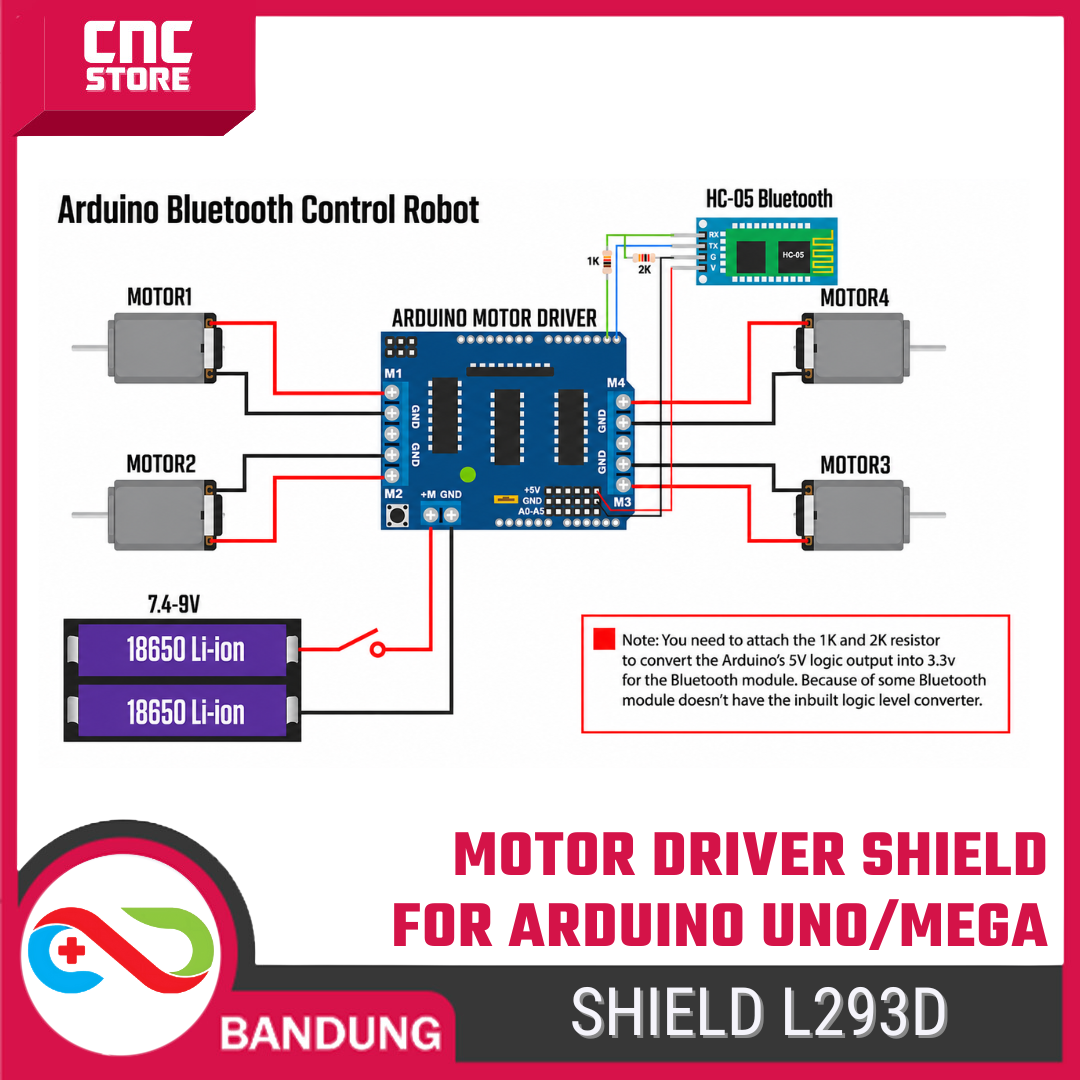

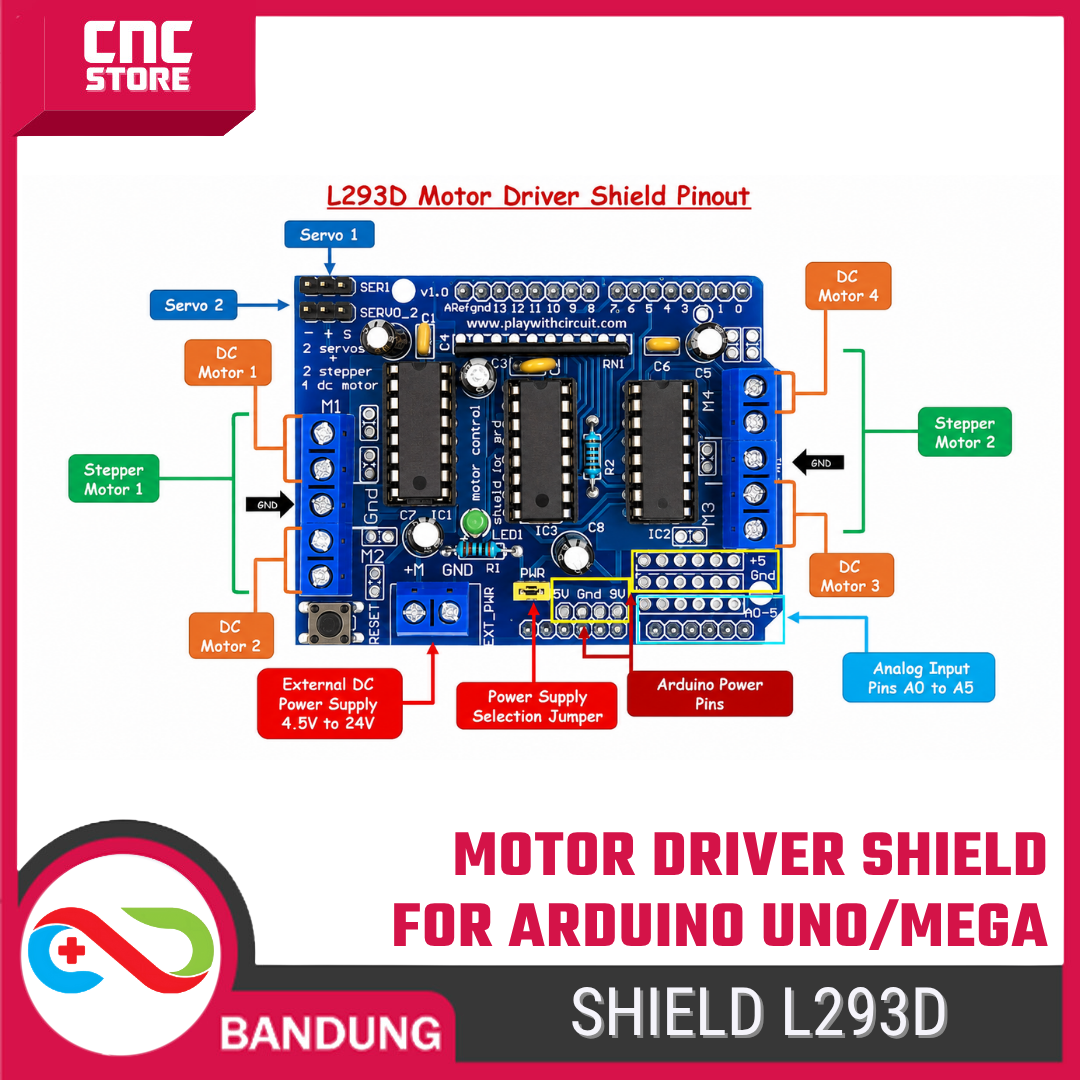

– Can drive 4 DC motors or 2 stepper motors or 2 Servo.
– Up to 4 bi-directional DC motors with individual 8-bit speed selection.
– Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil or interleaved stepping.
– 4 H-Bridges: per bridge provides 0.6A (1.2A peak current) with thermal protection, can run motors on 4.5V to 10V DC.
– Pull down resistors keep motors disabled during power-up.
– reset button.
– 2 external terminal power interface, for seperate logic/motor supplies.
– Tested compatible for Arduino Mega, Diecimila & Duemilanove.
– Size:6.8cm x 5.5cm x 2cm – 2.68inch x 2.17inch x 0.79inch.
Silahkan di order gan !!!
Paket:

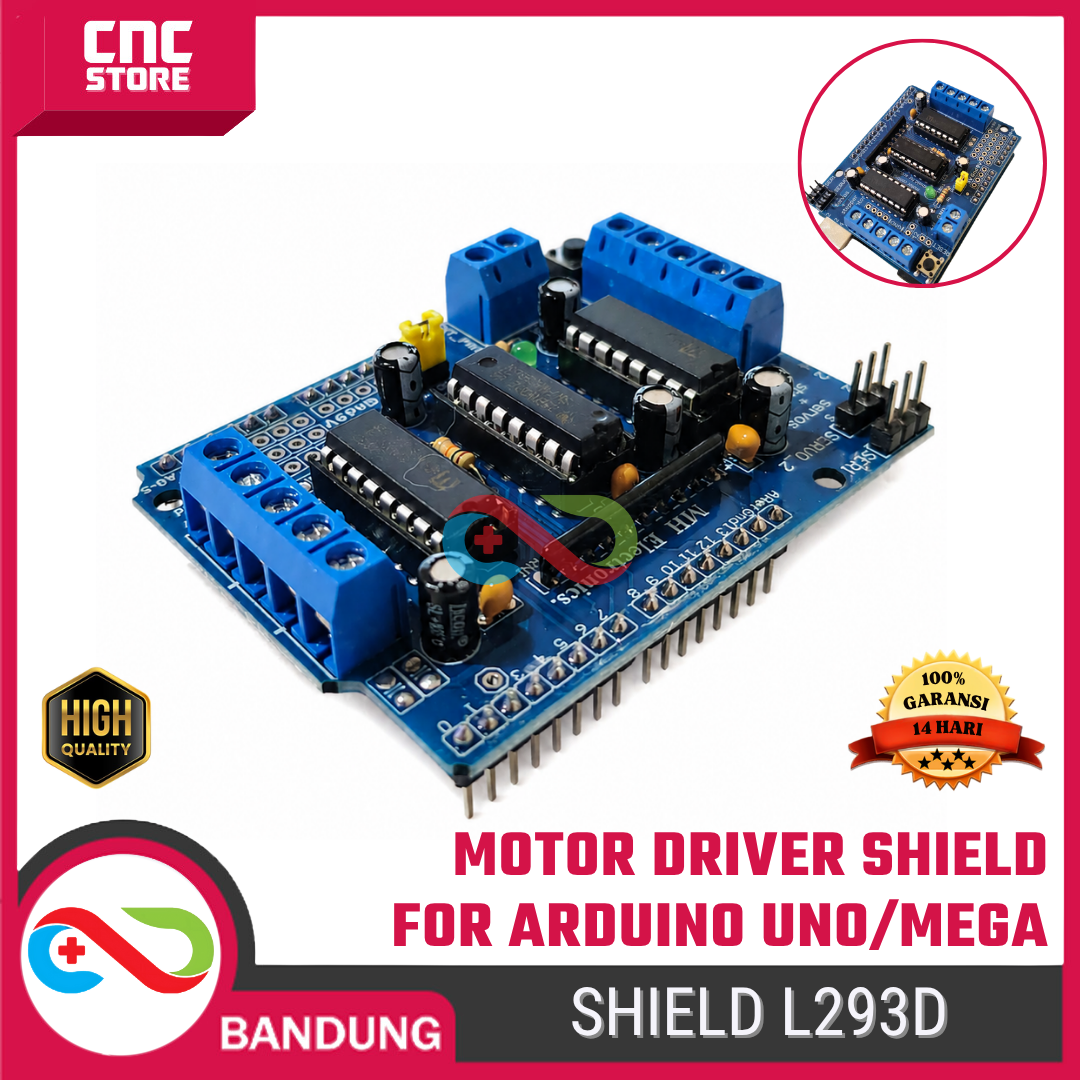

– 1x L293 L293D MOTOR DRIVER SHIELD FOR ARDUINO MEGA UNO NANO
UNTUK HARGA GROSIR CHAT US ^^
