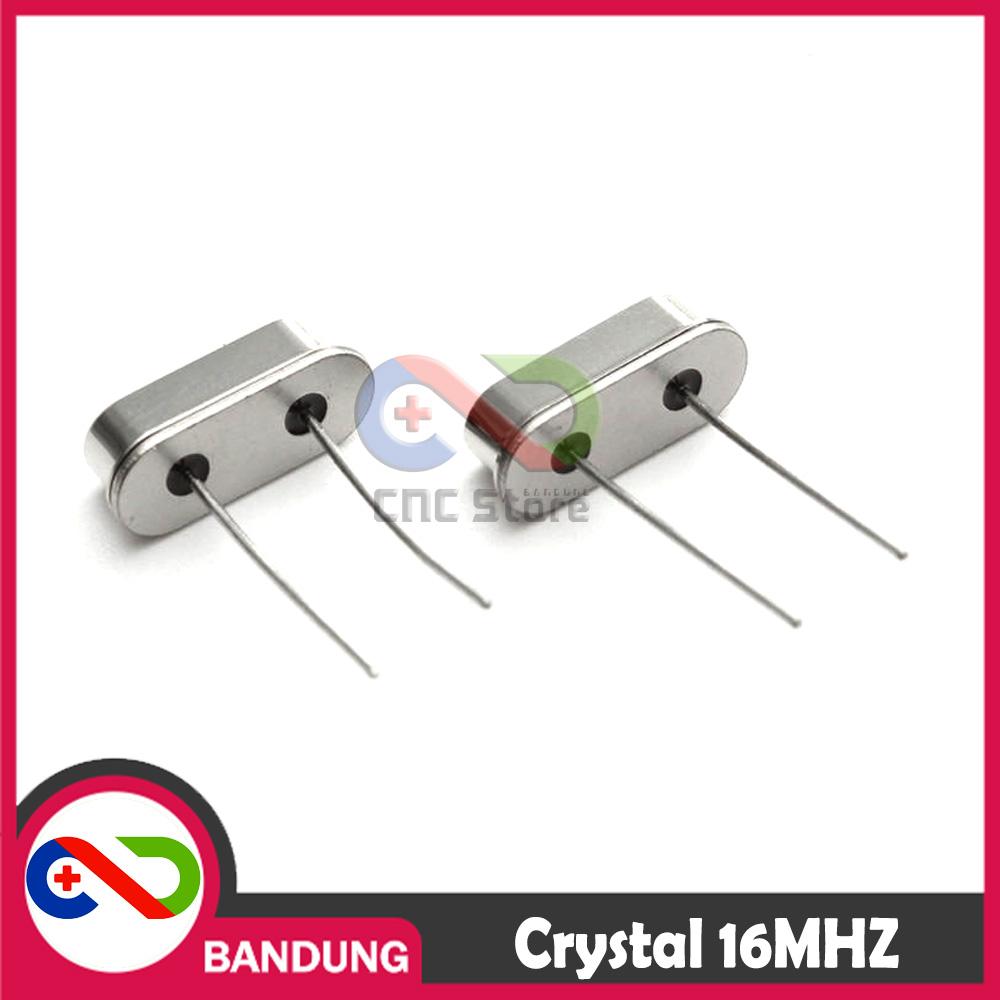

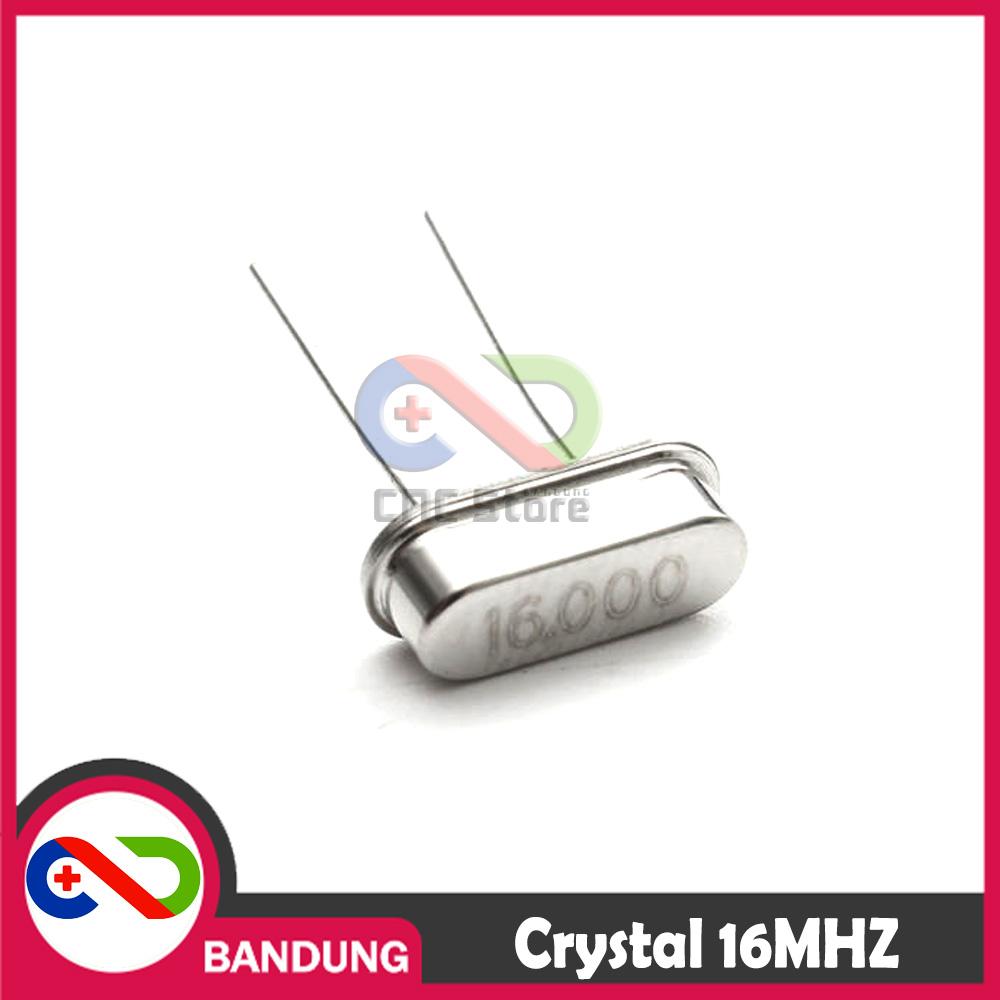

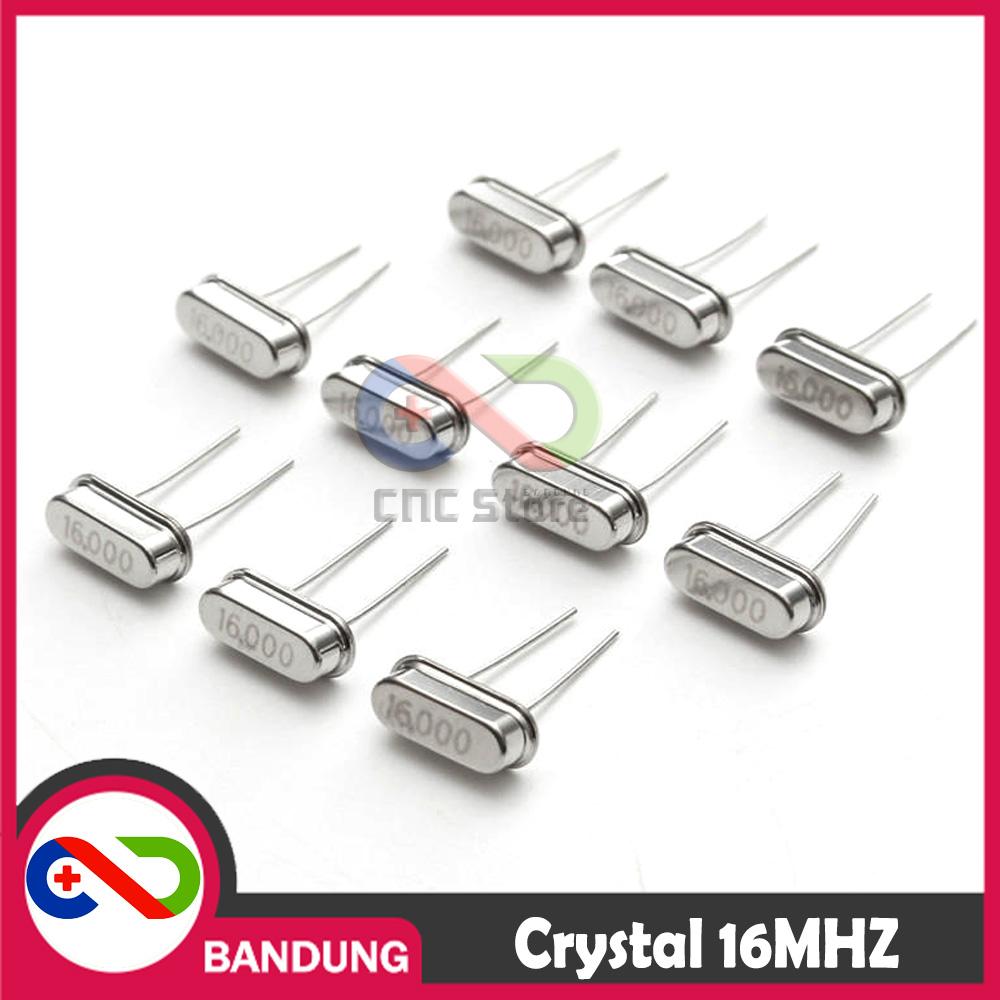

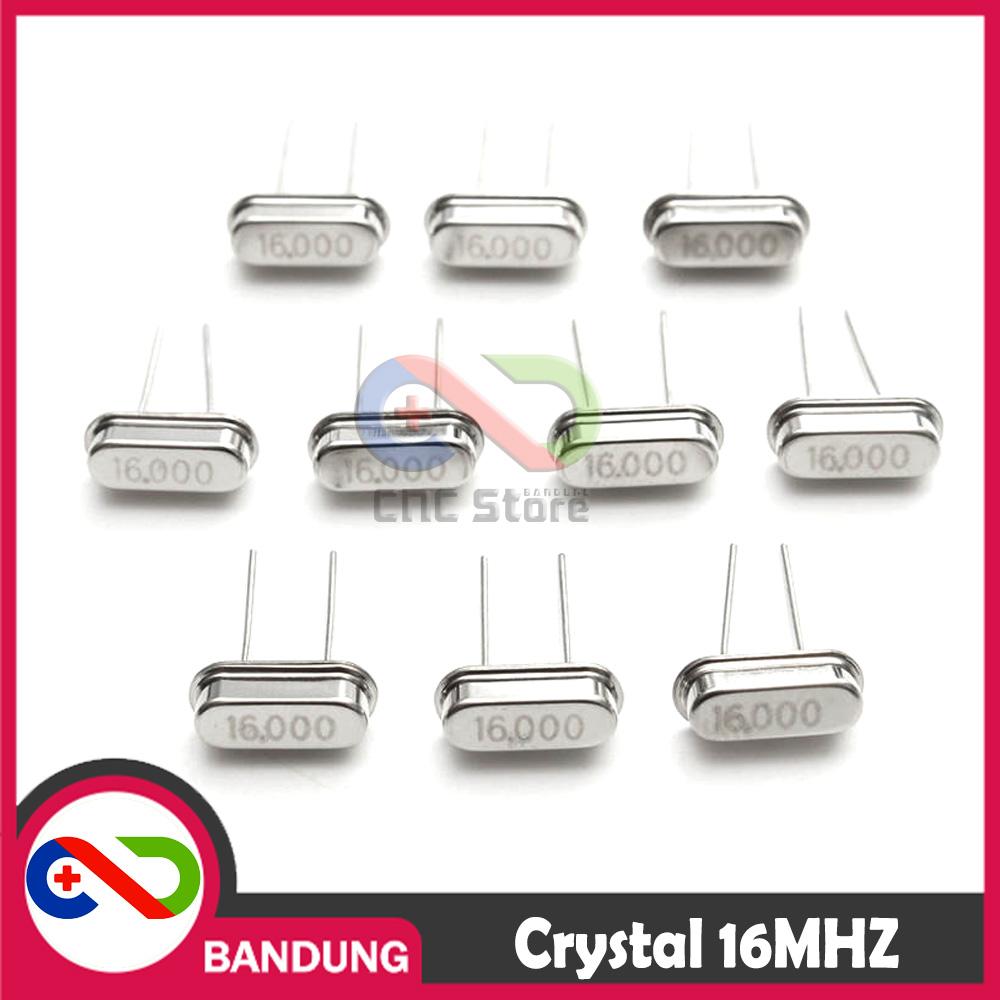

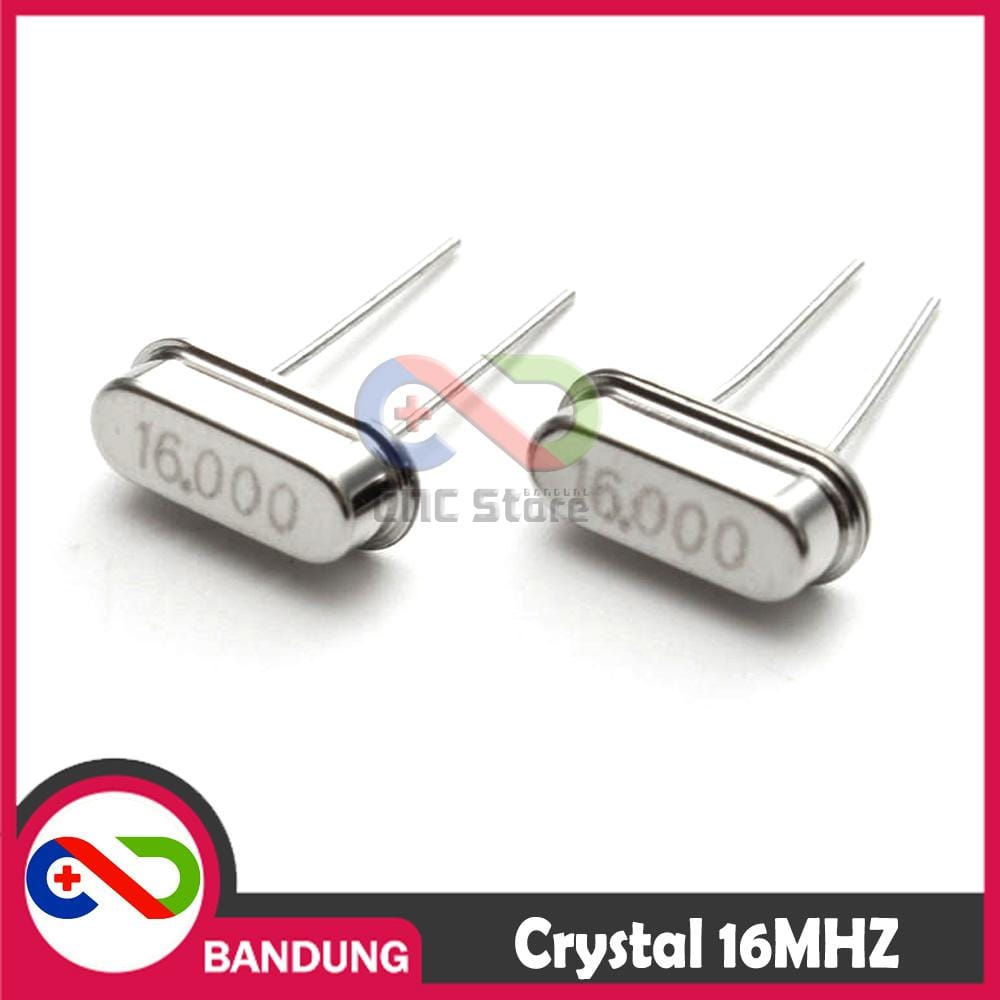

CRYSTAL XTAL OSCILLATOR OSILATOR 16MHZ DIP HC-49S

PAS-0005
========

Deskripsi:
===============================
Crytal yang ngasi pulsa kenceng 16MHz. Sesuai kitab datasheet, crystal ini sering dipake untuk arduino uno/ATmega328 dalam packaging HC-49S.

Yokkk di ORDER !!!! :D

Specifications :
===============================
– Frequency : 16 MHz
– Package / Case : HC-49/S
– Load Capacitance: 20 pF
– Tolerance : 50 PPM
– Frequency Stability : 100 PPM
– Operating Temperature Range : 0 C to + 70 C
– ESR : 50 Ohms
– Lead Spacing: 4.88 mm
– Length: 11.18 mm
– Width: 4.65 mm
– Mounting Style: Through Hole
– Type: Low Profile HC49/S Leaded Crystal

Paket :
===============================
– 1x CRYSTAL XTAL OSCILLATOR OSILATOR 16MHZ DIP HC-49S

UNTUK HARGA GROSIR CHAT US ^^
