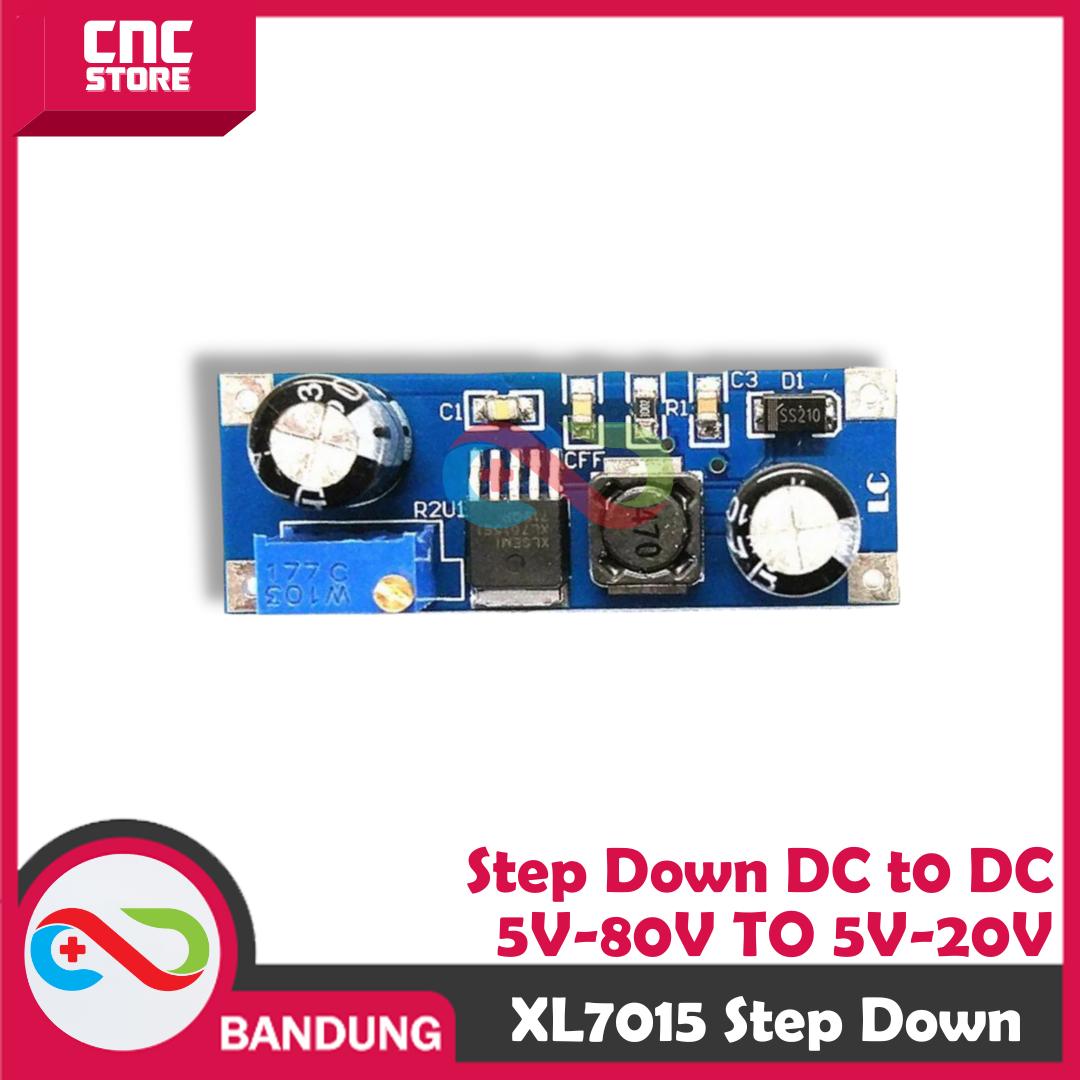

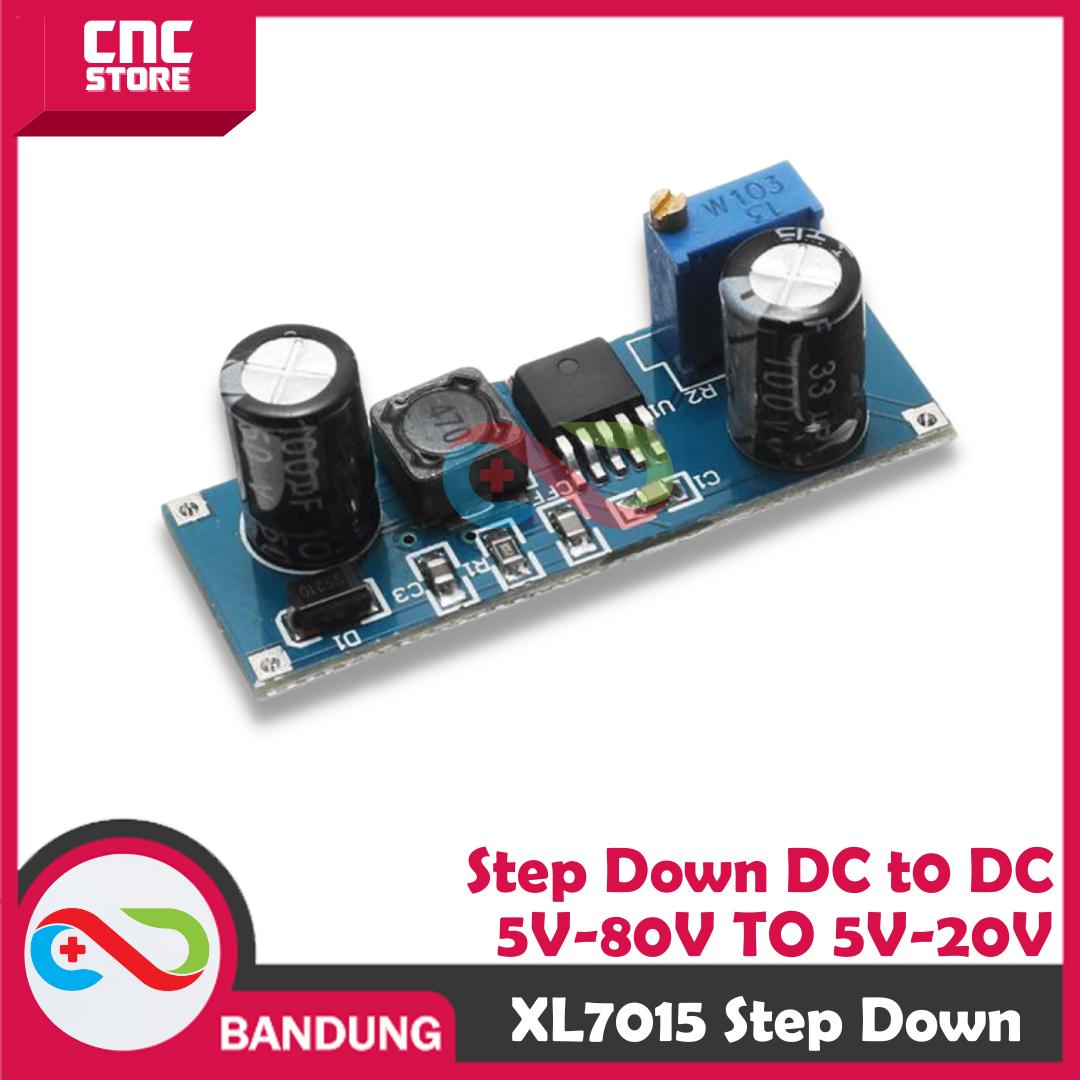

XL7015 Step Down DC DC Adjustable 5V-80V TO 5V-20V 0.8A

Rp11.000

241 in stock

Spesifikasi

Informasi Spesifikasi

Weight 9 g
Dimensions 44 × 16 × 14,9 mm

Deskripsi

PSU-0124
========

Deskripsi:
=================================
Modul penurun tegangan berbasis XL7015

Bisa menerima rentang input yg tinggi dari 5 hingga 80v DC, dan dapat menurunkan
tegangan output 5 hingga 20v DC.

Memiliki proteksi (otomatis OFF):
1. Overheating protection
2. Short circuit protection
3. Overcurrent protection

**Spesifikasi:
Tegangan input: 5-80v DC
Tegangan output: 5-20v DC Adjustable
Arus output: max 0.8A

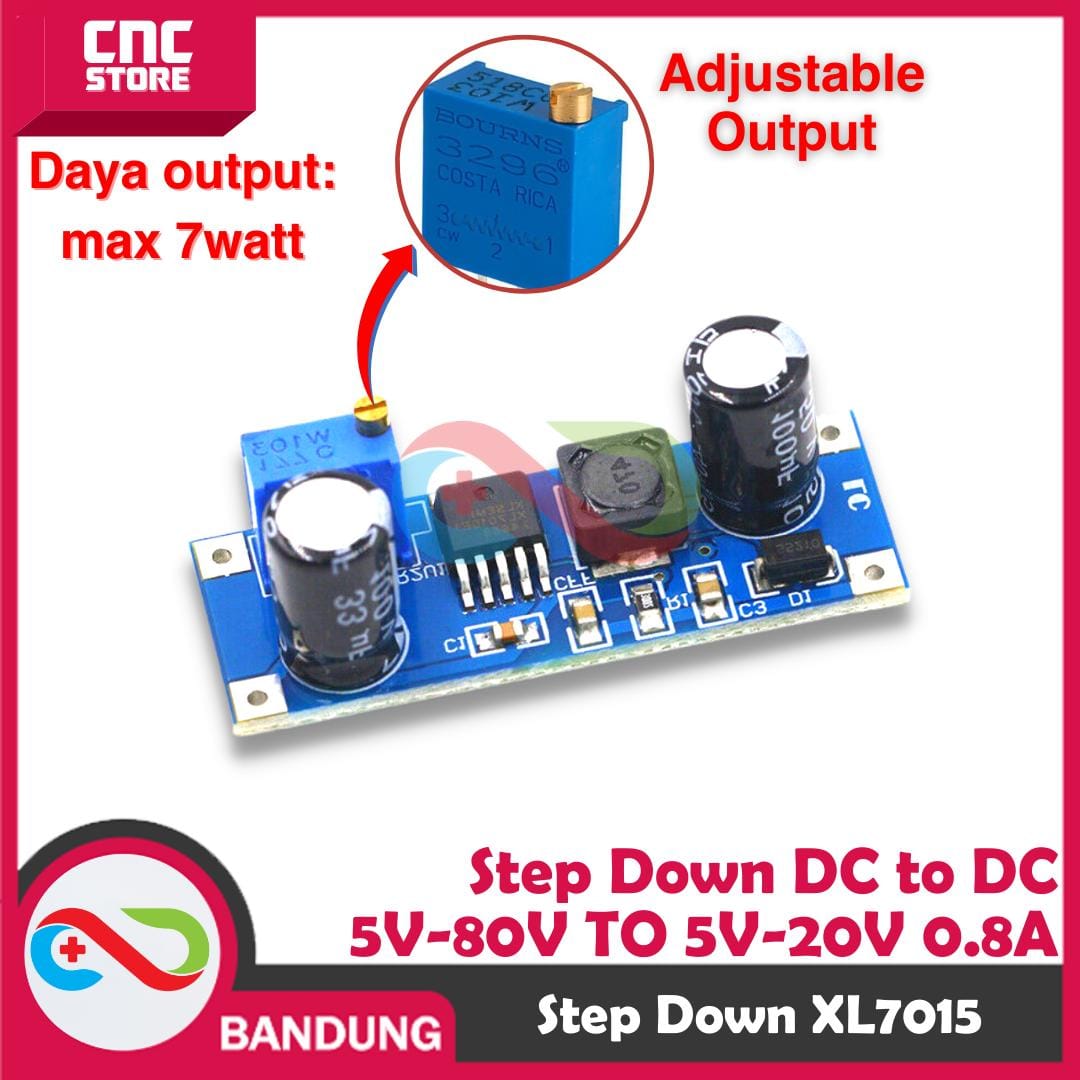

Daya output: max 7watt

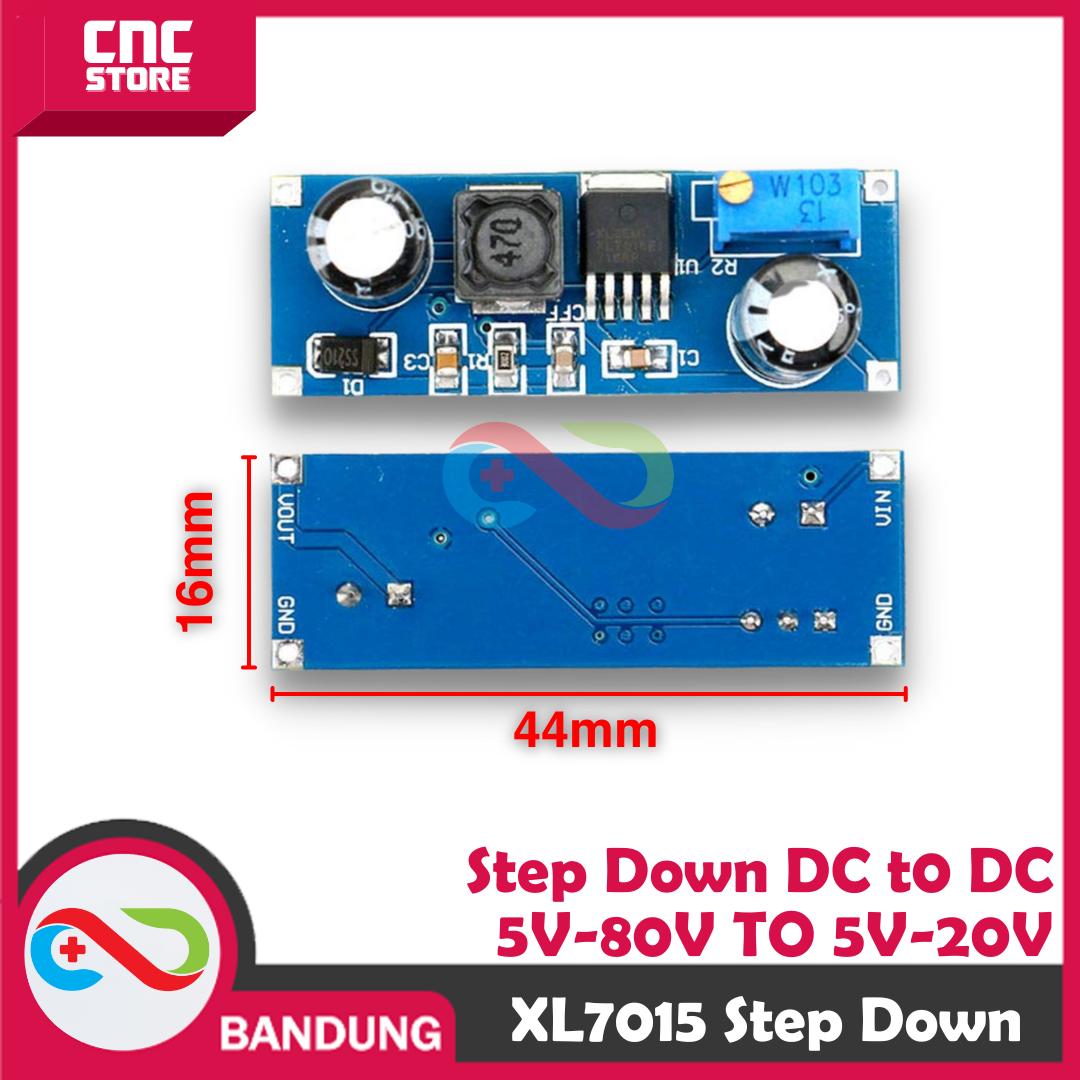

Ukuran: 44x16x15mm
Ukuran papan: 16 mm * 44 mm;

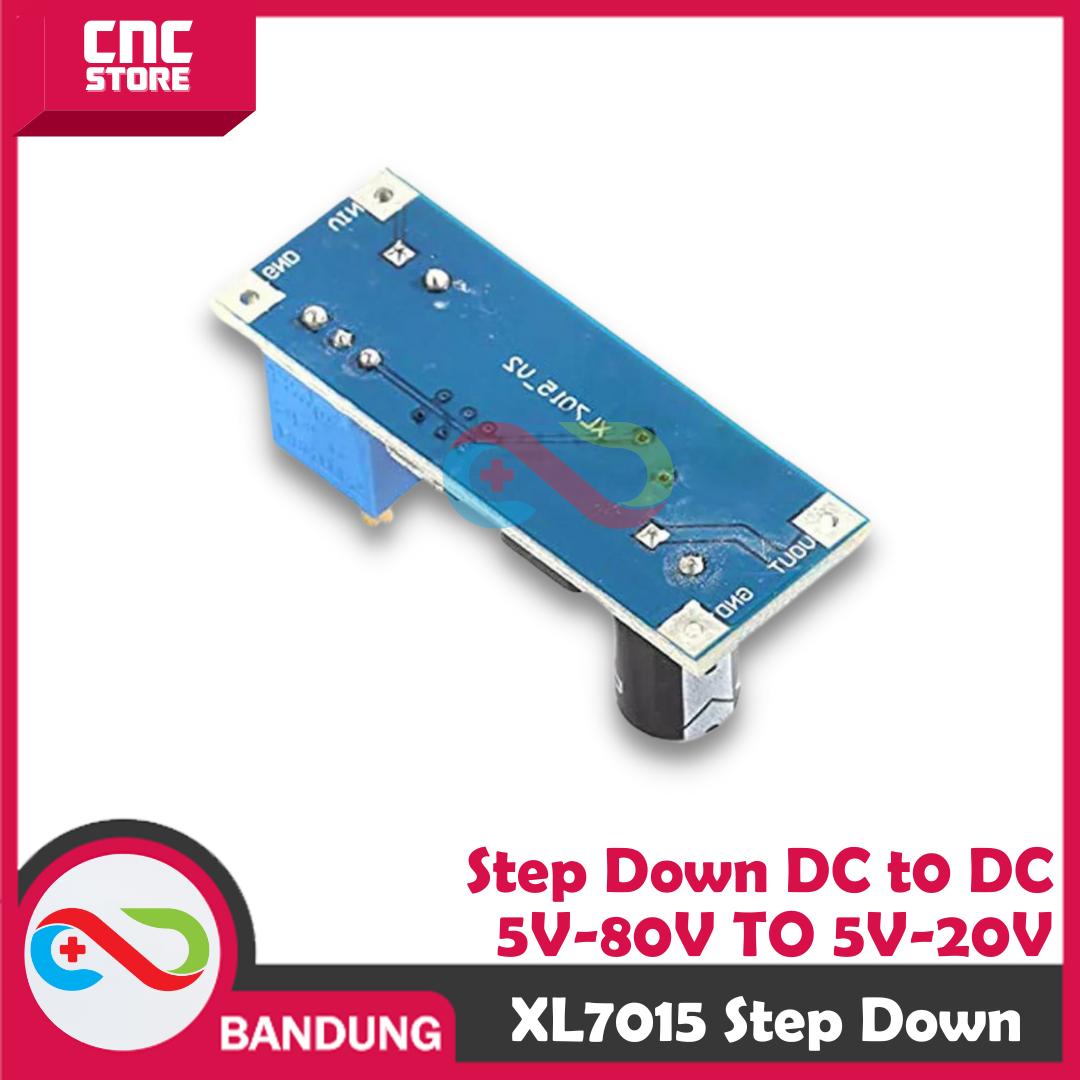

Wiring instructions
1. VIN: input voltage (5 v – 80 – v);
2. The GND: input voltage side;
3. The VOUT: output voltage (5 v – 20 v);
4. The GND: output voltage to end;

Paket :

=================================

– 1x XL7015 Step Down DC DC Adjustable 5V-80V TO 5V-20V
