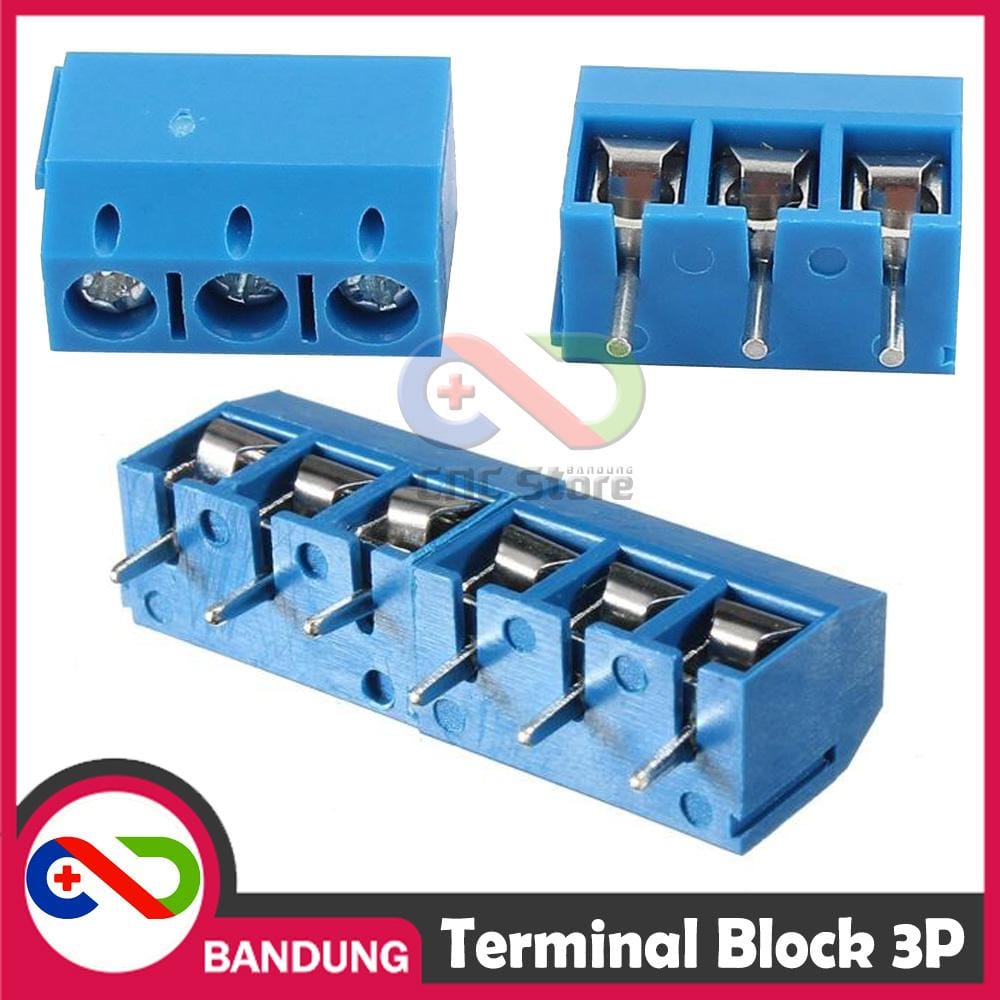

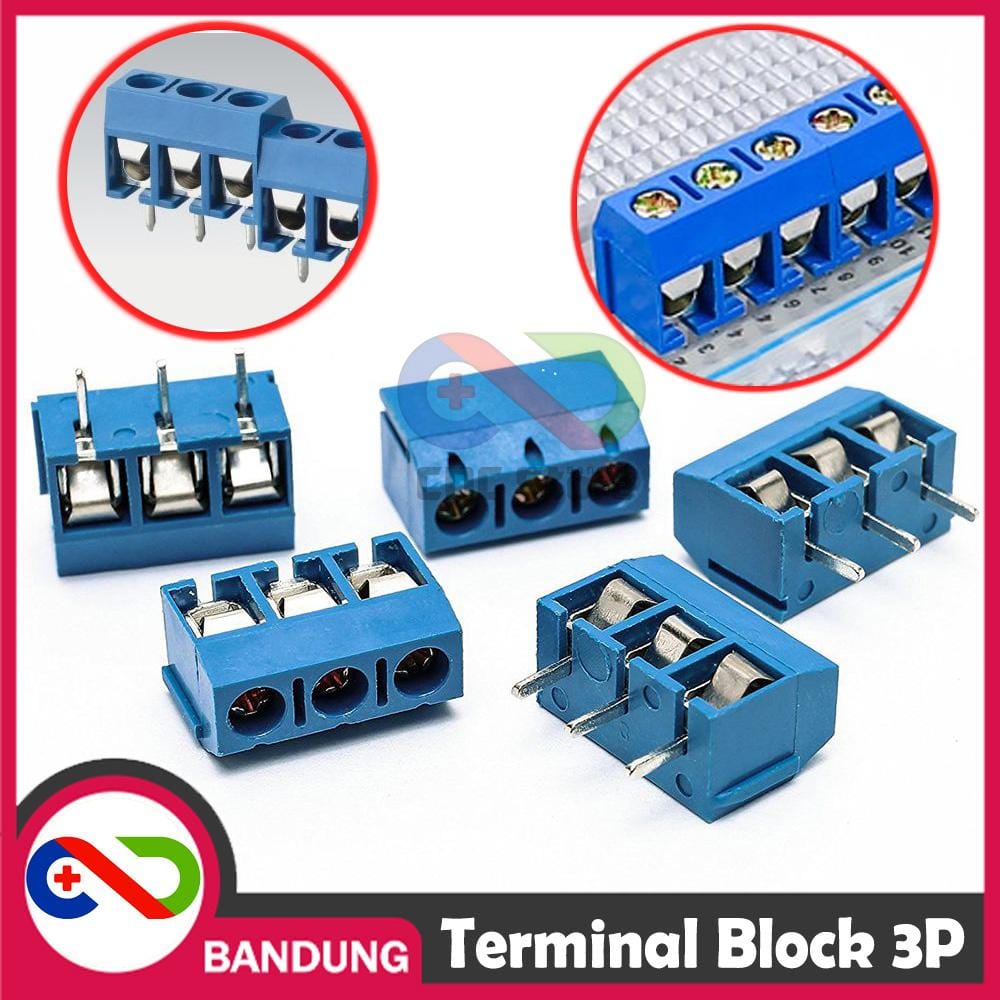

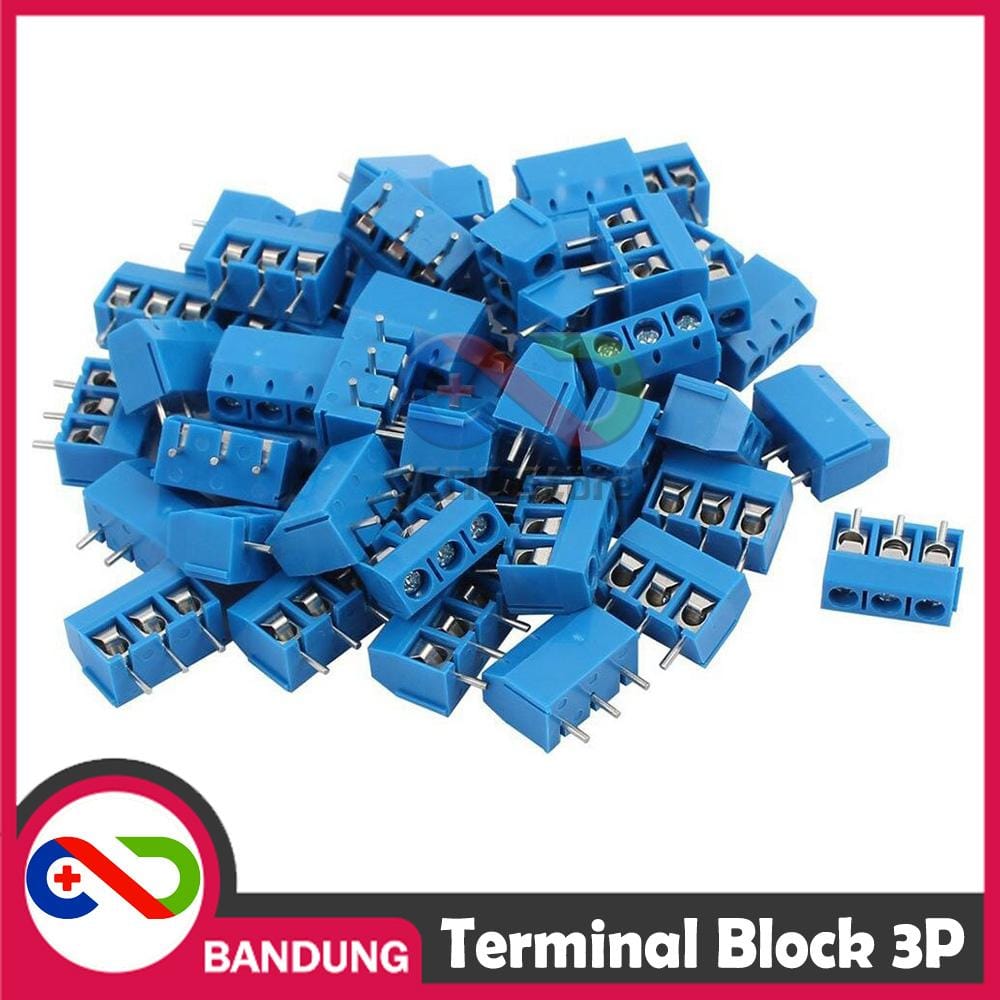

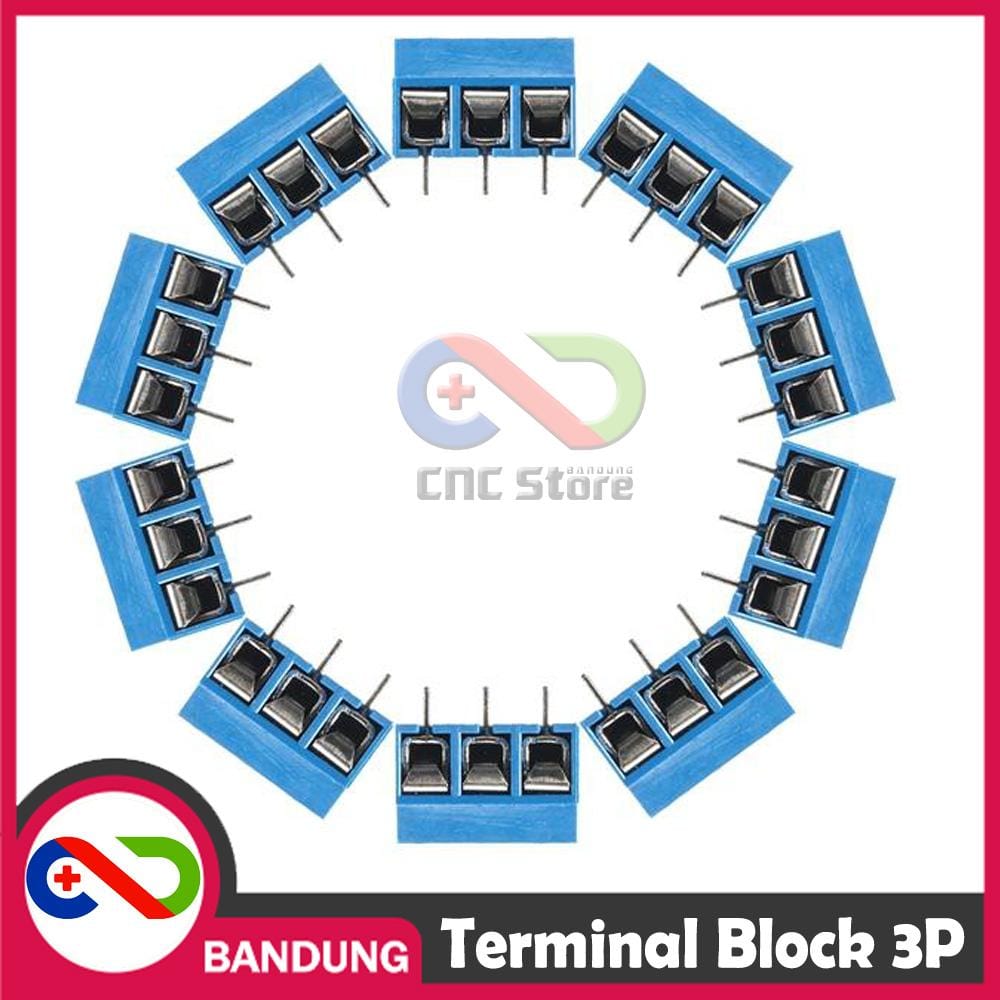

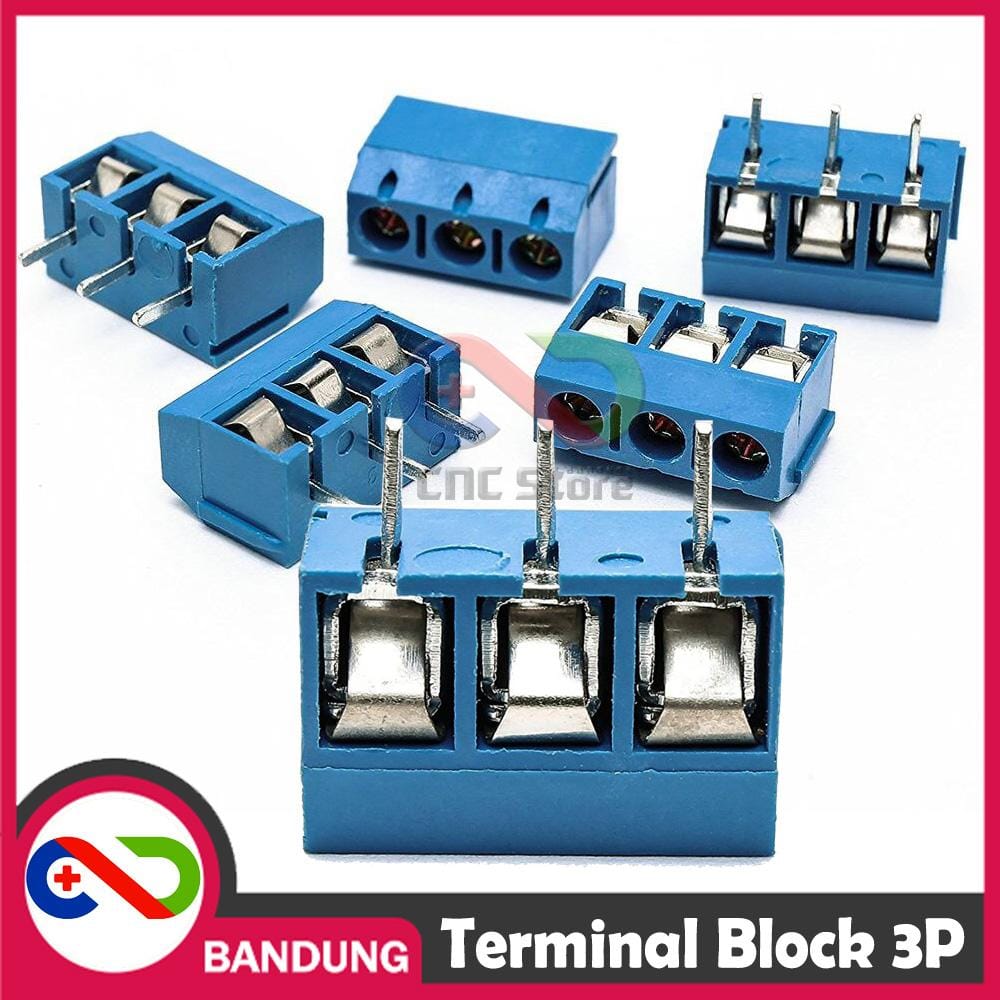

TERMINAL PCB BLOCK SCREW 3 PIN KF301-3P BLUE BIRU

CON-0014
=========

Deskripsi
==============================
Terminal PCB block 3pin. Digunakan sebagai port input atau output di PCB.

Silahkan di ORDER gan !!!! :D

Specifications :
==============================
– Type : Terminal Blocks
– Maximum Current Rating : 15A
– Contact Plating : Tin/Zinc
– Body Orientation : Straight
– Contact Material : Brass/Steel
– Housing Material : Thermoplastic
– Housing Color : Blue
– Wire Size : 14-22AWG
– Number of Contacts : 3
– Number of Rows : 1
– Maximum Voltage Rating : 300VAC
– Minimum Operating Temperature : -30C
– Maximum Operating Temperature : 105C
– Mounting : Through Hole
– Termination Method : Solderable
– Pitch : 5.08mm
– Product Depth : 9mm
– Product Height : 13mm
– Product Length : 15.94mm
– Product Type : Connector Terminal Blocks

PRODUK TERKAIT
=================
– Untuk aneka terminal PCB lain, pin header, breadboard, maupun jumper, bisa dicek di etalase ini :
https://shopee.co.id/shop/62956347/search?page=0&shopCollection=19513230

– untuk terminal PCB block yang lainnya bisa diliat disini:
https://shopee.co.id/search?keyword=terminal%20block&shop=62956347

Paket :
==============================
– 1x TERMINAL PCB BLOCK SCREW 3 PIN KF301-3P BLUE BIRU

UNTUK HARGA GROSIR CHAT US ^^
