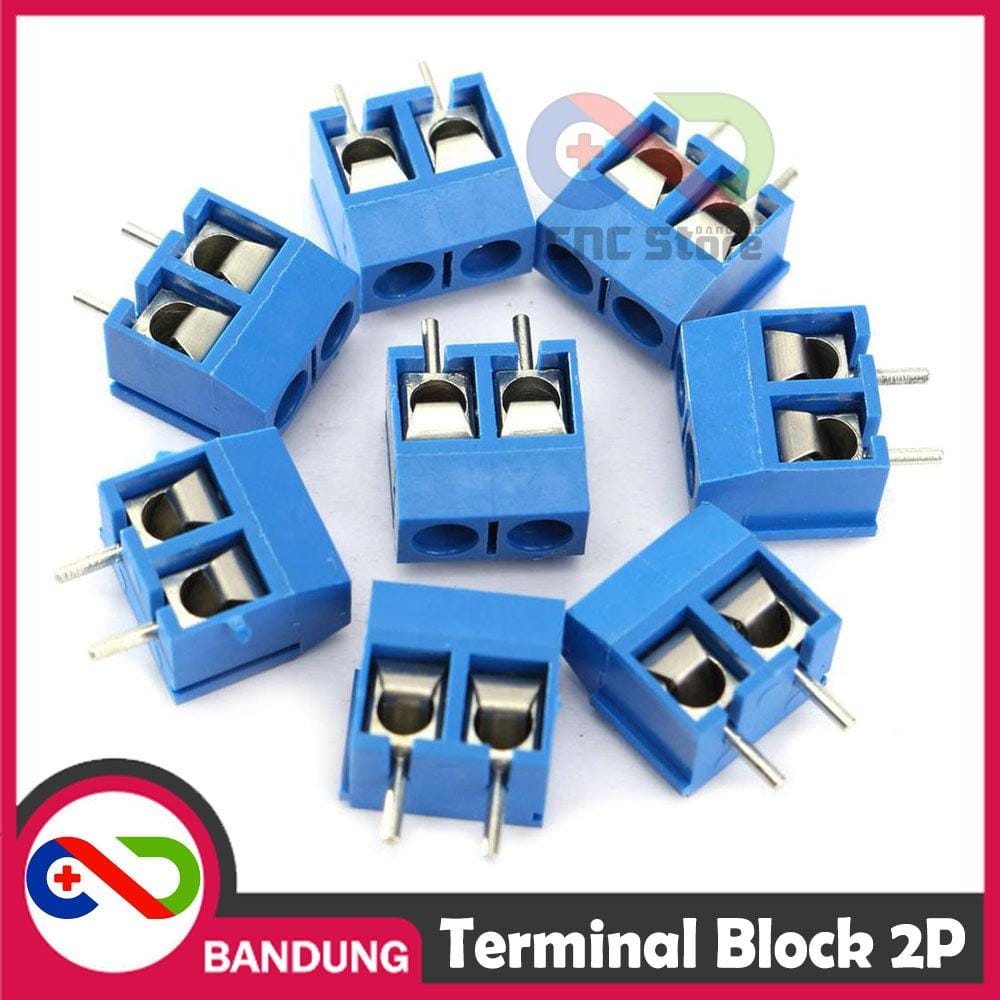

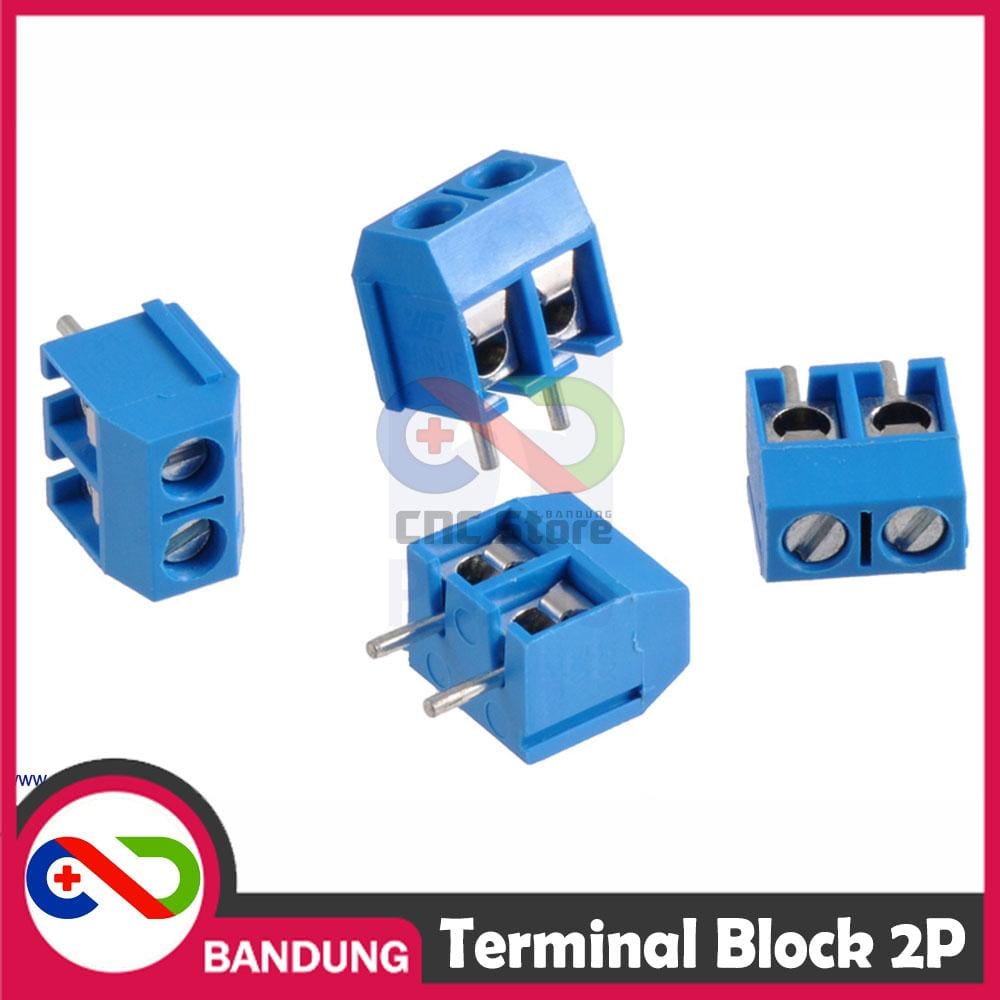

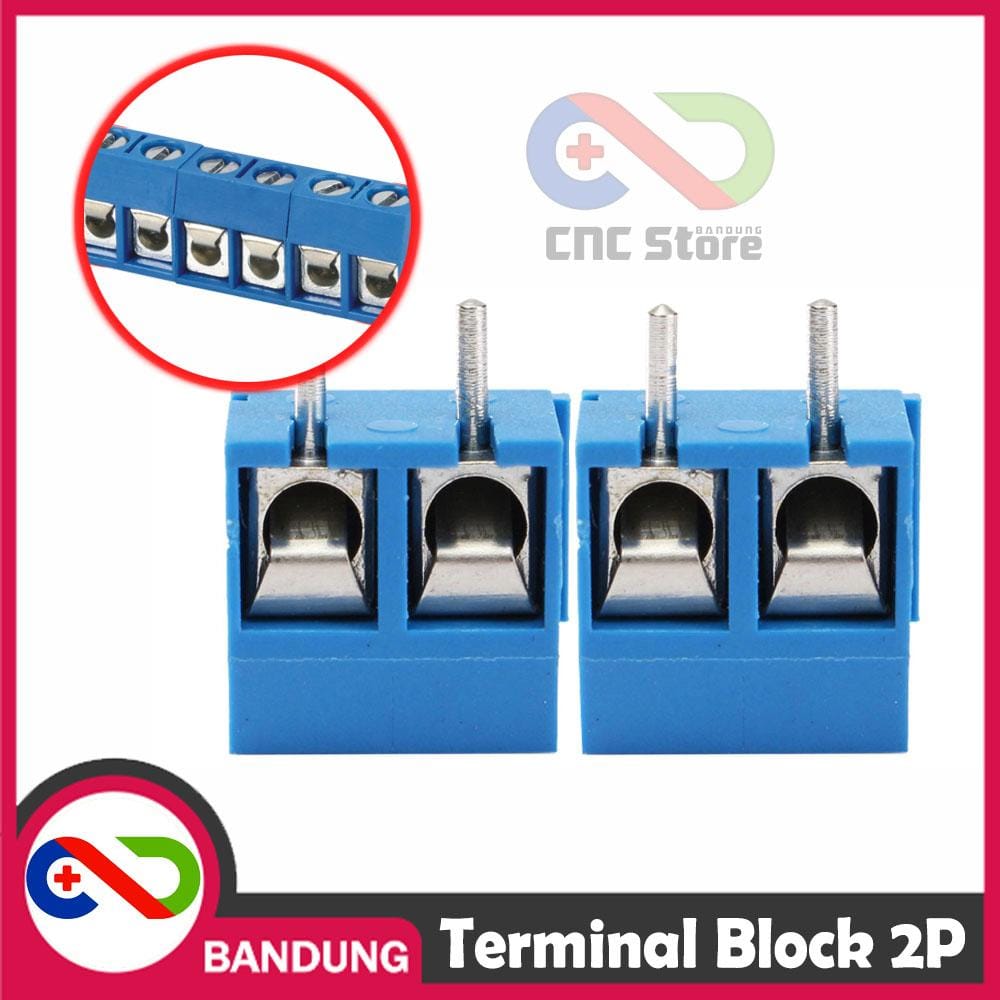

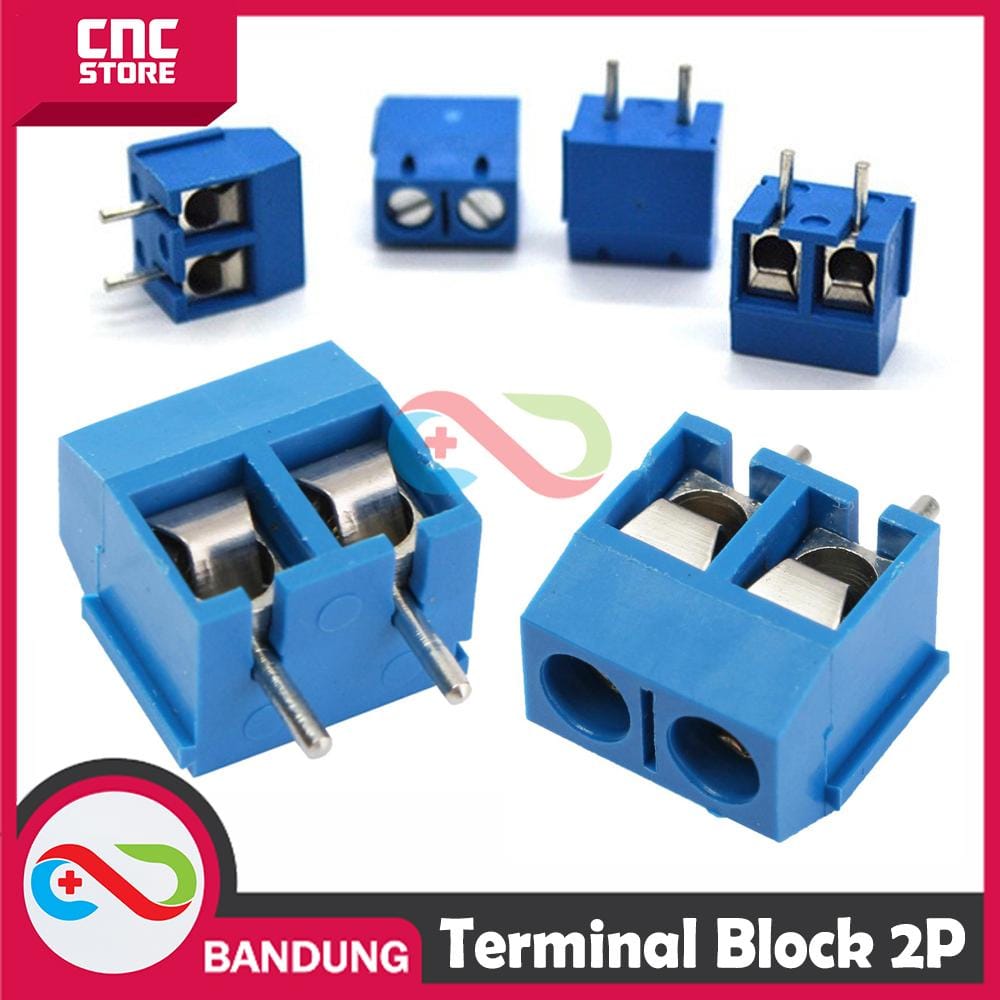

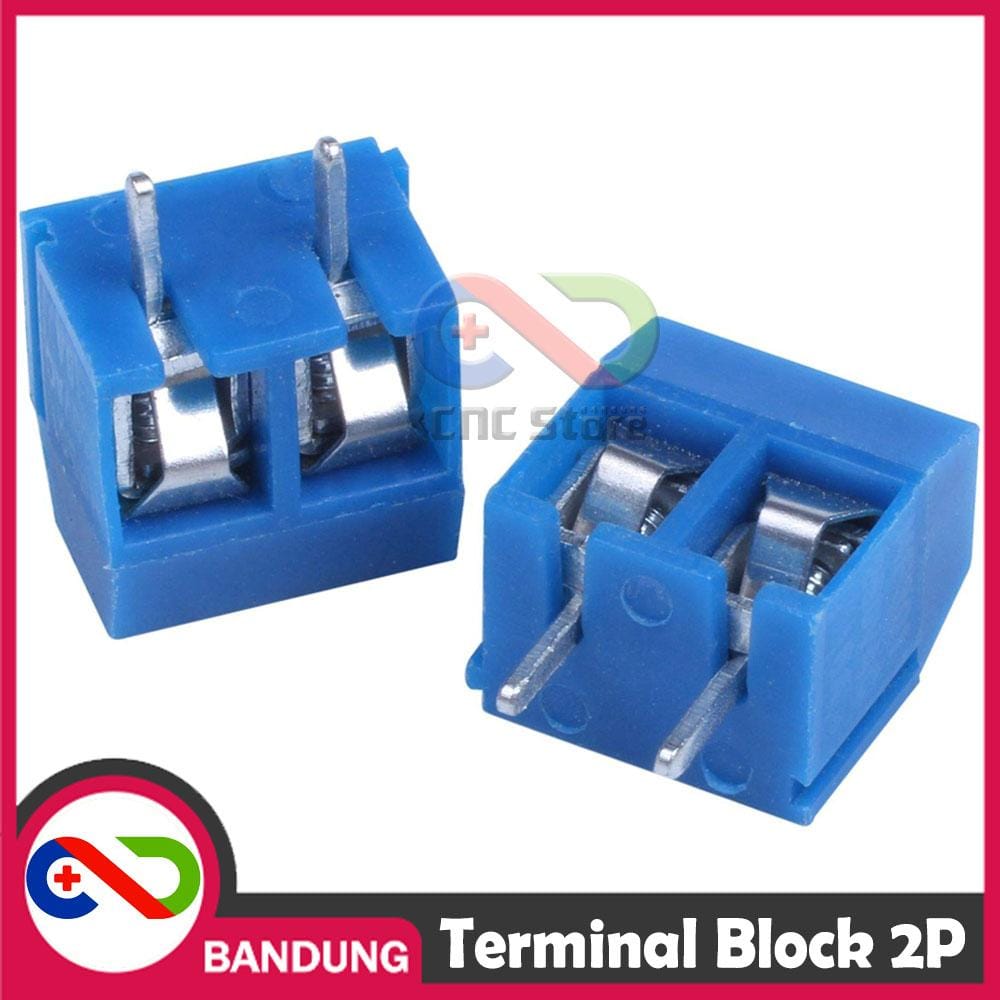

TERMINAL PCB BLOCK SCREW 2 PIN KF301-2P BLUE BIRU

CON-0008
=========

Deskripsi:
=================================
Terminal PCB block 2 pin. Digunakan sebagai port input atau output di PCB. Terminal ini sangat sering sekali digunakan, karena memudahkan kita untuk memasang dan membuka I/O tanpa perlu soket ataupun menyoldernya

Silahkan di ORDER gan !!!! :D

Spesifications:
=================================
– Type : Terminal Blocks
– Maximum Current Rating : 15A
– Contact Plating : Tin/Zinc
– Body Orientation : Straight
– Contact Material : Brass/Steel
– Housing Material : Thermoplastic
– Housing Color : Blue
– Wire Size : 14-22AWG
– Number of Contacts : 2
– Number of Rows : 1
– Maximum Voltage Rating : 300VAC
– Minimum Operating Temperature : -30C
– Maximum Operating Temperature : 105C
– Mounting : Through Hole
– Termination Method : Solderable
– Pitch : 5.08mm
– Product Depth : 9mm
– Product Height : 13mm
– Product Length : 10.86mm
– Product Type : Connector Terminal Blocks

PRODUK TERKAIT
=================
– Untuk aneka terminal PCB lain, pin header, breadboard, maupun jumper, bisa dicek di etalase ini :
https://shopee.co.id/shop/62956347/search?page=0&shopCollection=19513230

Paket :
=================================
– 1x TERMINAL PCB BLOCK SCREW 2 PIN KF301-2P BLUE BIRU

UNTUK HARGA GROSIR CHAT US ^^
