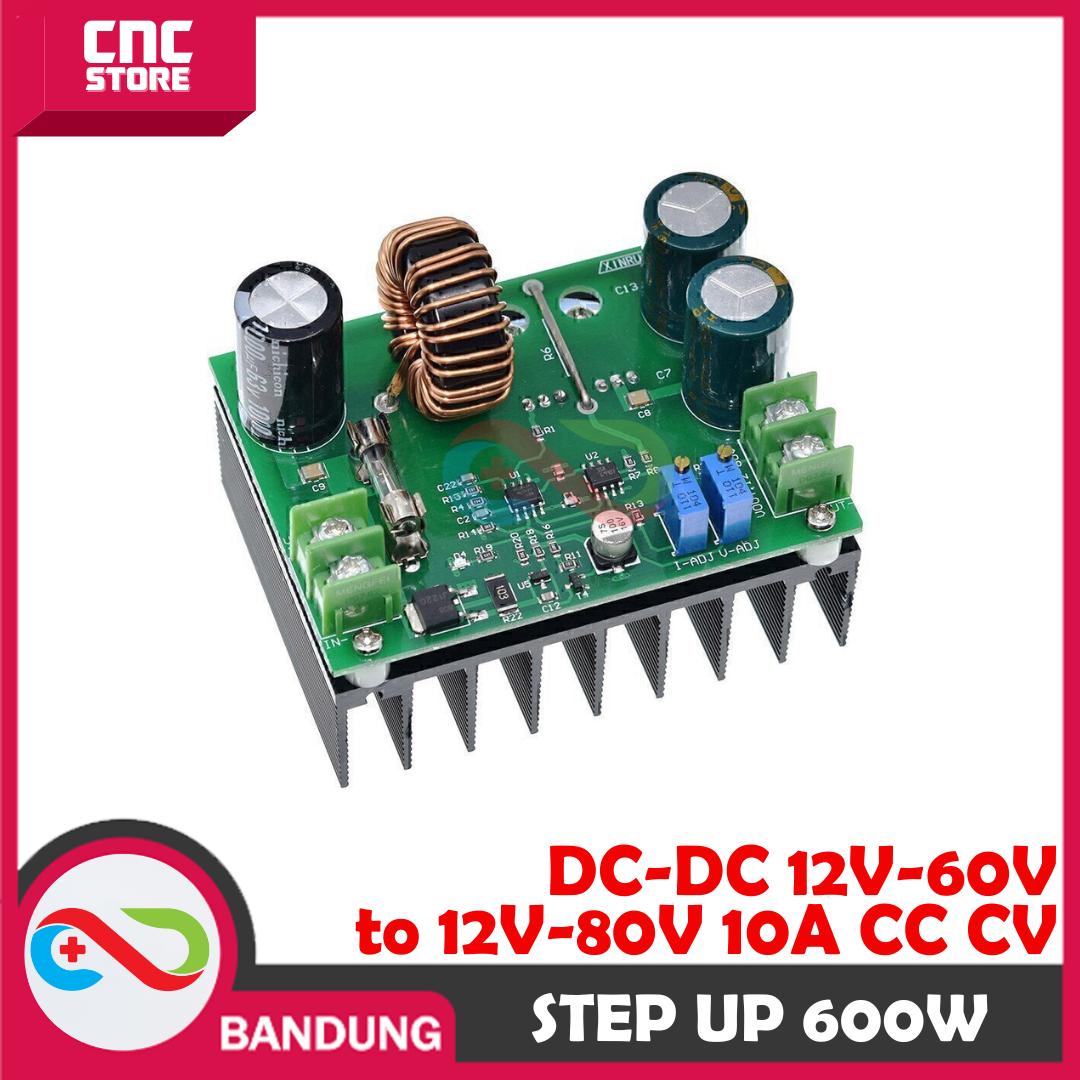

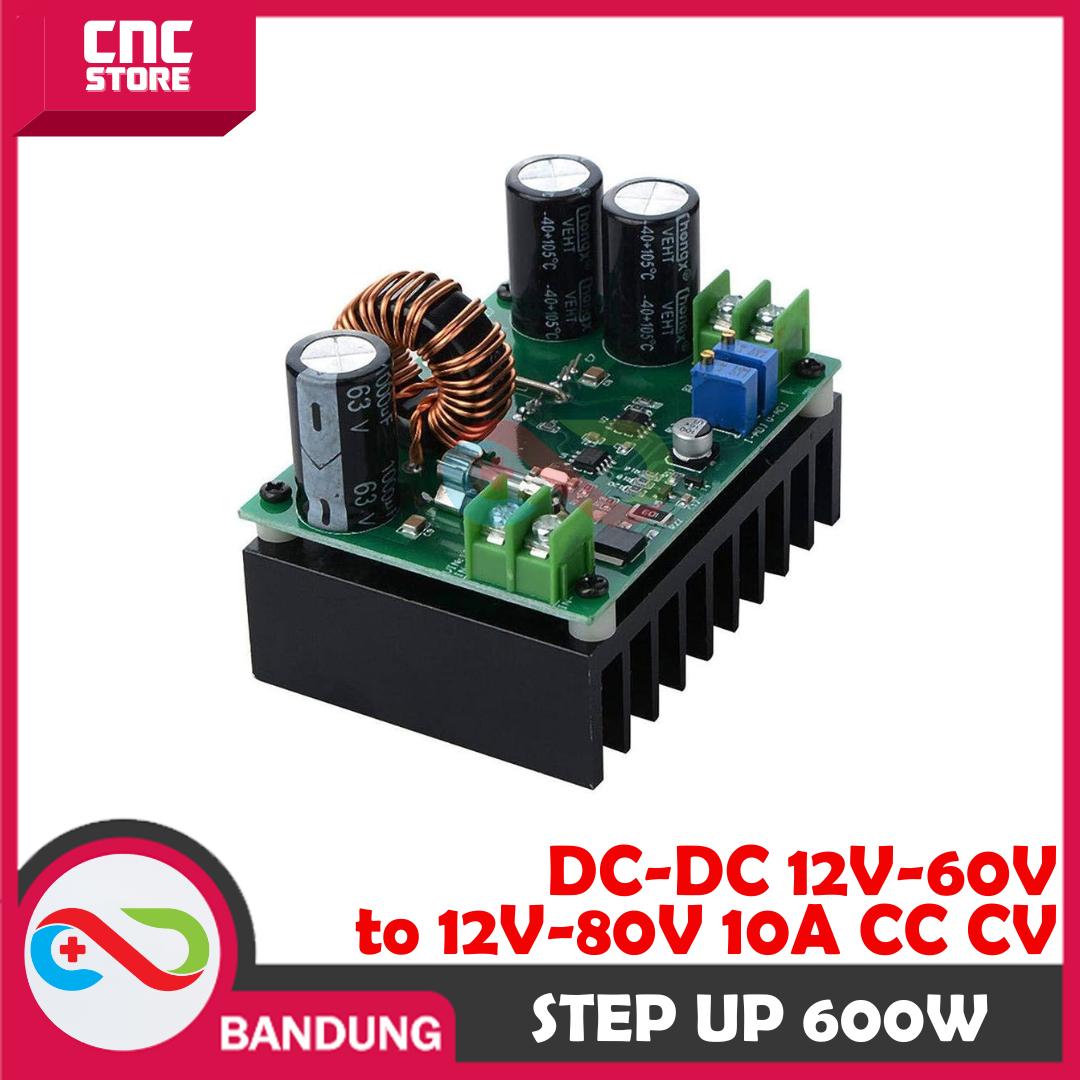

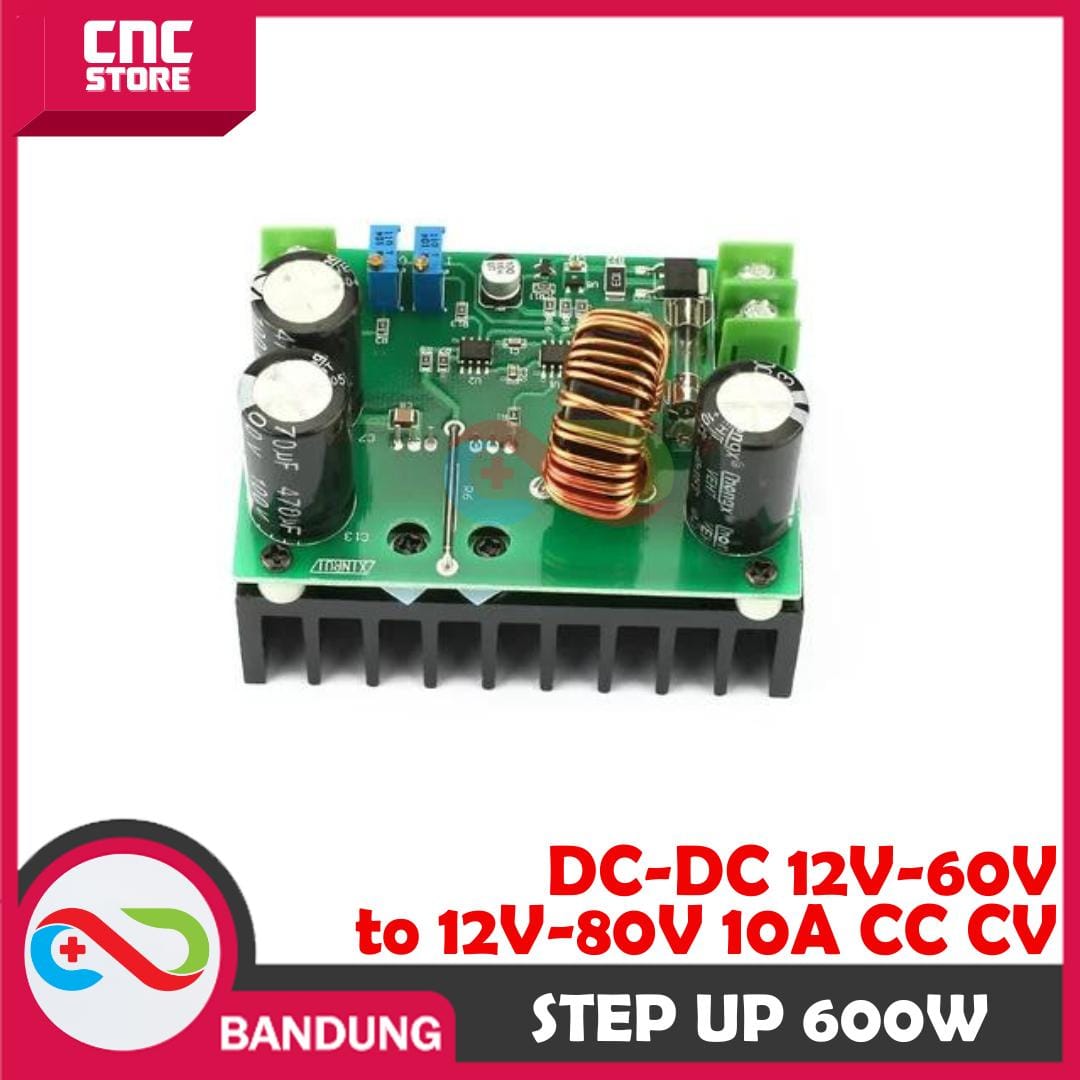

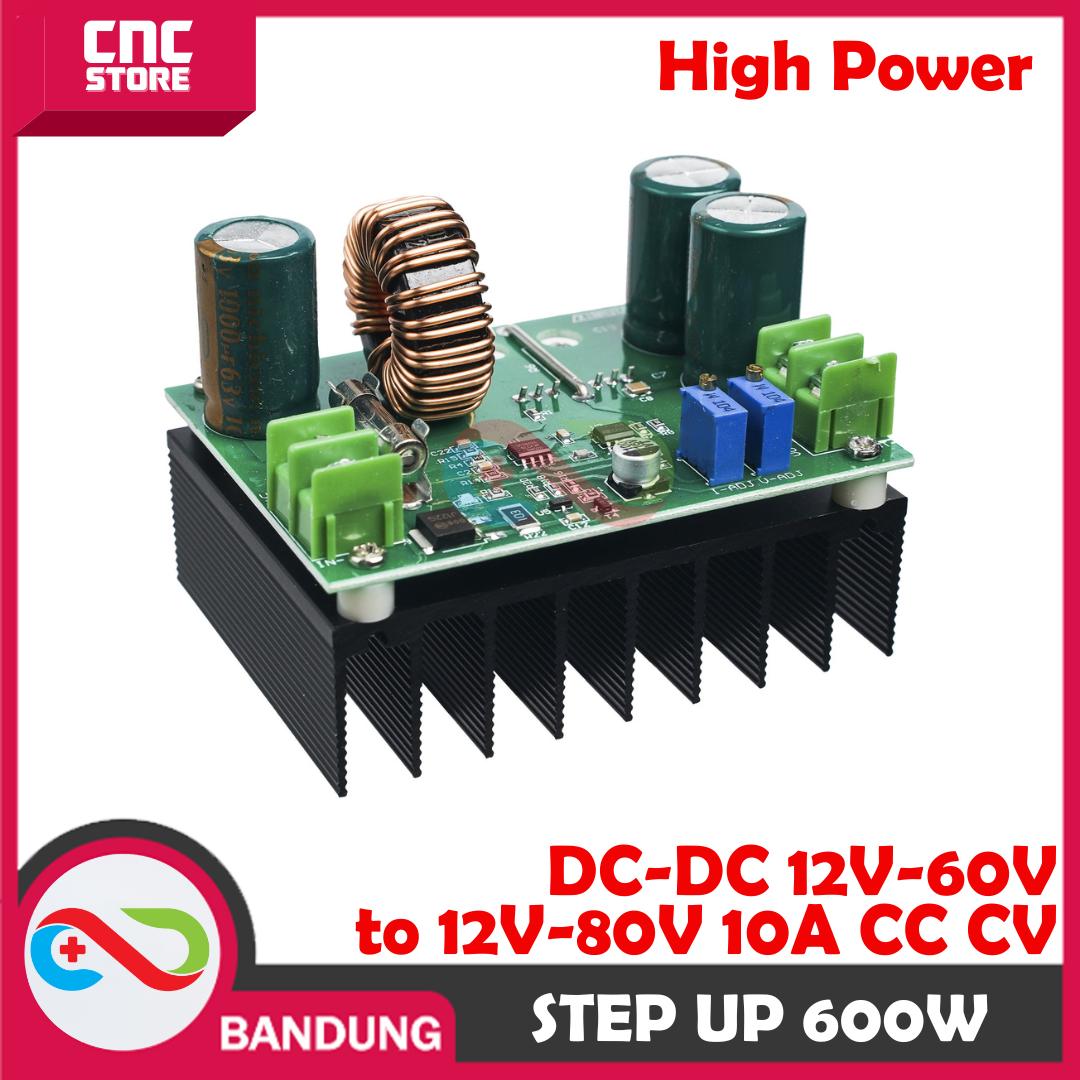

STEP UP 600W 10-60V TO 12-80V CC-CV 10A BOOST CONVERTER HIGH POWER

PSU-0143

Deskripsi:

Module ini adalah module Step Up, yaitu module yang berfungsi menaikan tegangan
DC to DC yang dapat kita atur tegangannya sesuai kebutuhan kita, Module Step up
ini memiliki fitur CC dan CV yang akan menstabilkan/constant di tegangan/arus
yang sudah di atur.
?

Spesifikasi:
Frequency: 150KHz

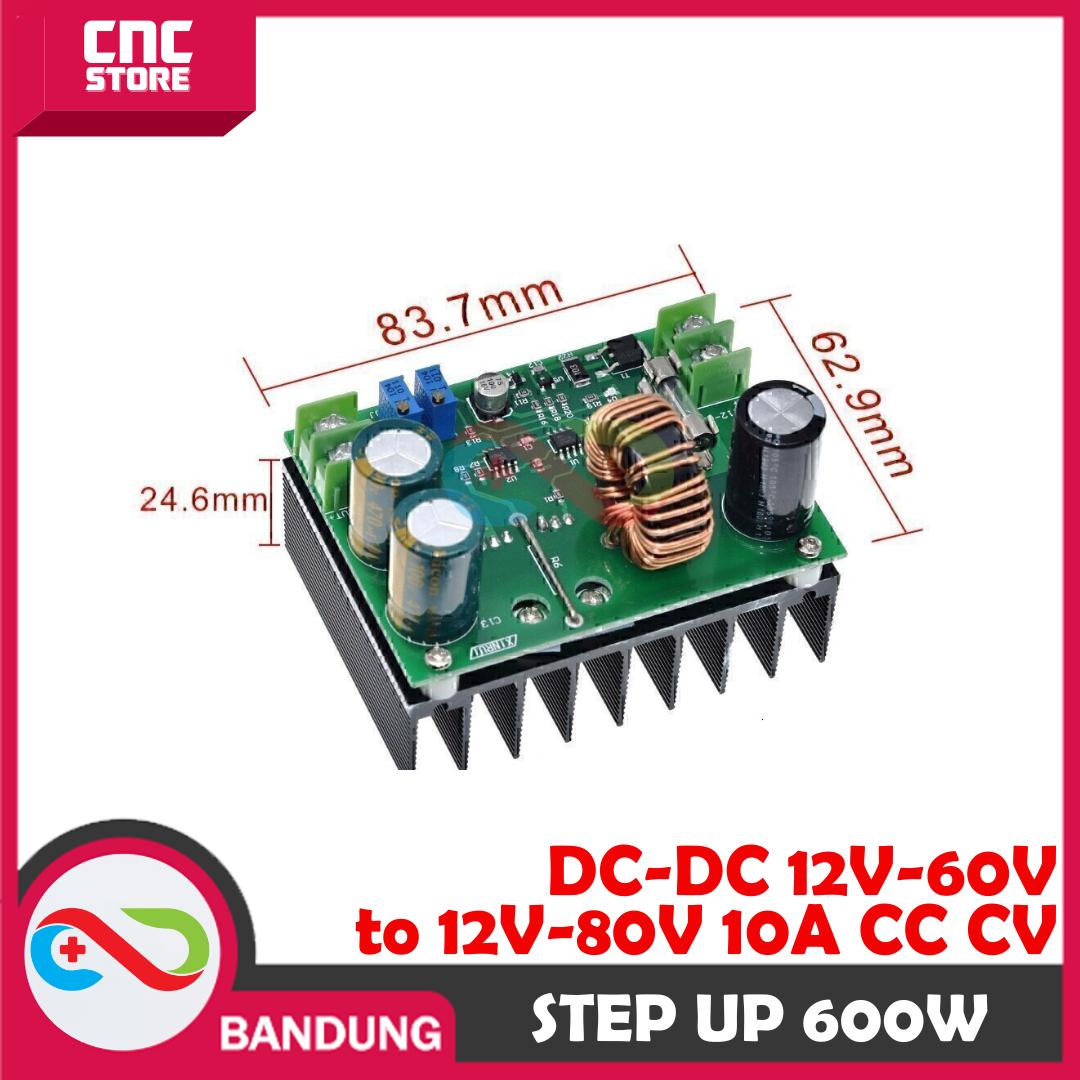

Output ripple: <50mV Dimension: 85x63x60mm Output power: 600W (Max) Output current: 10A (Max) Input voltage: DC 12V-60V Wiring: 8500 wiring terminals Working temperature: -40 to +80 Celsius Output voltage: DC 12V-80V continuously adjustable Input current: 15A (Max,please enhance radiating when more than 10A) Conversion efficiency: up to 95% (input voltage and current; output voltage and current will affect conversion efficiency)Application Example: 1.Input 12V/8.73A and output 20V/5.0A, then efficiency is about 86% 2.Input 54V/13.5A and output 58V/12A, then use 5?/11Kw resistance as load test, efficiency is 95%Some Applications: 1.Be power supply of car, laptop,PDA or other digital products; DIY a huge-power notebook mobile power supply equipped with a 12V battery pack 2.DIY an output adjustable car power supply?input of DC 12V and output of DC 14-80V continuously adjustable; but the output voltage can not less than input voltageNotes: 1.The board doesn't have input reversed connection protection 1.Effective power P = input voltage V * 10A; if you need larger power, you can connect two modules in parallel.E.g, if you need 15A, you can link two modules in parallel and adjust amp of each board to 8A 2.600W refers to the max power of module under specific conditions. Under different input volt, the max output power decline by the max input current limit. E.g.Input voltage 12V; max output power P=12V*10A=120W; Input voltage 24V; max output power P=24V*10A=240W; Input voltage 60V; max output power P=60V*10A=600WPackage include: 1x STEP UP 600W 10-60V TO 12-80V CC-CV 10A BOOST CONVERTER HIGH POWER
