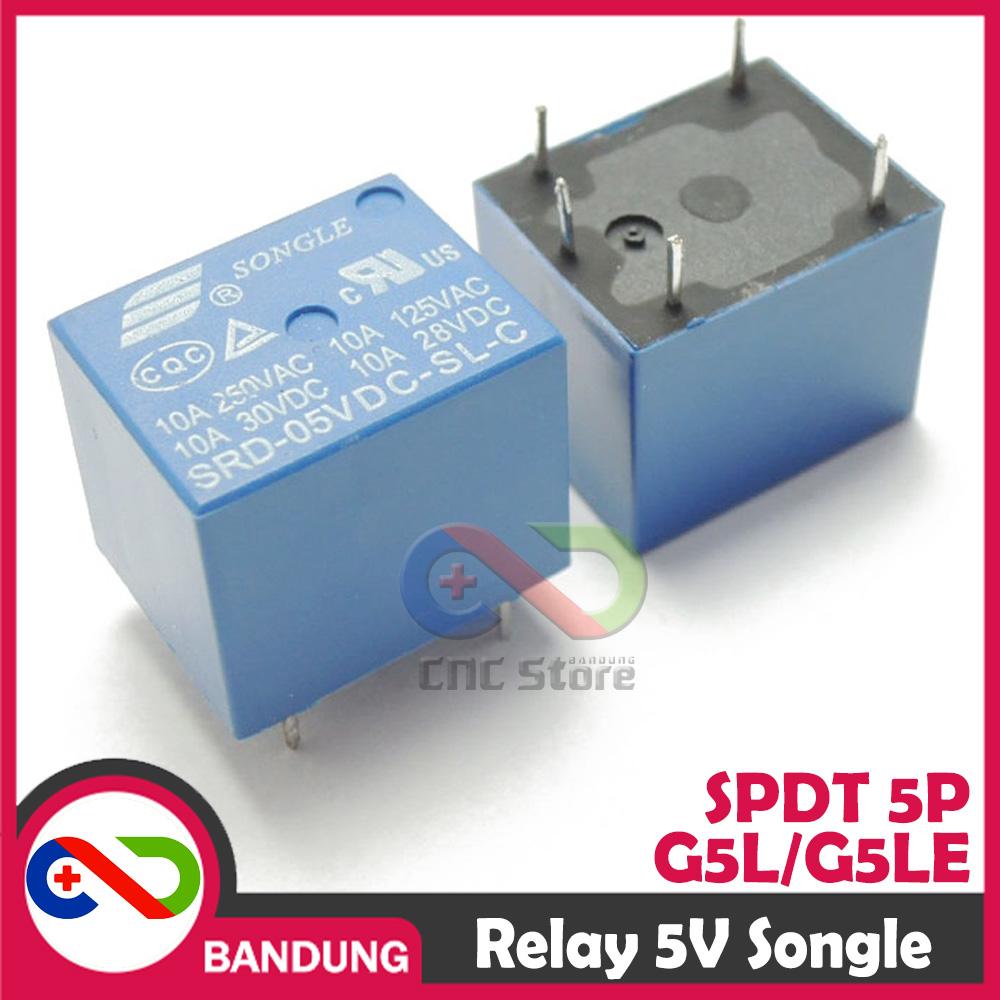

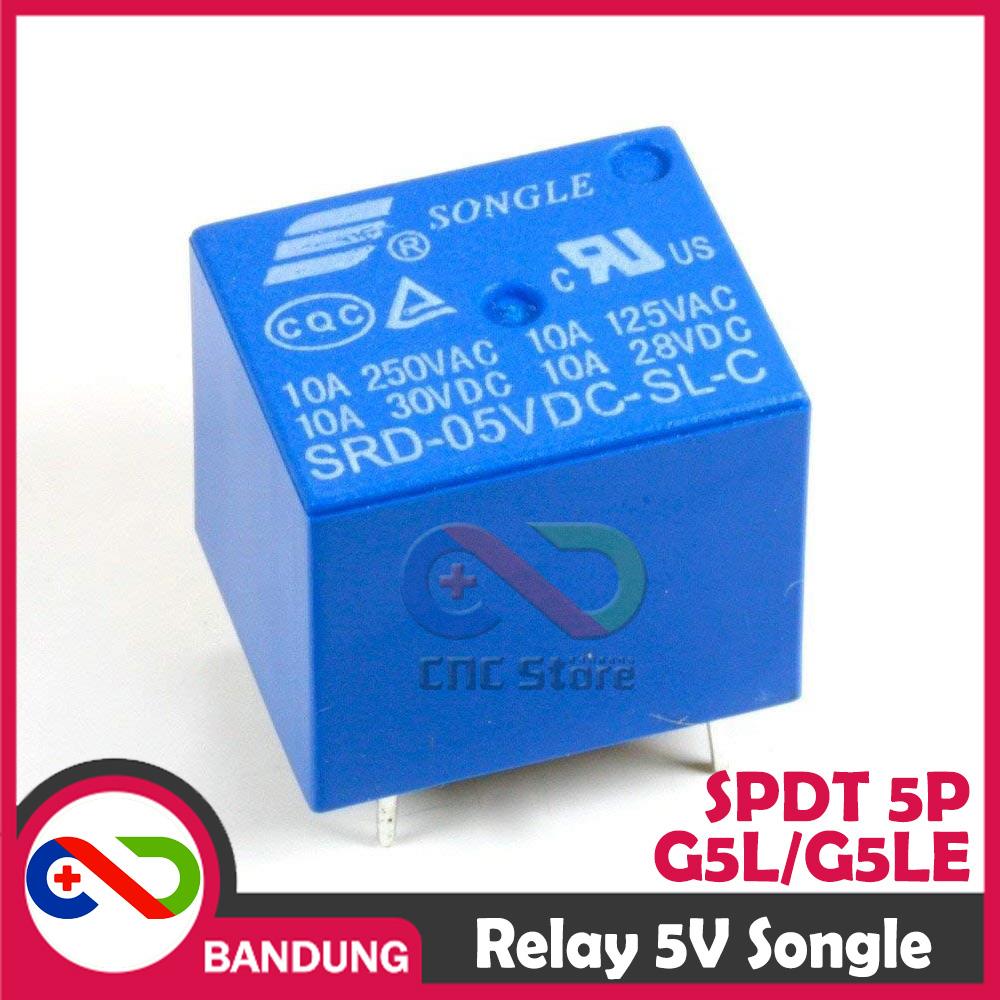

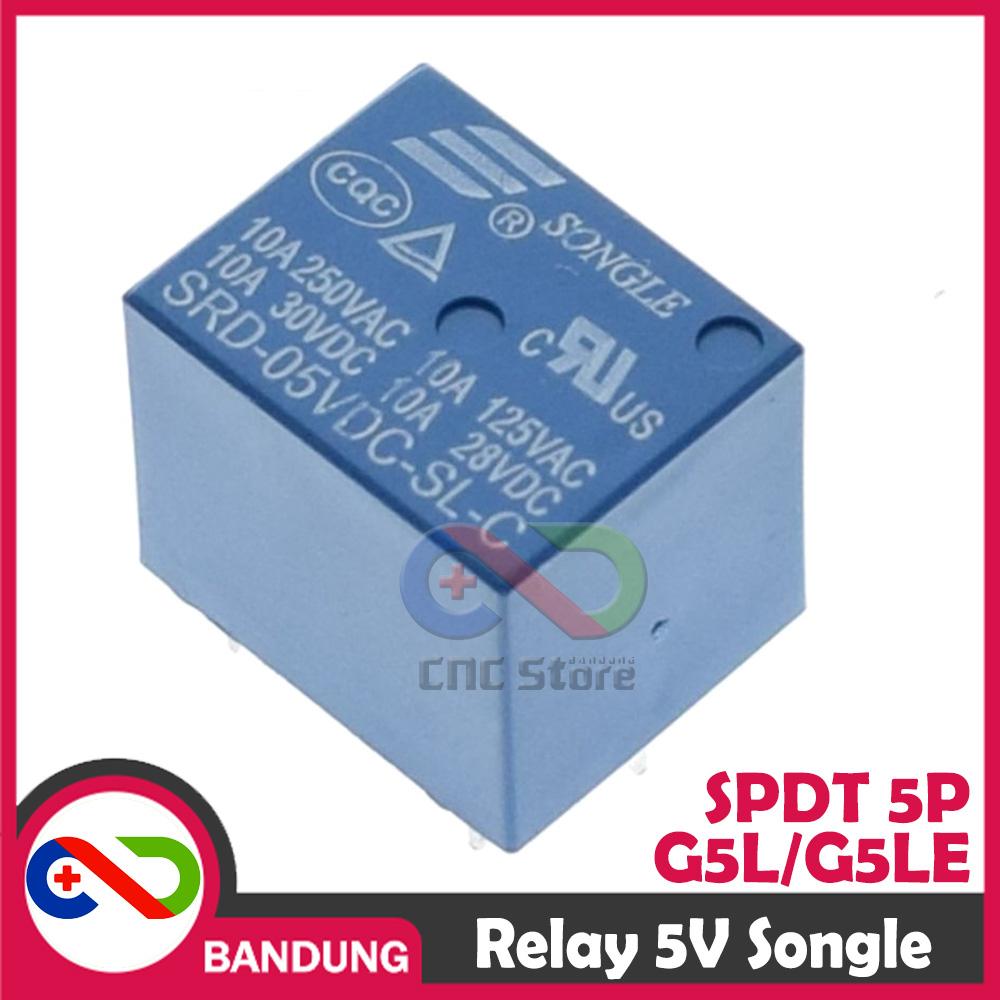

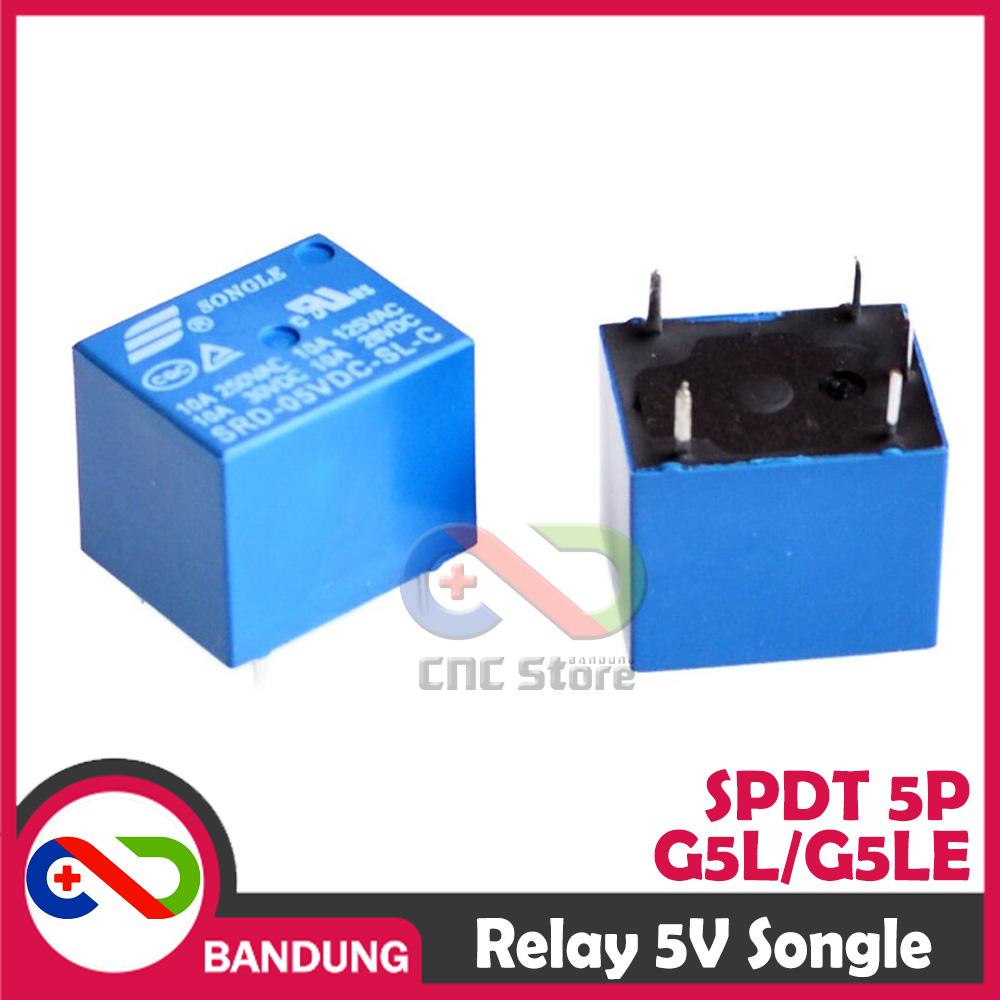

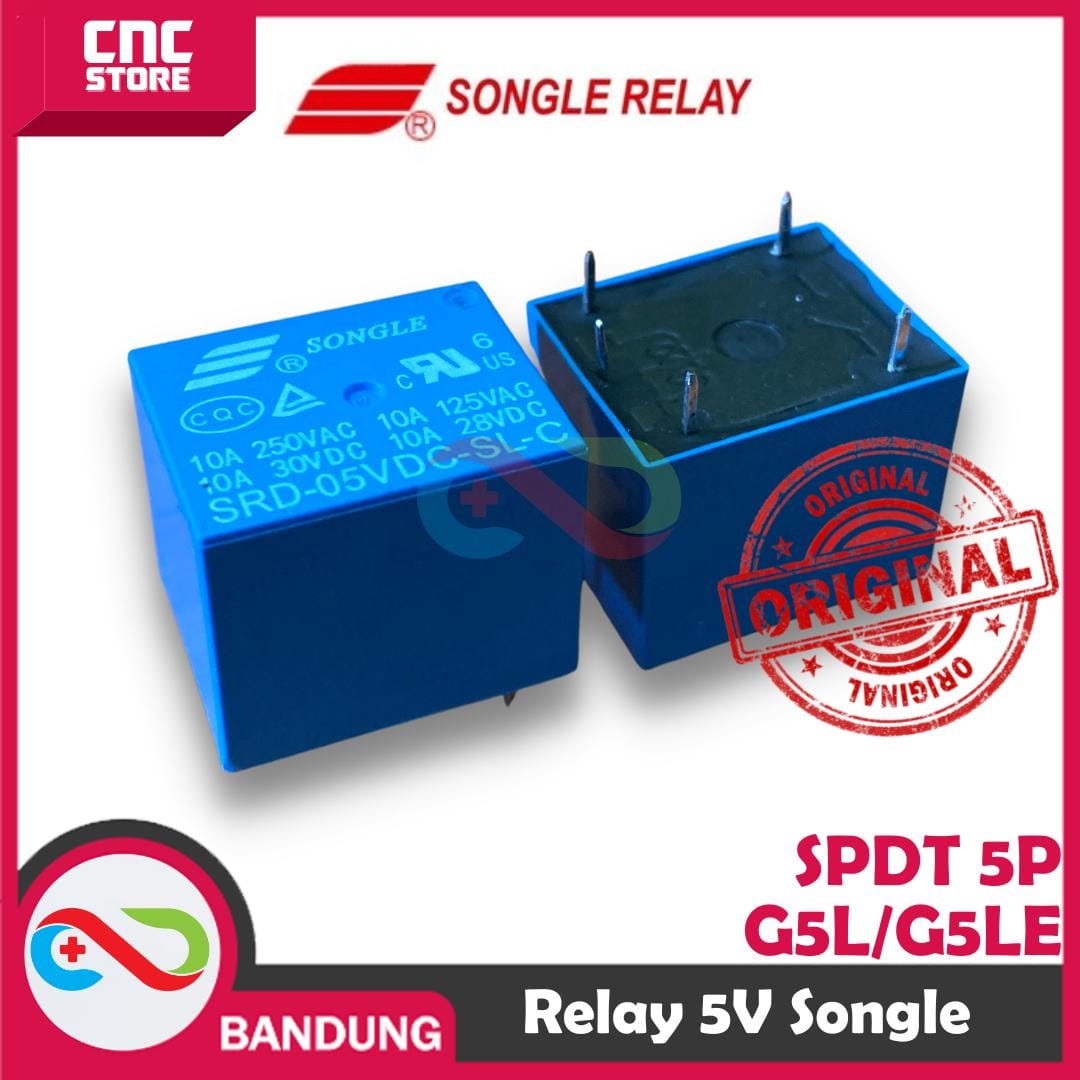

RELAY SONGLE 5V 10A SRD-05VDC-SL-C 5 PIN 5P

REL-0009
========

Deskripsi:
=================================
Relay 5V/10A yang memiliki 5 pin ini banyak digunakan dalam aplikasi IoT, domestik, office machine, audio, equipment, automobile dll. Kami juga menjual relay yang sudah berbentuk modul memakai opto-coupler, silahkan cek lapak kami yang lain.

Silahkan di Order !!!

Specifications :
=================================
– Model : SRD-05VDC-SL-C(T73)
– Coil Voltage : DC 5V
– Pin : 5PIN
– Rated load : 10A 250VAC / 10A 125VAC / 10A 30VDC / 10A 28VDC
– Contact form : 1a, 1b, 1c
– Contact resistance : <=100m (ohm) - Electrical life : 100,000 - Mechanical life : 10,000,000 - Coil power : 0.36W, 0.45W - Coil pick-up voltage : <=75% - Coil drop-out voltage : >=10%
– Ambient temperature : -25 degrees Celsius to +70 degrees Celsius
– Coil and contacts : 1500VAC/min
– Contact and contacts : 1000VAC/min
– Insulation resistance : >=100M ohm
– Mounting form : PCB
– Outline dimensions : 19mm x 15.5mm x 15mm

Paket :
=================================
– 1x RELAY SONGLE 5V 10A SRD-05VDC-SL-C 5 PIN 5P

UNTUK HARGA GROSIR CHAT US ^^
