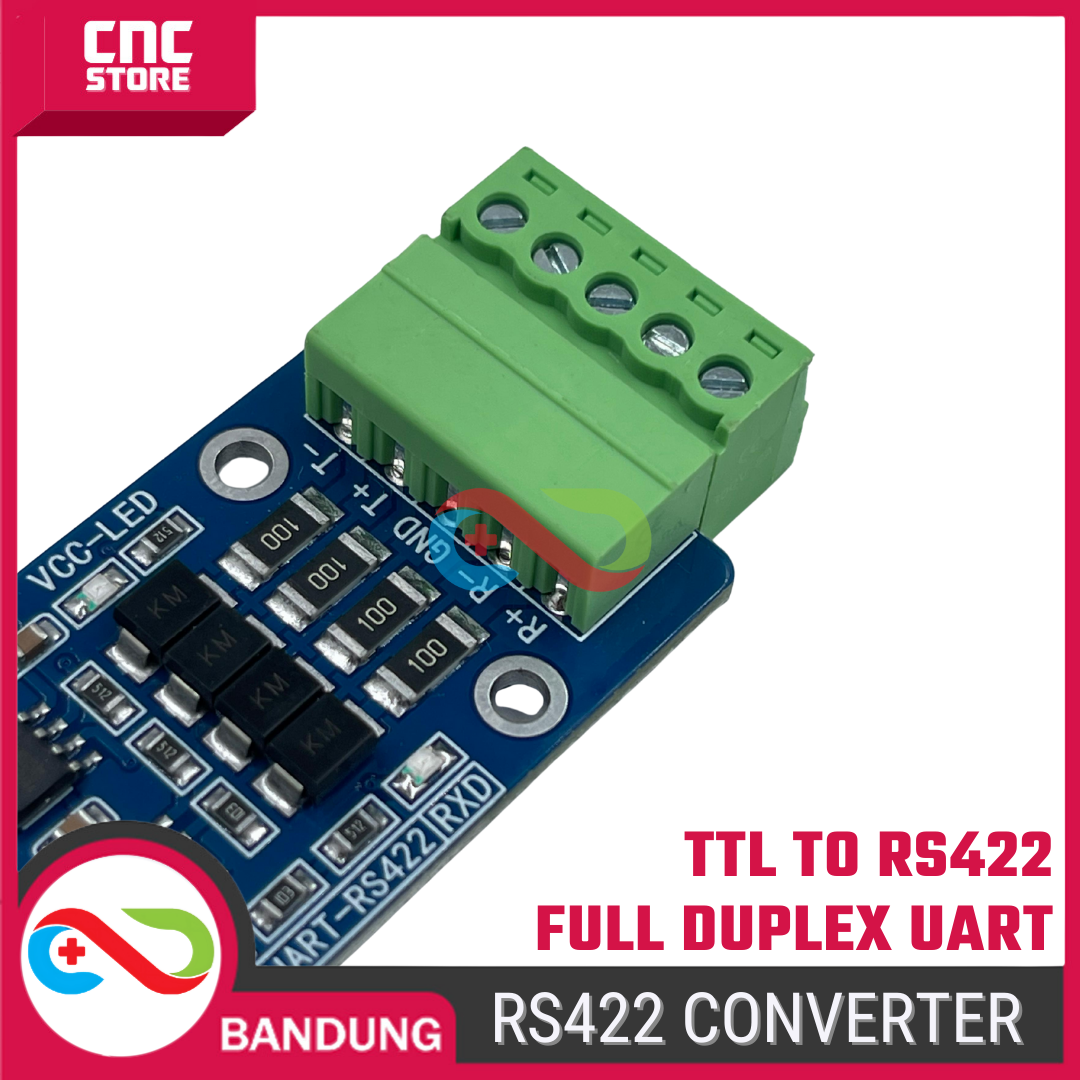

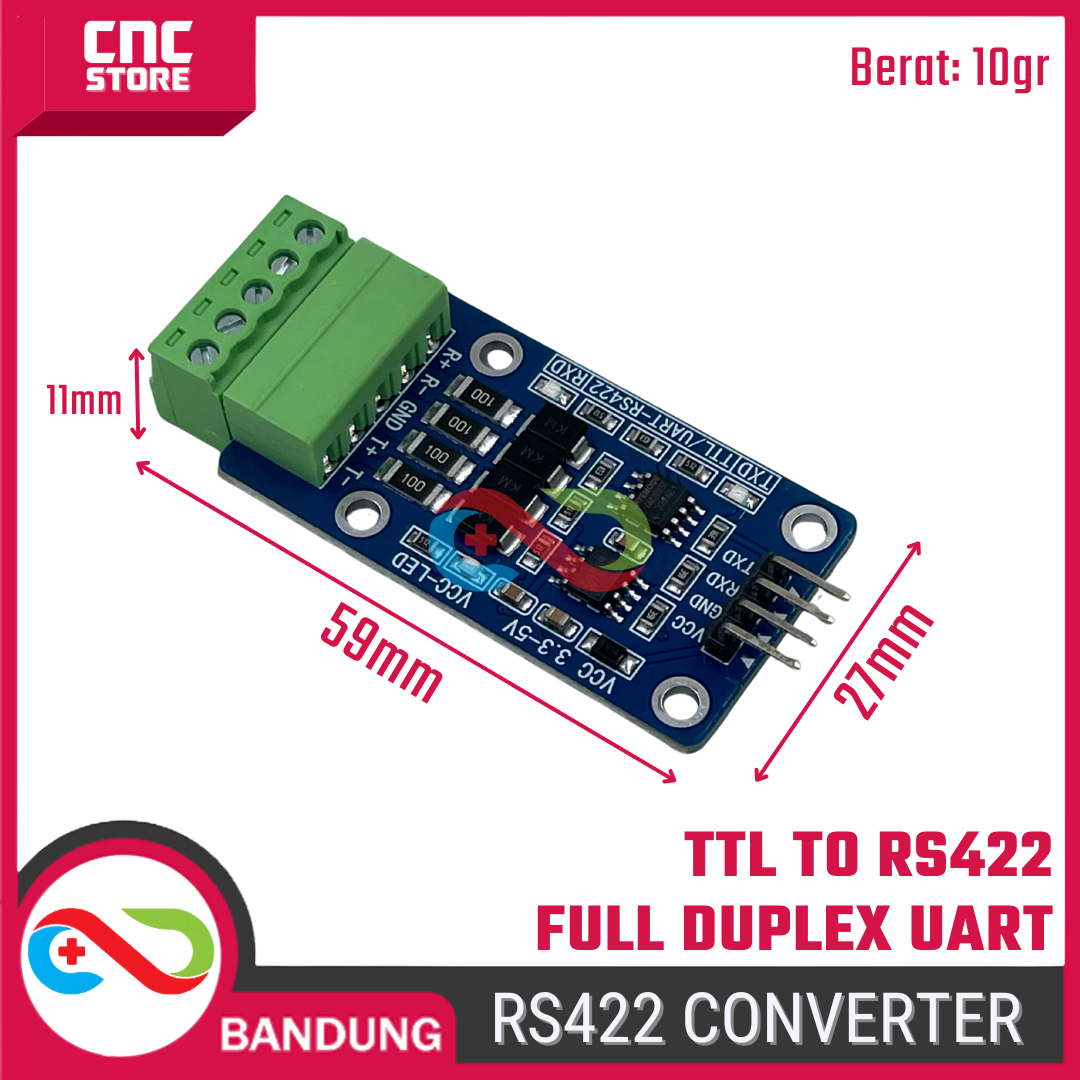

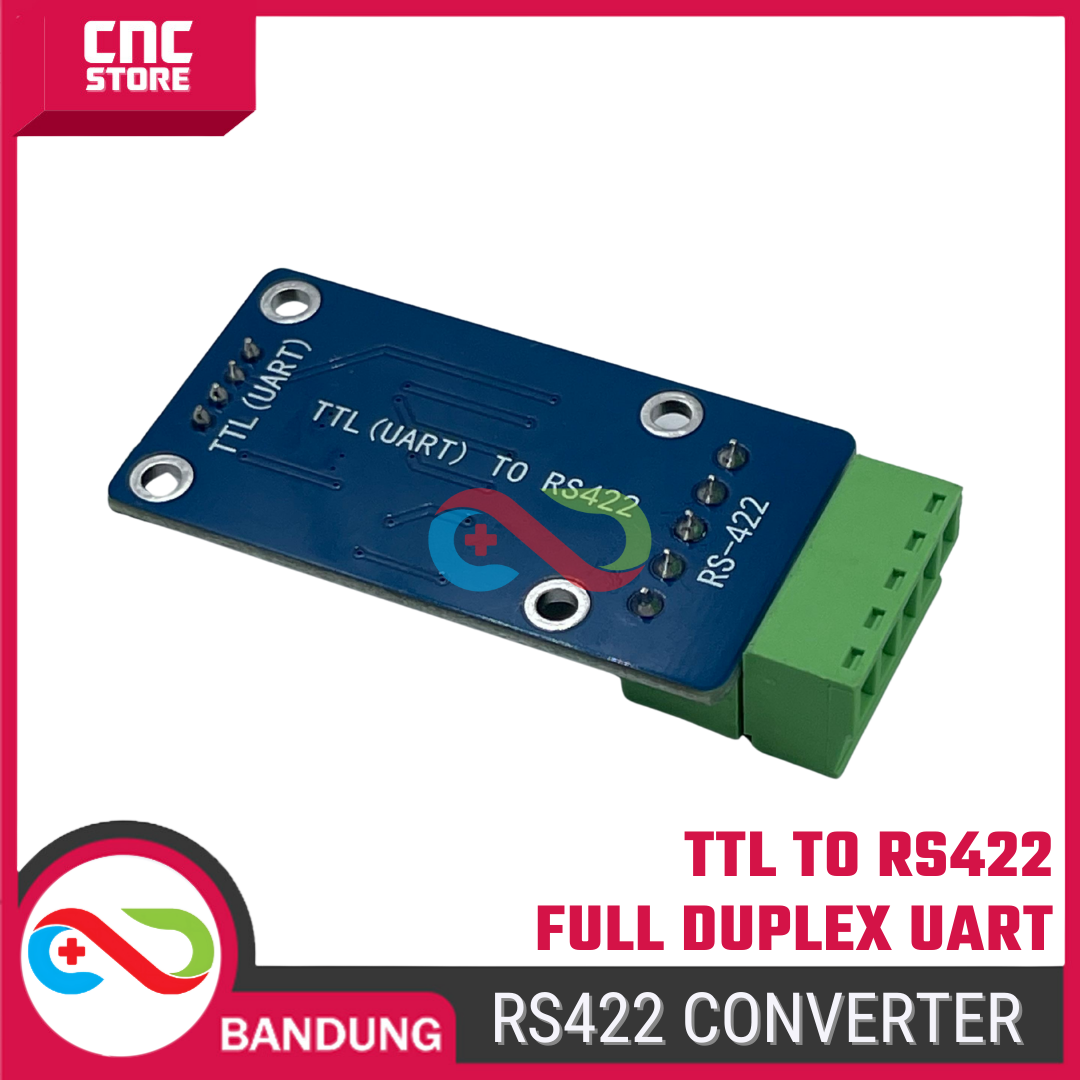

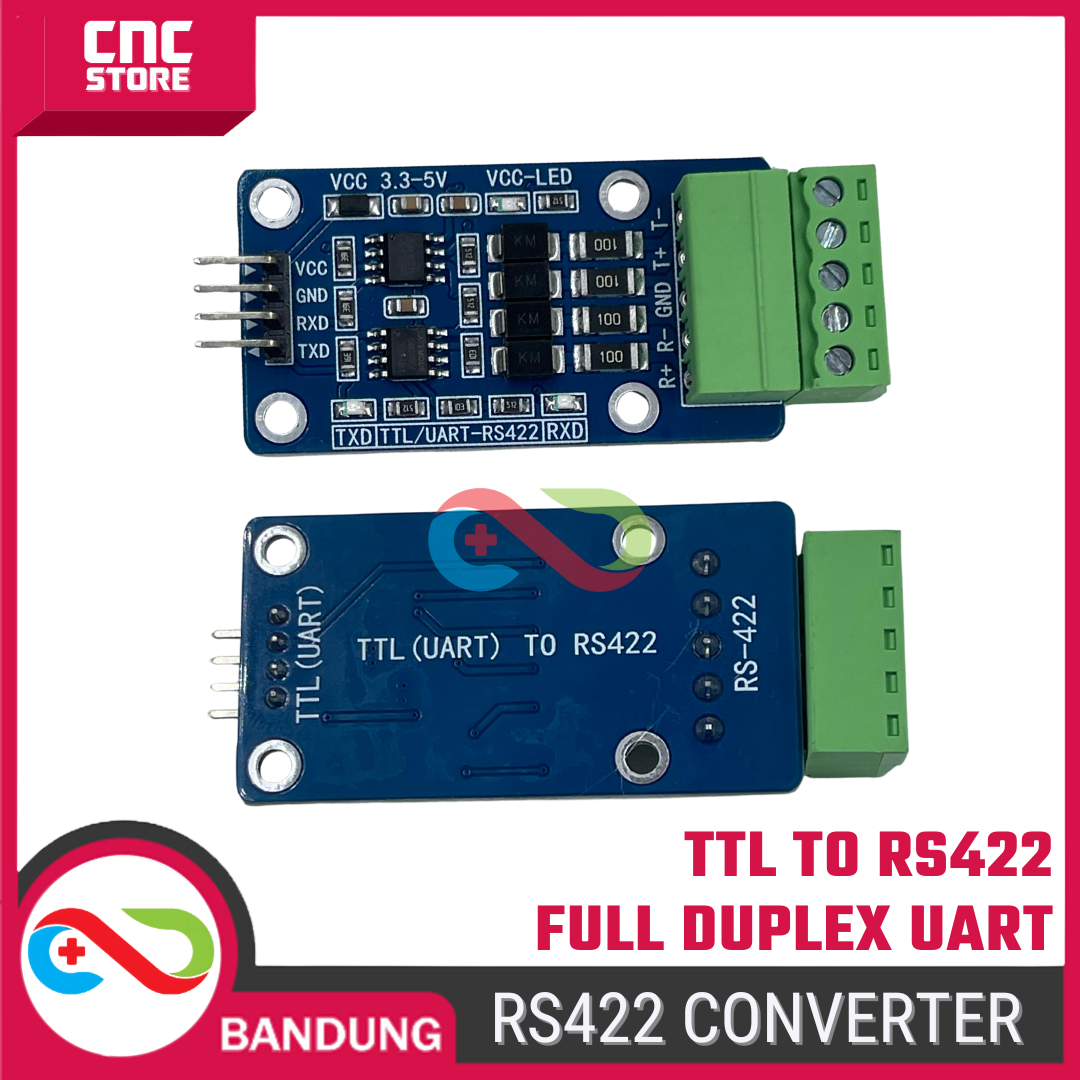

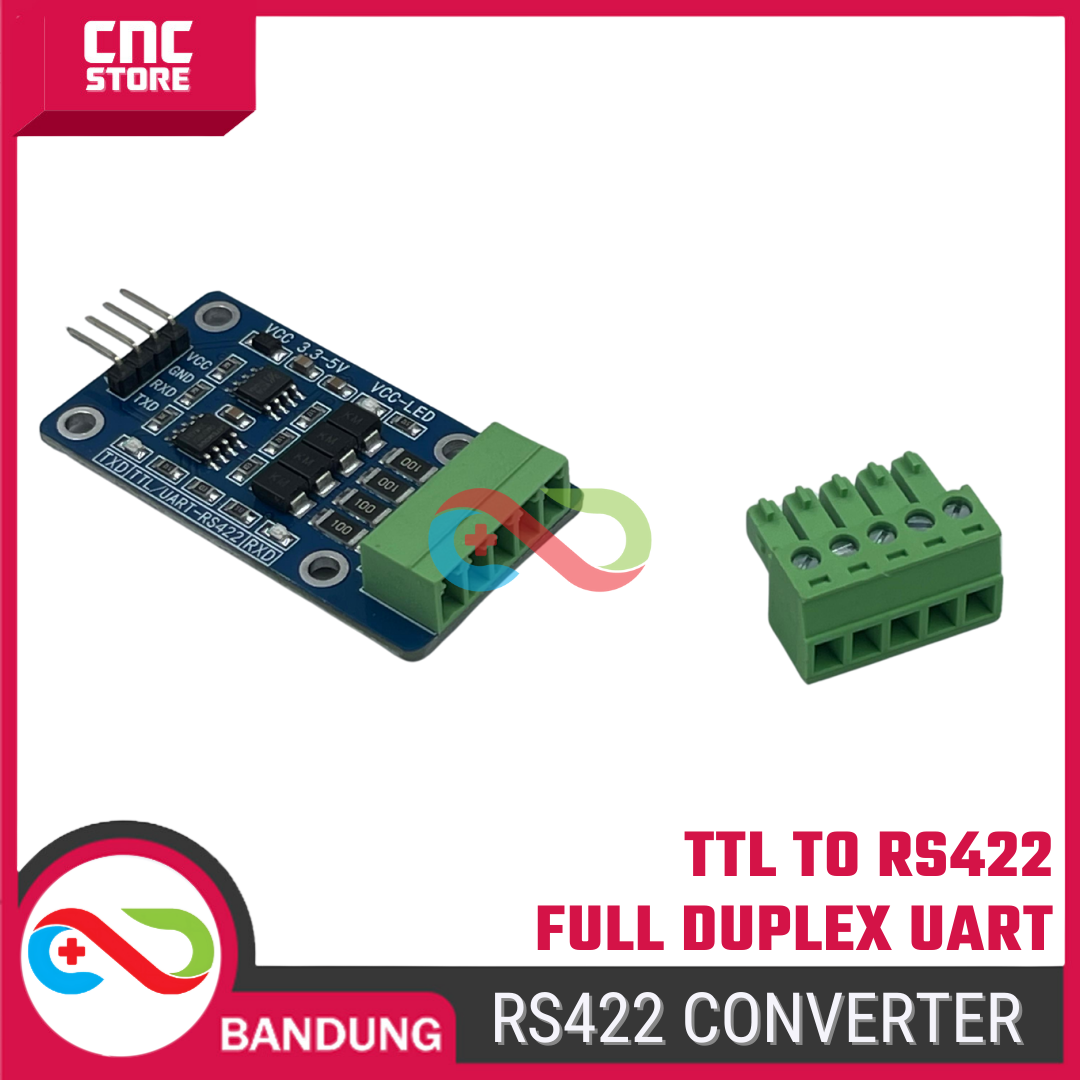

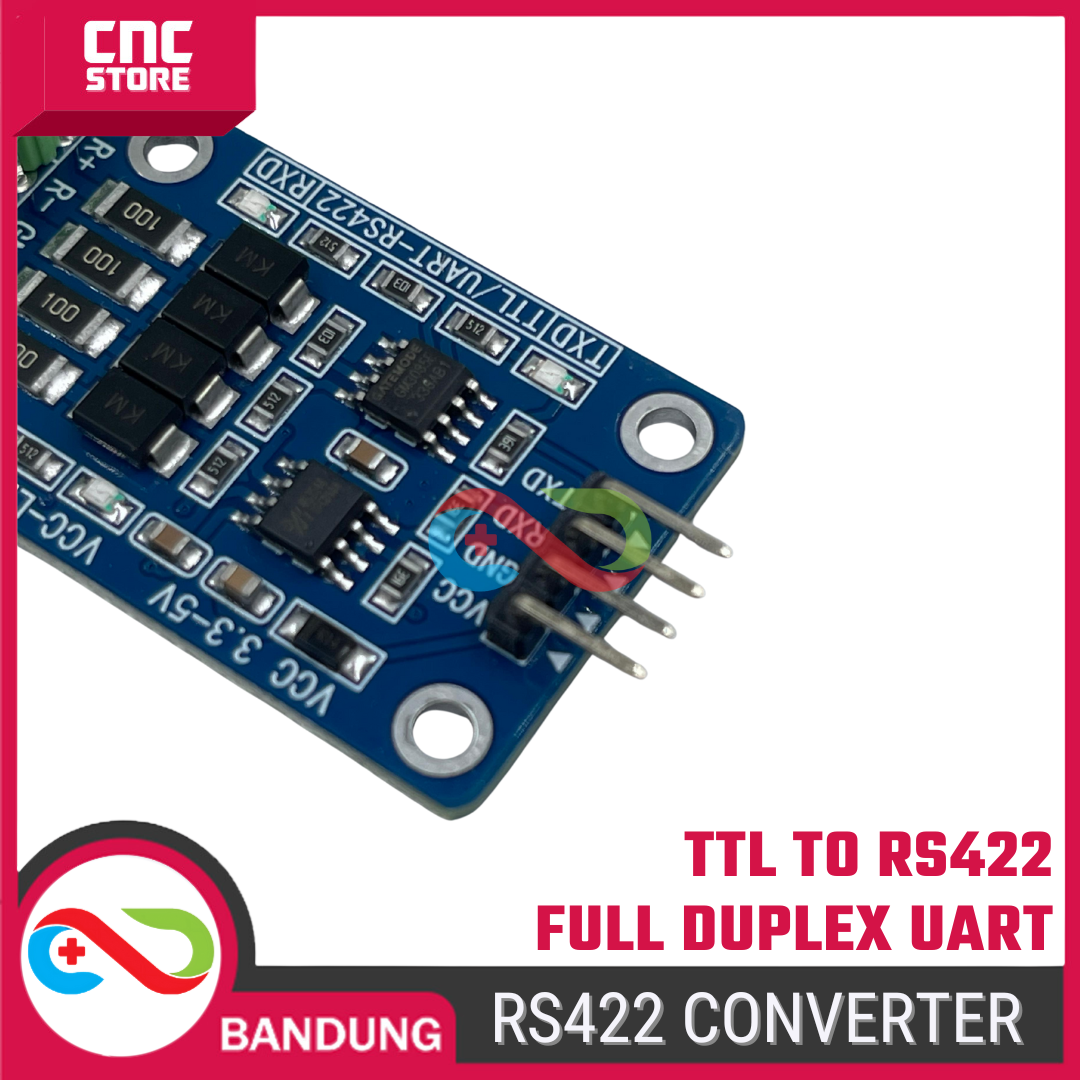

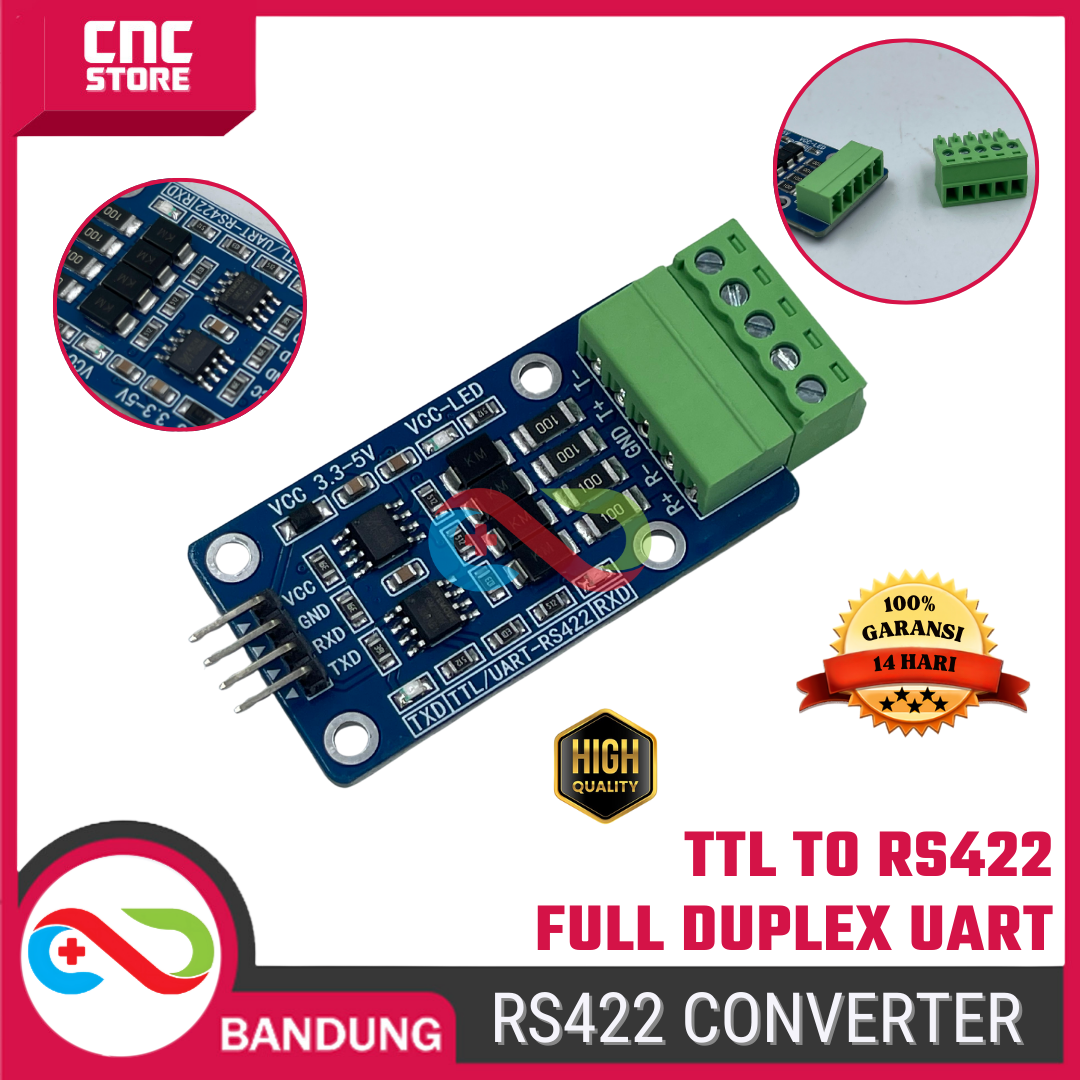

MCU TTL to RS422 Module – UART Level Conversion Full Duplex 485 Serial

BRD-0122
========
Kenapa CNC STORE BANDUNG?
✅ Produk high quality
✅ Ada garansi 14 hari
✅ Bisa tanya teknis & dibantu
✅ Cocok untuk teknisi, pelajar, & DIY

==== Deskripsi ====
Insan Bangor, siapa bilang komunikasi antar board itu rumit?
Bayangkan kamu ingin menghubungkan Arduino, ESP32, atau MCU lainnya ke sistem yang menggunakan RS422/RS485, tapi board-mu cuma punya TTL UART. Tanpa konverter, sinyal bisa nggak terbaca atau error. Dengan MCU TTL to RS422 Module, semua itu jadi mudah! Modul ini mampu melakukan level conversion TTL ke RS422 full duplex, sehingga data serial bisa dikirim dan diterima secara stabil dan andal.

Yuk segera di order, sebelum kehabisan~!

==== Spesifikasi ====
– Working voltage: 3.3-5.0V (DC)
– Working current: static about 3mA
– Working temperature: -30℃-70℃
– Load capacity: Maximum 32 devices on 422 bus
– Communication rate: no higher than 500K, automatically adaptable

+ Features:
1. The module is powered by 3.3-5V, and the TTL transceiver interface is compatible with 3.3V and 5.0V levels;
2. Industrial-grade design, stable and reliable performance, strong anti-interference ability;
3. Multiple protection measures: positive and negative 15KV ESD protection, 600W four-way TVS protection;
4. Communication baud rate adaptive, stable transmission within 500Kbps;
5. Support multi-machine communication, and a maximum of 32 devices can be connected to the 422 bus;
6. The module supports hot swapping, has strong driving capability, and the maximum transmission distance is 1200 meters;
7. With 3mm screw holes for easy installation.

==== Paket ====
1Pcs MCU TTL to RS422 Module – UART Level Conversion Full Duplex 485 Serial
