DSP-0163
========
Kenapa CNC STORE BANDUNG?
Produk high quality
Ada garansi 14 hari
Bisa tanya teknis & dibantu
Cocok untuk teknisi, pelajar, & DIY
==== Deskripsi ====
Capek pakai ESP32 tapi tampilannya cuma Serial Monitor?
Pengen bikin kontrol panel, dashboard IoT, atau HMI kecil tapi ribet rakit layar satu-satu?
Tenang Insan Bangor

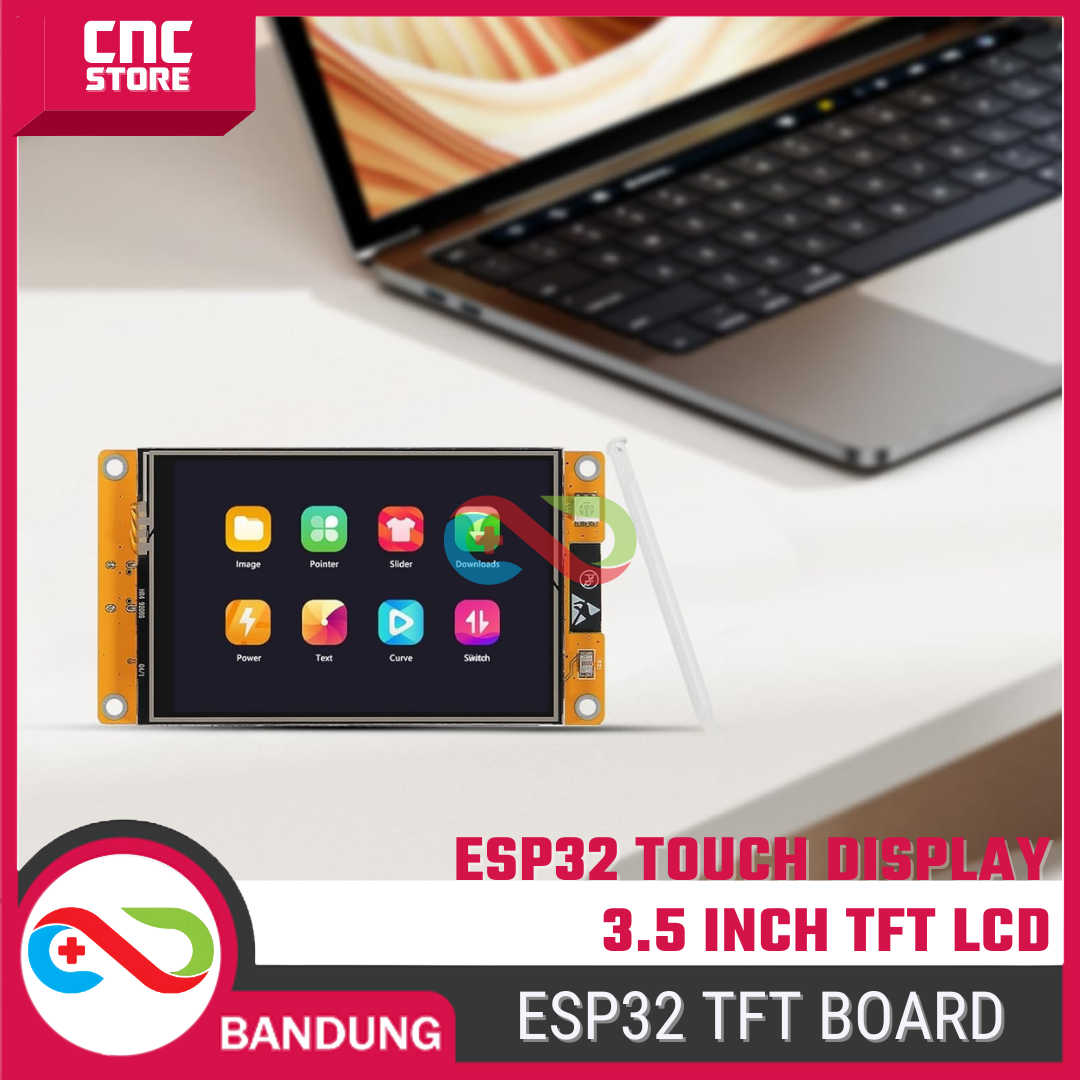

Board ESP32 + TFT Touch 3.5 Inch ini langsung gas.
ESP32 + WiFi + Bluetooth + layar sentuh warna dalam satu papan.
ESP32 Development Board dengan Layar Sentuh 3.5 Inch adalah papan pengembangan berbasis ESP32 yang sudah terintegrasi dengan layar TFT warna berukuran 3.5 inci dan fitur touch screen.
Board ini cocok untuk aplikasi IoT yang membutuhkan tampilan visual dan input sentuhan, seperti dashboard, kontrol panel, smart device, dan HMI mini. Tidak perlu modul tambahan, wiring jadi lebih rapi dan ringkas.
==== Spesifikasi ====
Features:
Integrated ESP32 dual-core processor with WiFi + Bluetooth support
3.5-inch TFT LCD display with 480×320 resolution (ST7796 driver)
Resistive touch screen for interactive control
Fully compatible with Arduino IDE, MicroPython, and ESP-IDF
Built-in microSD card slot for storage expansion
Compact all-in-one development board + display design
Ideal for IoT projects, HMI interfaces, smart devices, and DIY applications
Specifications:
Model: ESP32-3248S035C
Microcontroller: ESP32 (dual-core, 32-bit)
Display Size: 3.5 inch TFT LCD
Resolution: 480 × 320 pixels
Driver IC: ST7796
Touch Type: Resistive Touch Panel
Connectivity: WiFi 802.11 b/g/n, Bluetooth 4.2 BR/EDR + BLE
Storage: microSD card slot (supports FAT/FAT32)
Programming Support: Arduino IDE, MicroPython, ESP-IDF
Power Supply: 5V via USB or external input
Applications: IoT dashboards, smart home control, HMI interfaces, portable devices, DIY electronics
==== Aplikasi ====
Dashboard IoT
Smart home controller
Kontrol alat & mesin

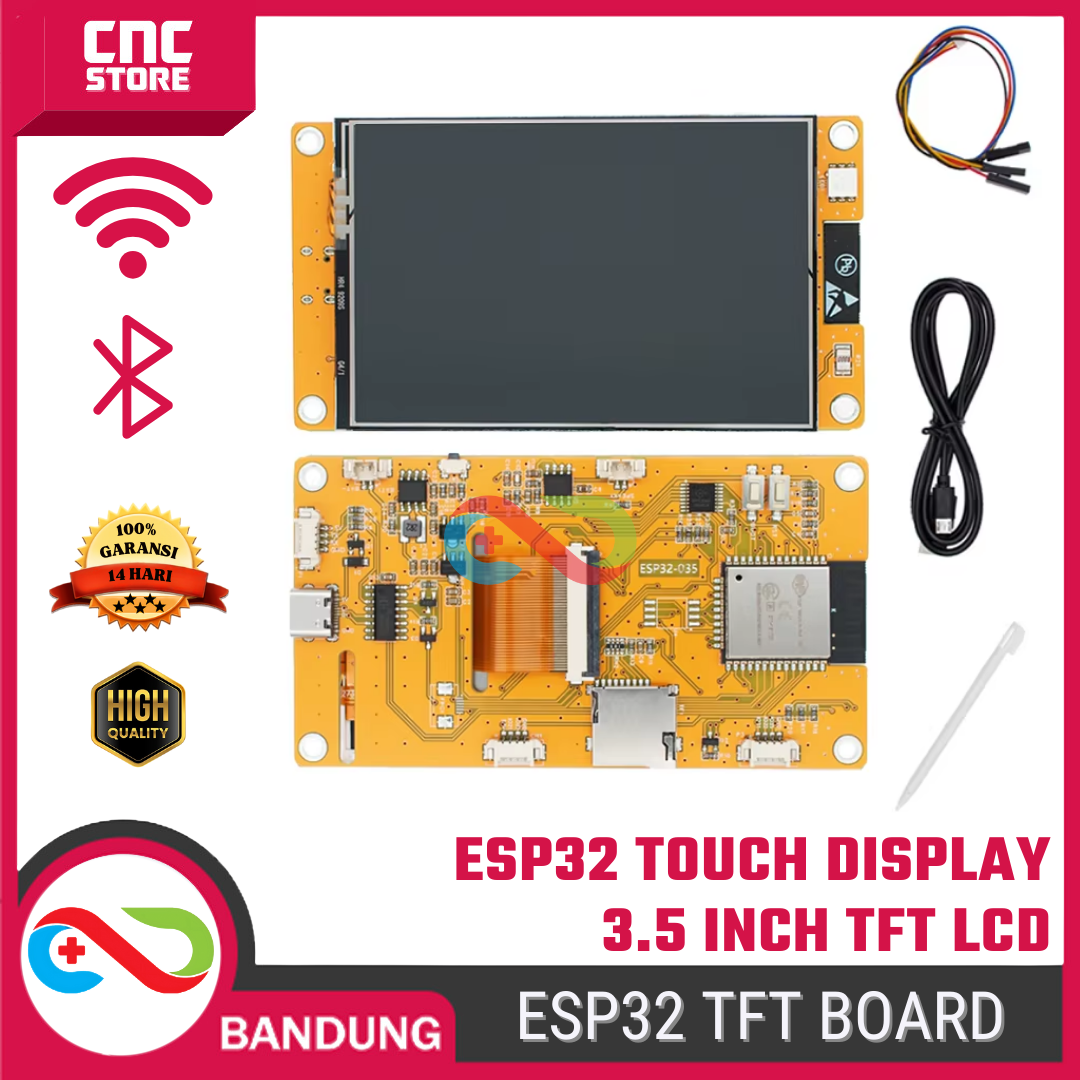

==== Paket ====
1× ESP32 Development Board
dengan Layar Sentuh TFT 3.5 Inch
Kabel USB
Kabel jumper
