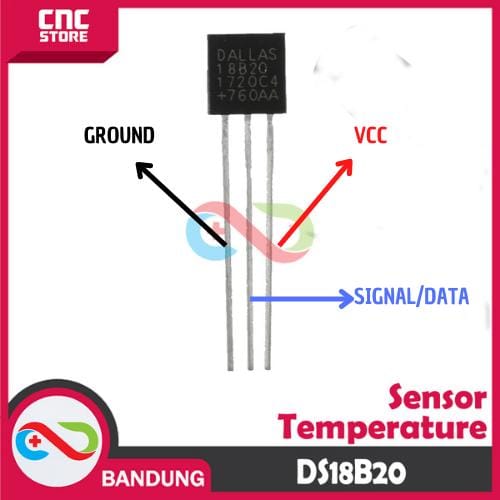

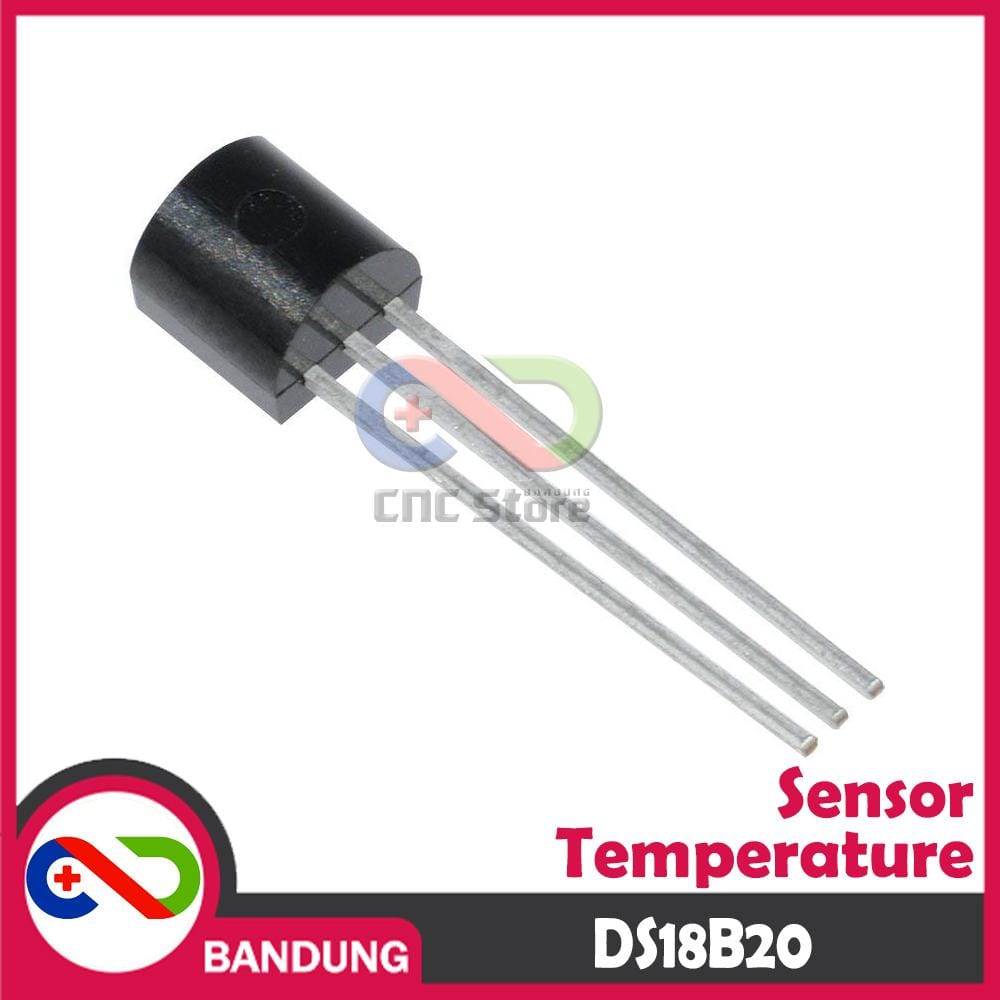

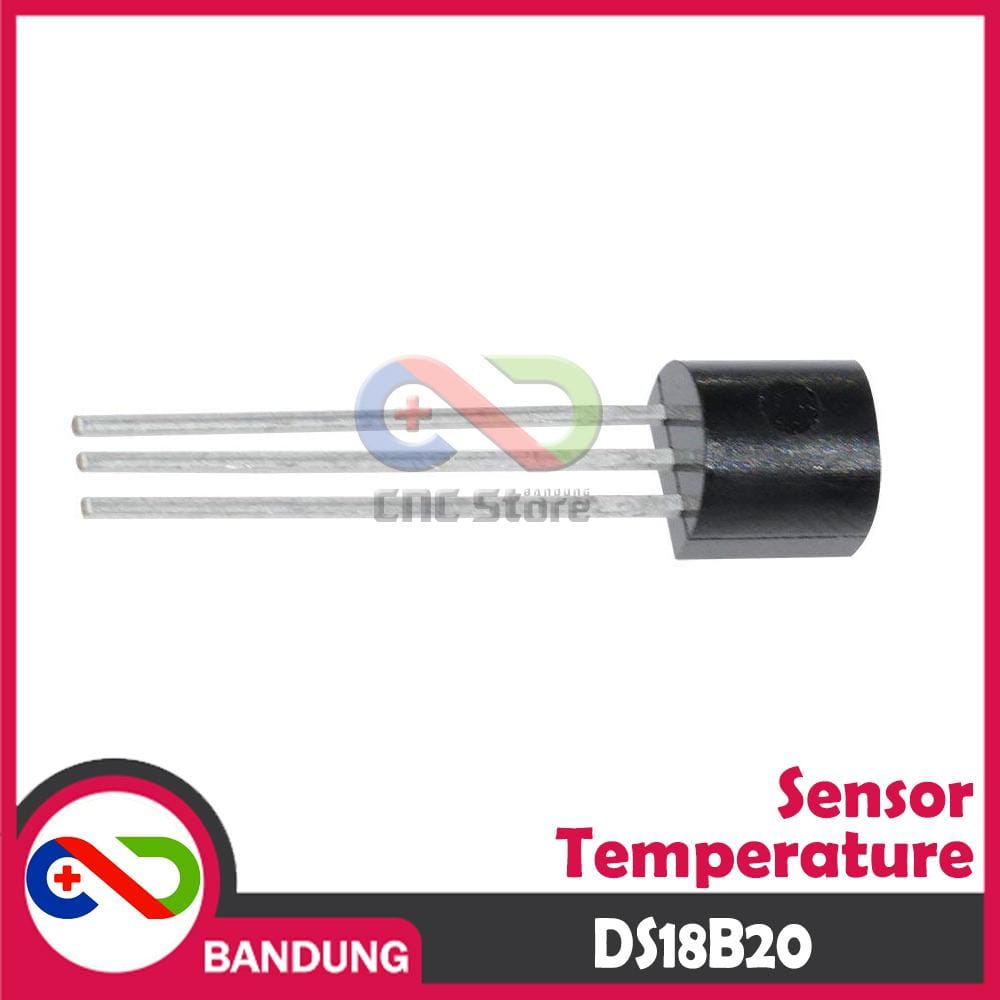

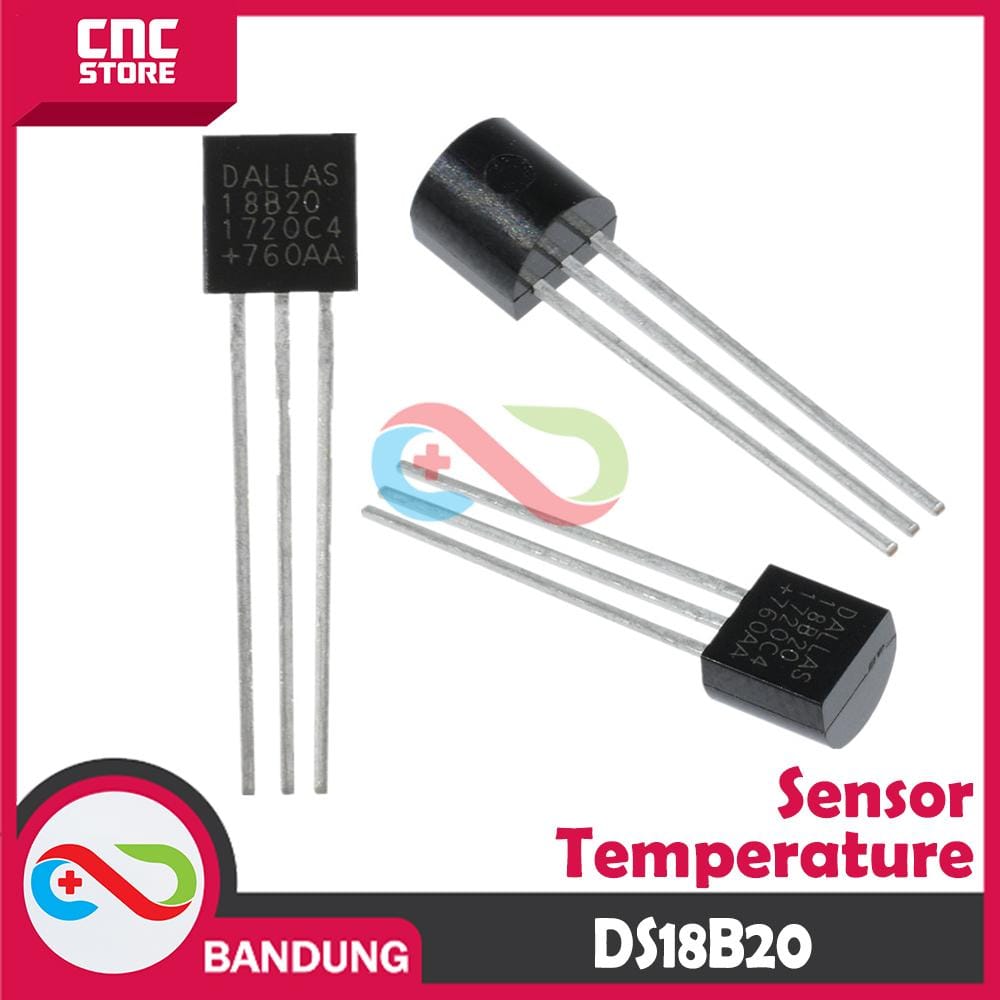

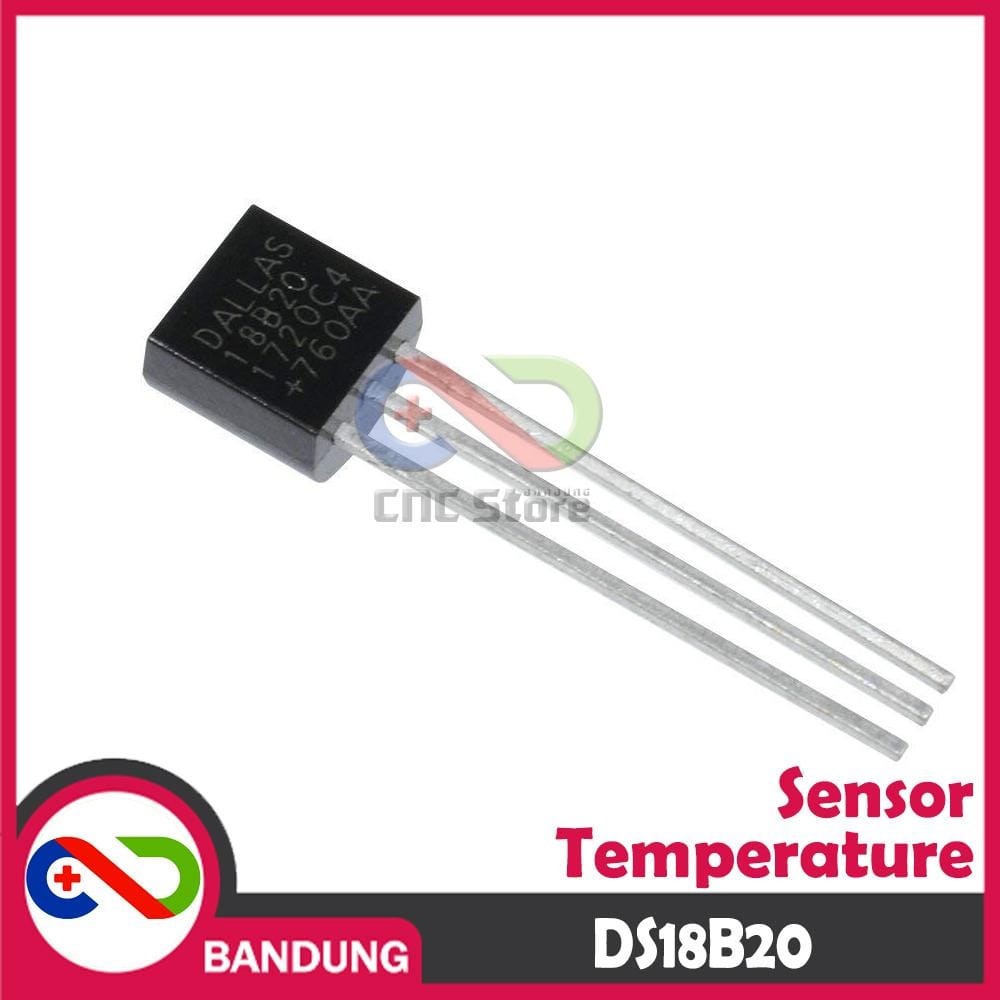

DS18B20 TO-92 ONE WIRE TEMPERATURE SENSOR FOR ARDUINO UNO MEGA IC

ICS-0013
========

Deskripsi:
=================================
IC sensor pengukur suhu digital nih gan. :D

Harganya murah, pengukurannya akurat +/- 0.5C, bisa mengukur suhu -10C to +85C, menggunakan 1 kabel saja (One wire interface) dan pemakaiannya mudah gan. :D

Silahkan cek lapak kami yang lain untuk versi DS18B20 yang waterproof.

So, silahkan di ORDER gan !!!!!!!! :D

Berikut kata datasheet :
=================================
The DS18B20 digital thermometer provides 9-bit to 12-bit Celsius temperature measurements and has an alarm function with nonvolatile user programmable upper and lower trigger points. The DS18B20 communicates over a 1-Wire bus that by definit ion requires only one data line (and ground) for communication with a central microprocessor.

It has an operating temperature range of -55C to +125C and is accurate to 0.5C over the range of -10C to +85C. In addition, the DS18B20 can derive power directly from the data line (parasite power), eliminating the need for an external power supply.

FEATURES :
=================================
– Unique 1-Wire Interface Requires Only One Port Pin for Communication
– Each Device has a Unique 64-Bit Serial Code Stored in an On-Board ROM
– Multidrop Capability Simplifies Distributed Temperature-Sensing Applications
– Requires No External Components Can Be Powered from Data Line;
– Power Supply Range is 3.0V to 5.5V
– Measures Temperatures from -55C to +125C (-67F to +257F)
– 0.5C Accuracy from -10C to +85C
– Thermometer Resolution is User Selectable

Paket:
==============================
– 1x TO-92 ONE WIRE TEMPERATURE SENSOR FOR AR

UNTUK HARGA GROSIR CHAT US ^^
