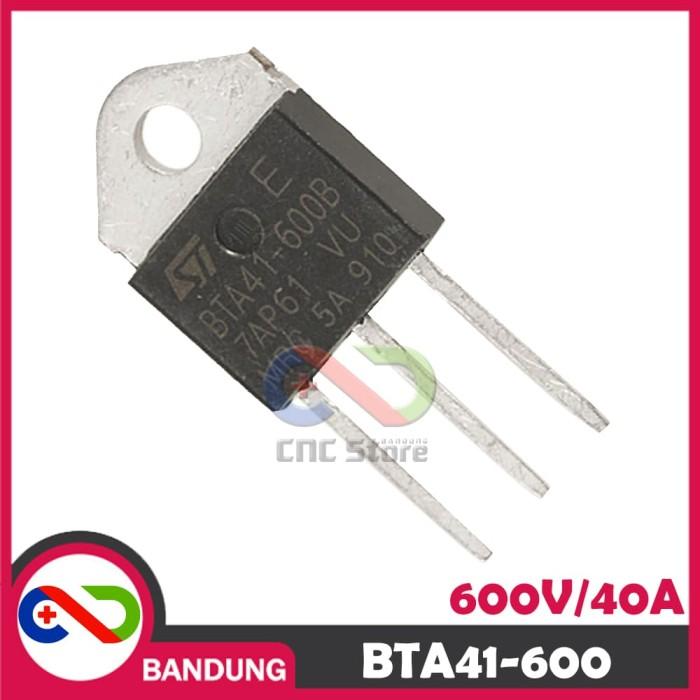

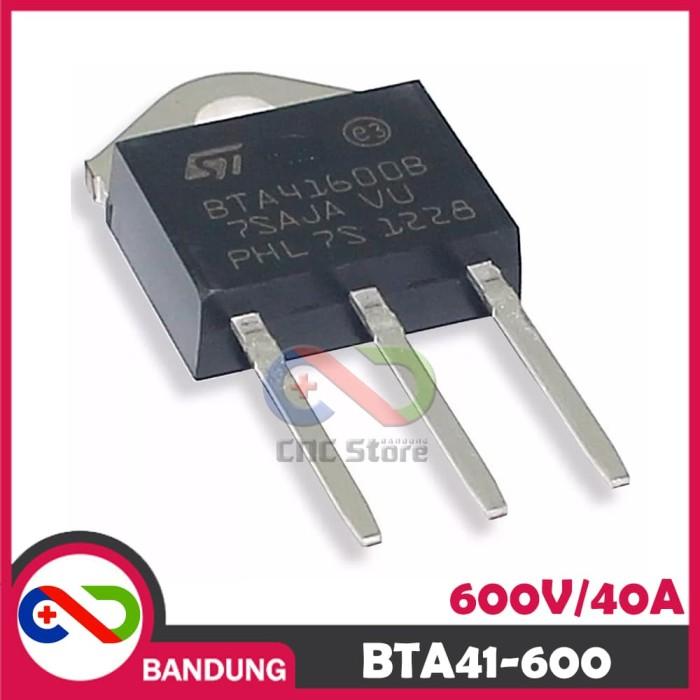

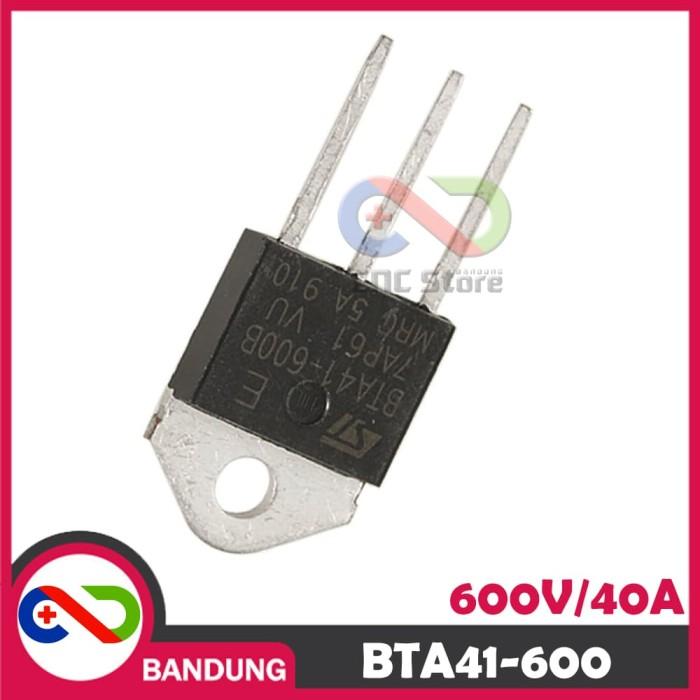

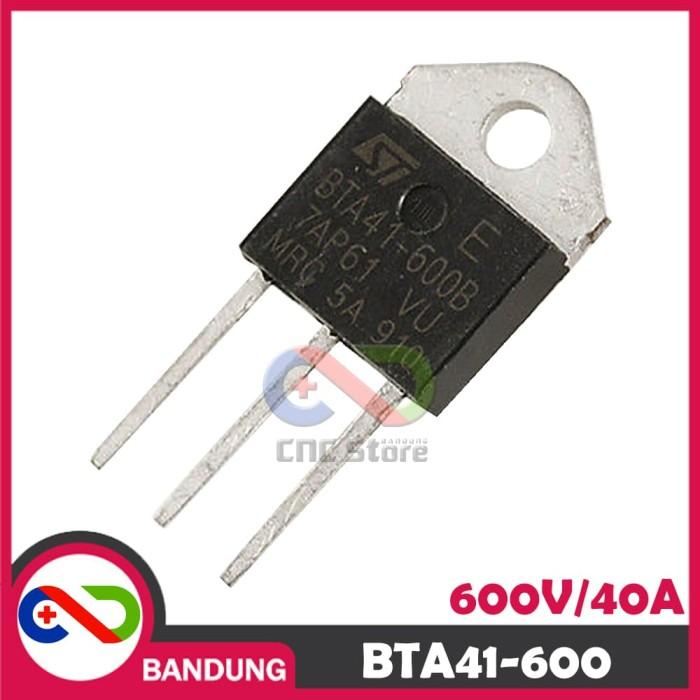

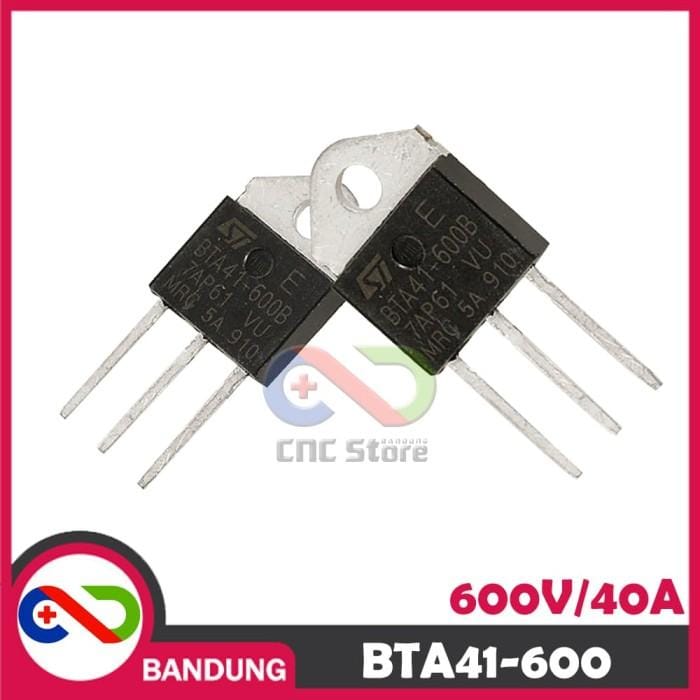

BTA41 BTA41-600B TOP-3 TRIAC 40A 600V THYRISTOR

SMC-0026
========

Deskripsi:
=================================
Bagi agan yang ingin mendrive device 220V tetapi nggak mau berisik dengerin
relay cetak cetok, bisa pakai rangkaian triac controller. Salah satu komponennya
adalah BTA41.

Spesifikasi:
=================================
– IT(RMS) : 40A
– VDRM/VRRM : 600v
– IGT : 100mA
– VGT : 1.5v
– Minimum Operating Temperature: – 40 C
– Maximum Operating Temperature: + 125 C

Features :
=================================
– High current TRIAC
– Low thermal resistance with clip bonding
– High commutation capability
– BTA series UL1557 certified (File ref: 81734)
– Packages are RoHS (2002/95/EC) compliant

Applications
=================================
– On/off function in static relays, heating regulation, induction motor starting
circuits
– Phase control operations in light dimmers, motor speed controllers, and
similar

Paket :
=================================
– 1x BTA41 BTA41-600 TOP-3 TRIAC 40A 600V THYRISTOR
terima kasih

UNTUK HARGA GROSIR CHAT US ^^
