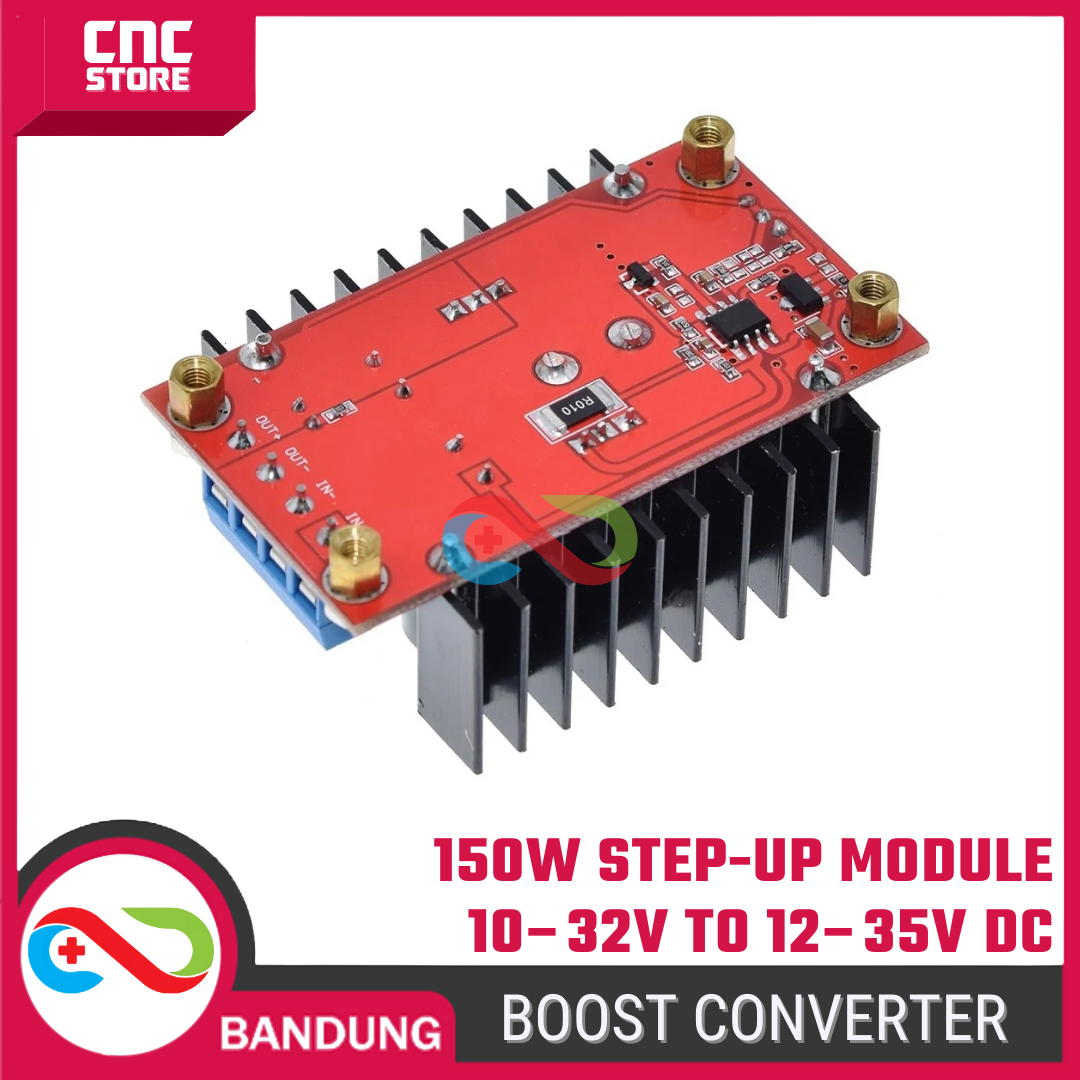

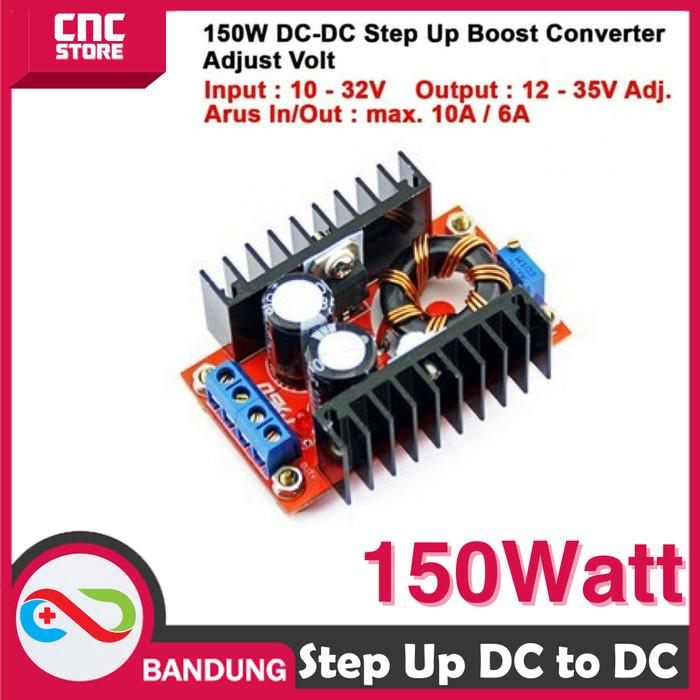

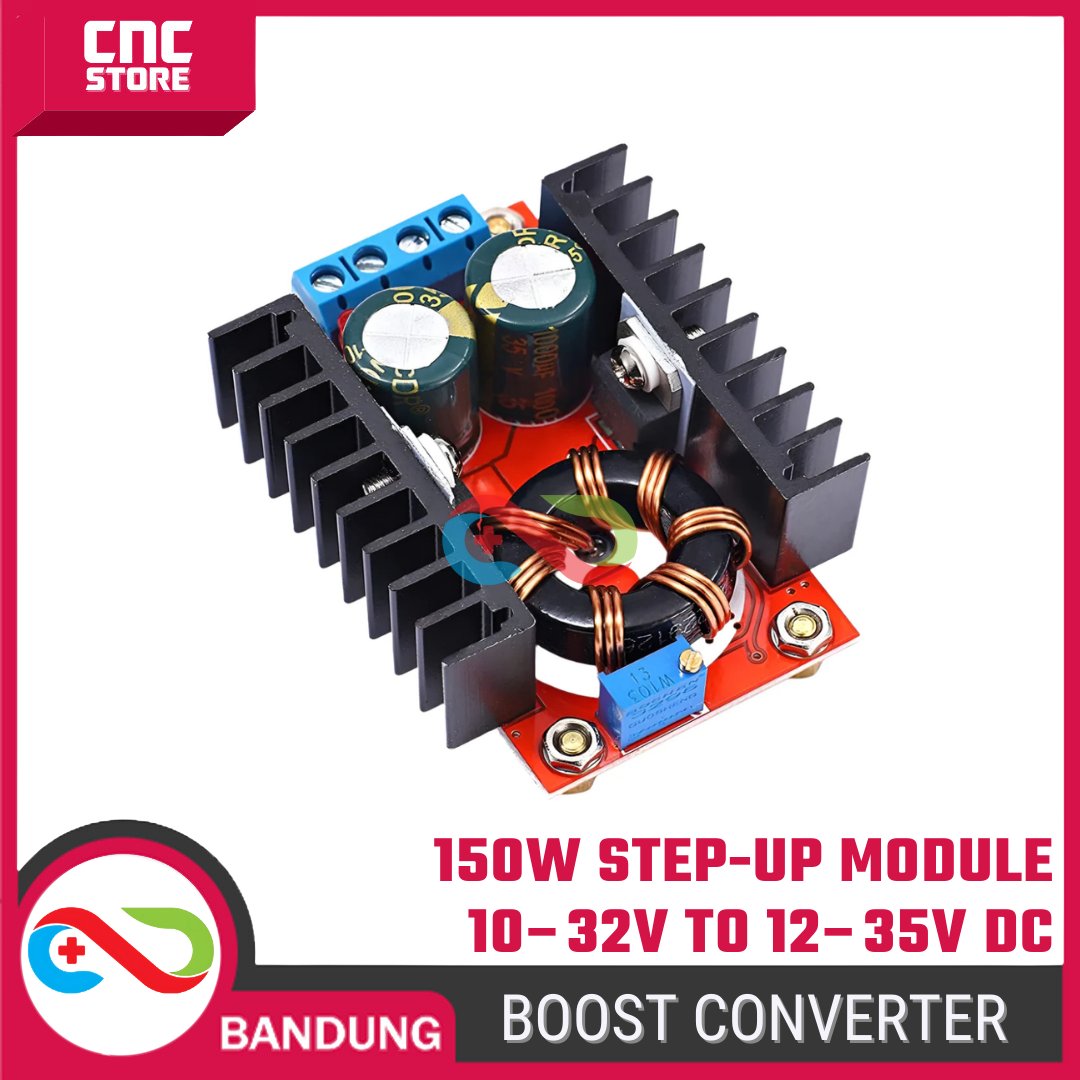

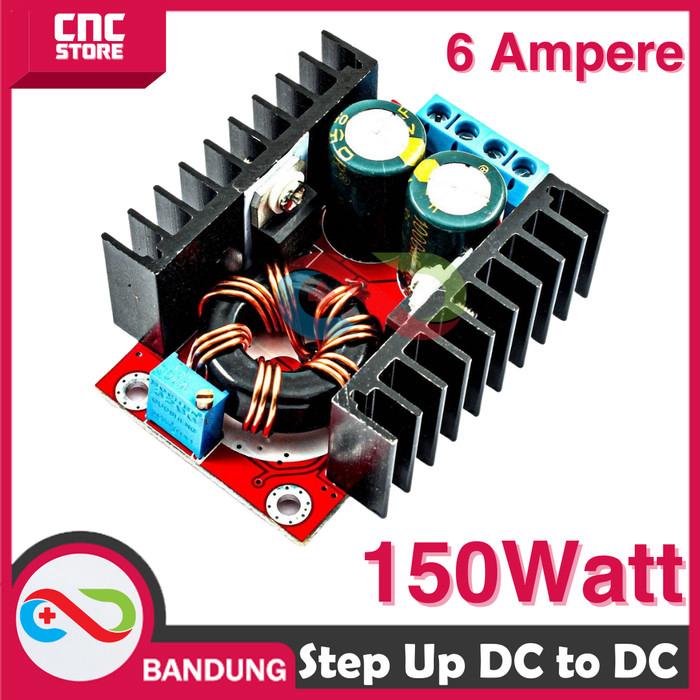

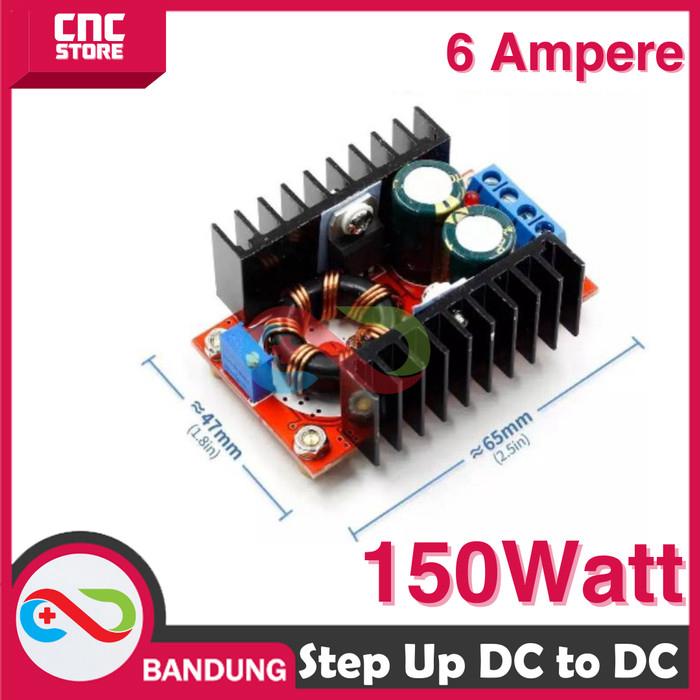

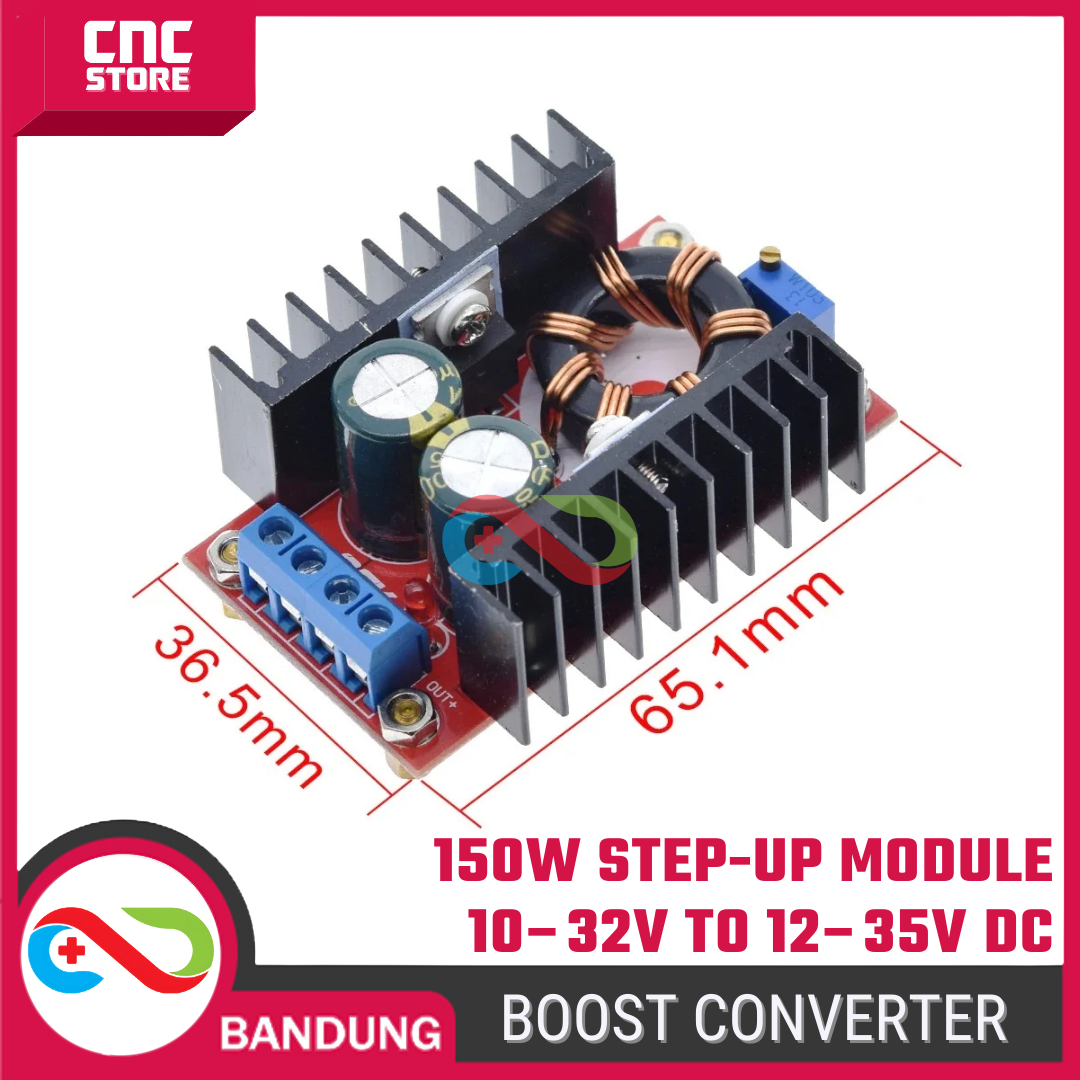

Module DC Step-Up 150W Boost Converter 6A – Boost Converter 10–32V to 12–35V

PSU-0016
========
Kenapa CNC STORE BANDUNG?
Produk high quality
Ada garansi 14 hari
Bisa tanya teknis & dibantu
Cocok untuk teknisi, pelajar, & DIY

==== Deskripsi ====
Halo Insan Bangor!
Kalau kamu butuh naikkin tegangan dari aki, adaptor, atau panel surya tapi nggak perlu monster 1500W…
Modul ini jawabannya!

150W dengan heatsink besar, arus stabil 6A, cocok buat LED high power, motor DC kecil-menengah, radio, router, CCTV, project DIY, hingga power supply custom.
Kecil, kuat, stabil — paket hemat tapi tetap ganas!

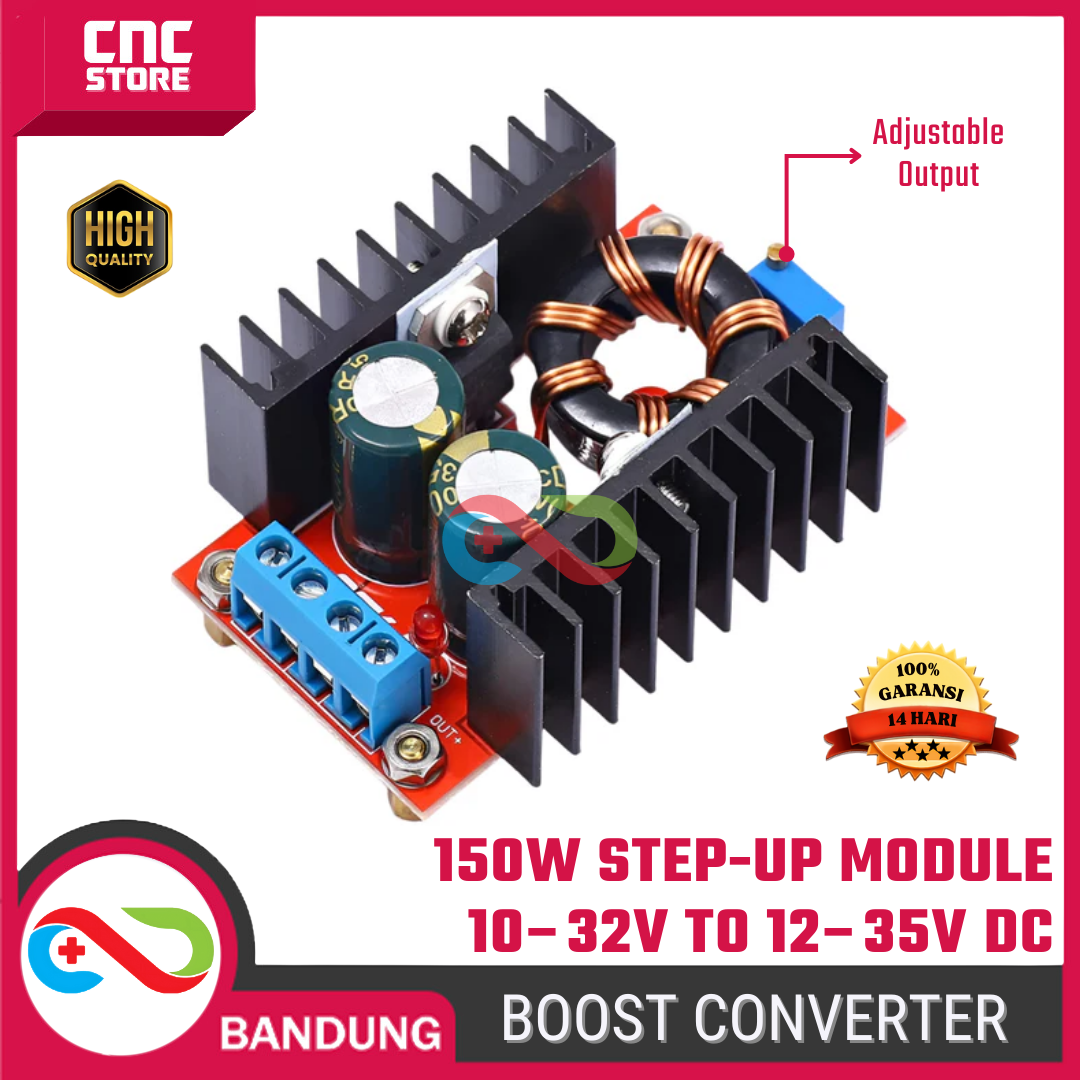

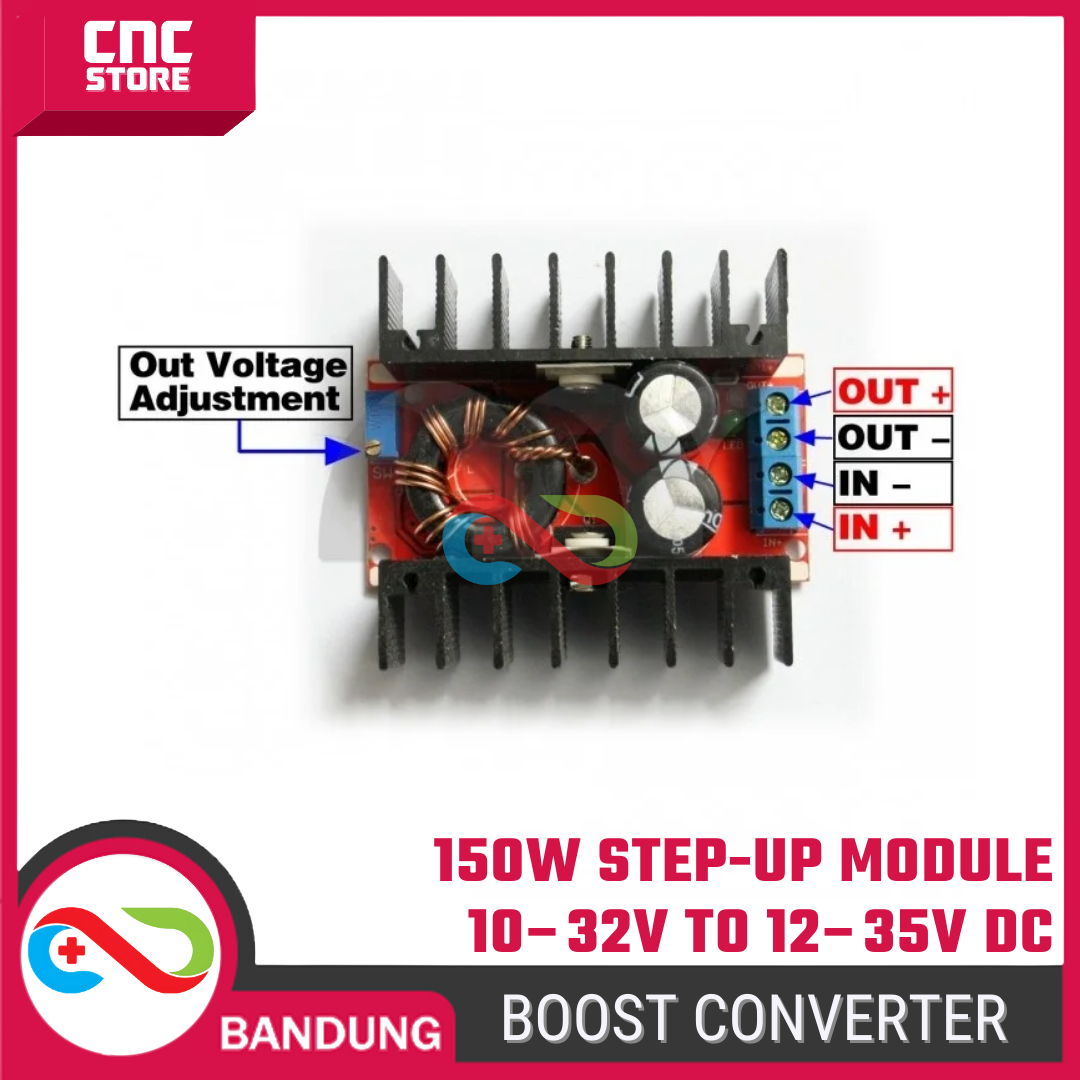

Output bisa kamu atur melalui trimpot sehingga mudah menyesuaikan kebutuhan project.

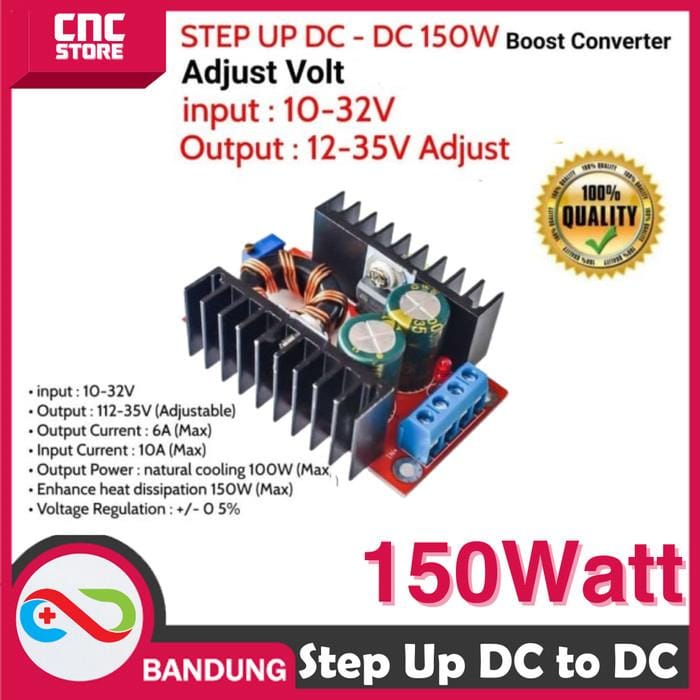

==== Spesifikasi ====
– Input voltage: DC 10V-32V.
– Output voltage: DC12V-35V(adjustable).
– Output current: 10A (MAX).
– Input current 16A (MAX) (more than 10A please strengthen heatsink).
– Output power: natural cooling 100W (MAX), strengthening cooling 150W (MAX) real power.
– Conversion efficiency: 94% (when Input 19V 2.5A Output 16V, Reference).
– Output ripple: 2% (MAX).
– Working temperature: industrial (- 40 c to +85 c)
– Full-Load temperature: 45 degrees.
– No-load current: 25mA typical.
– Voltage regulation: 0.5%.
– Load regulation: 0.5%.
– Dynamic response speed: 200uS 5%.
– Short circuit protection: No (Please installs the fuse or protection circuit at input parts).
– Input Reverse protection: No (please comply with a reverse protection or connect a diode at input parts.)

==== Aplikasi ====
– Naikkan tegangan aki 12V = 19V (laptop)
– Power LED high-output
– Motor DC 12V = 24V
– Radio, amplifier portable
– Router & CCTV dari baterai
– Proyek IoT outdoor
– Power supply custom DIY

==== Paket ====
1x Module DC Step-Up 150W Boost Converter 6A – Boost Converter 10–32V to 12–35V
