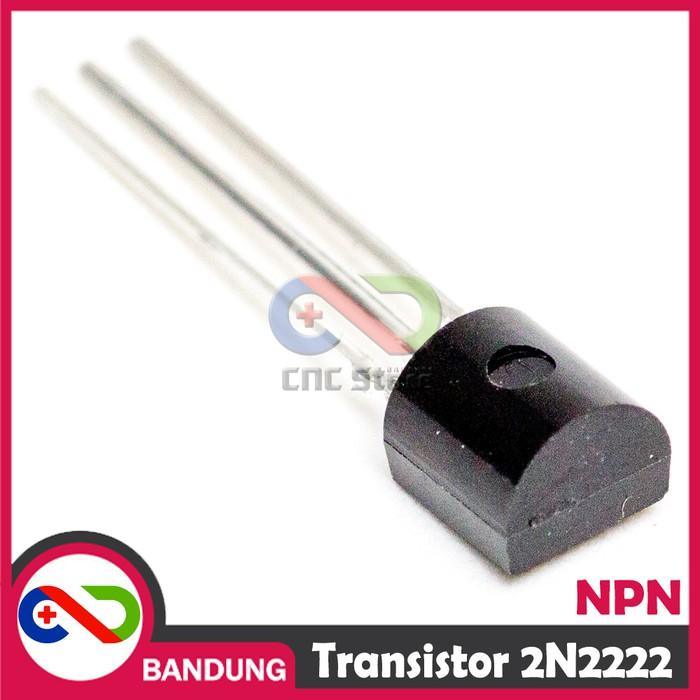

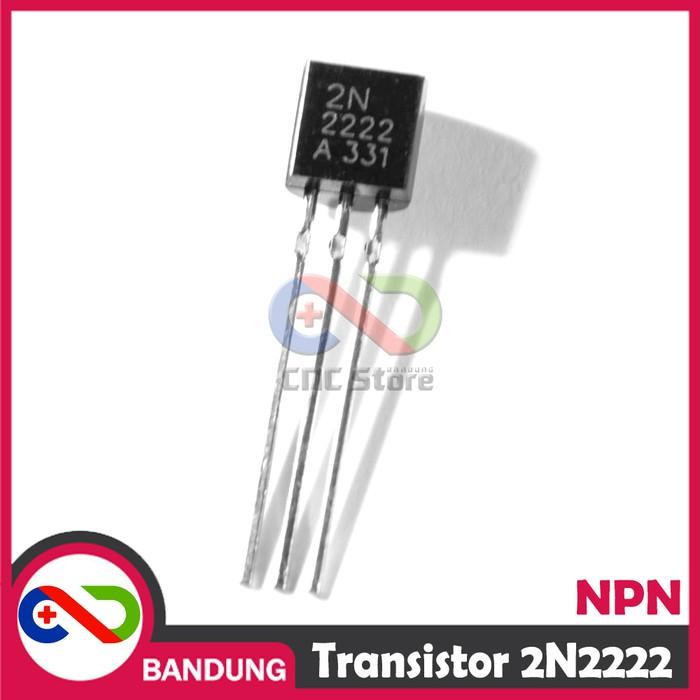

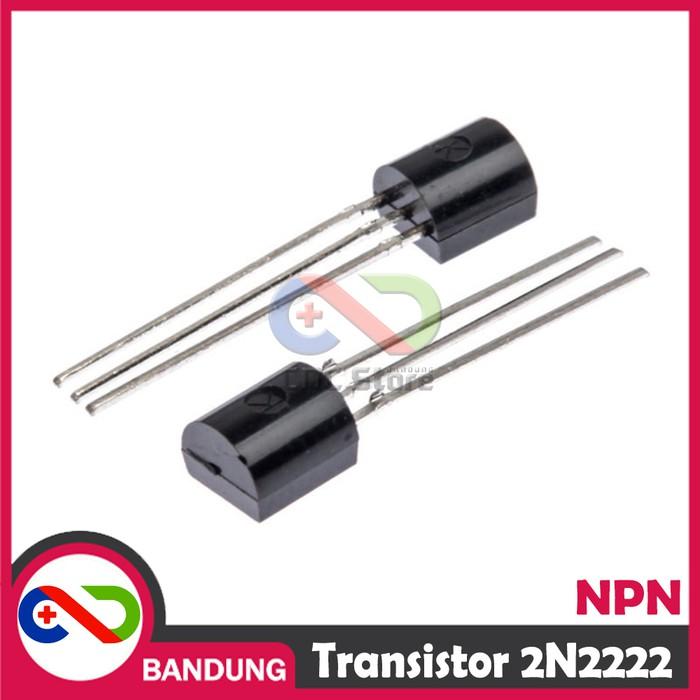

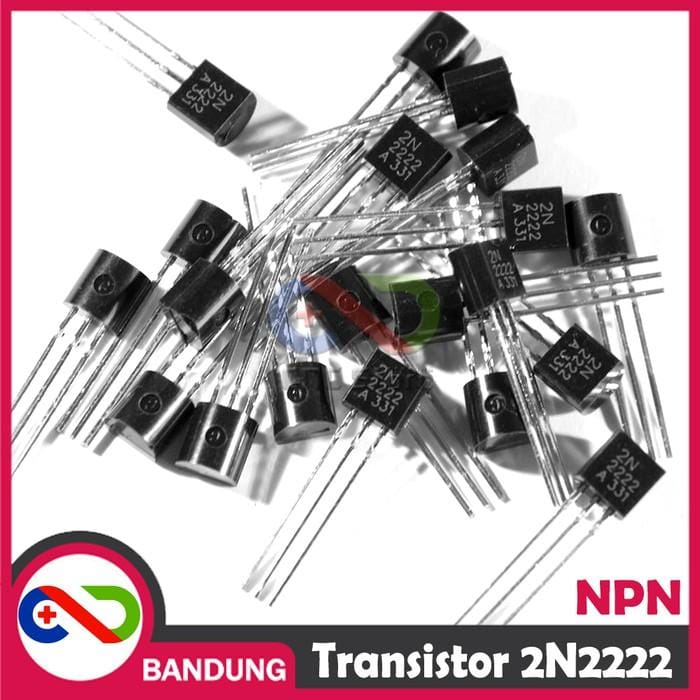

10PCS 2N2222 TO-92 500MA FAST SWITCHING NPN TRANSISTOR

SMC-0002PK
========

Deskripsi:
==============================
General purpose transistor nih gan. Bisa nyuplai arus hingga 500mA. Udah pada
tau lah pasti :D

mari di ORDER !!!!

Spesifikasi:
==============================
– Package / Case : TO-92-3
– Transistor Polarity : NPN
– Configuration : Single
– Collector- Emitter Voltage VCEO Max : 40 V
– Collector- Base Voltage VCBO : 75 V
– Emitter- Base Voltage VEBO : 6 V
– Collector-Emitter Saturation Voltage : 1 V
– Maximum DC Collector Current : 1A
– Gain Bandwidth Product fT : 300 MHz
– Minimum Operating Temperature : – 55 C
– Maximum Operating Temperature: + 150 C
– Continuous Collector Current : 500mA
– DC Collector/Base Gain hfe Min : 100
– DC Current Gain hFE Max : 300
– Pd – Power Dissipation: 625 mW

Paket :
==============================
10X 2N2222 TO-92 500MA FAST SWITCHING NPN TRANSISTOR

UNTUK HARGA GROSIR CHAT US ^^
