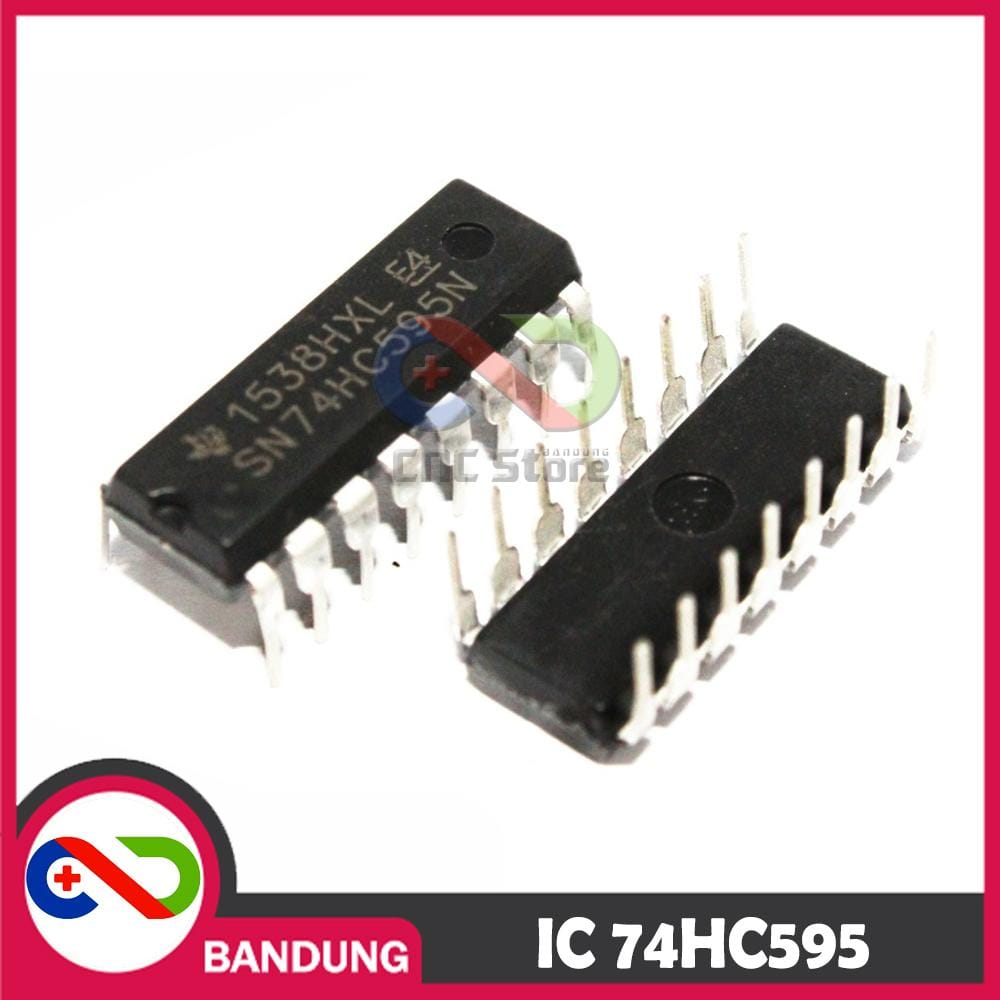

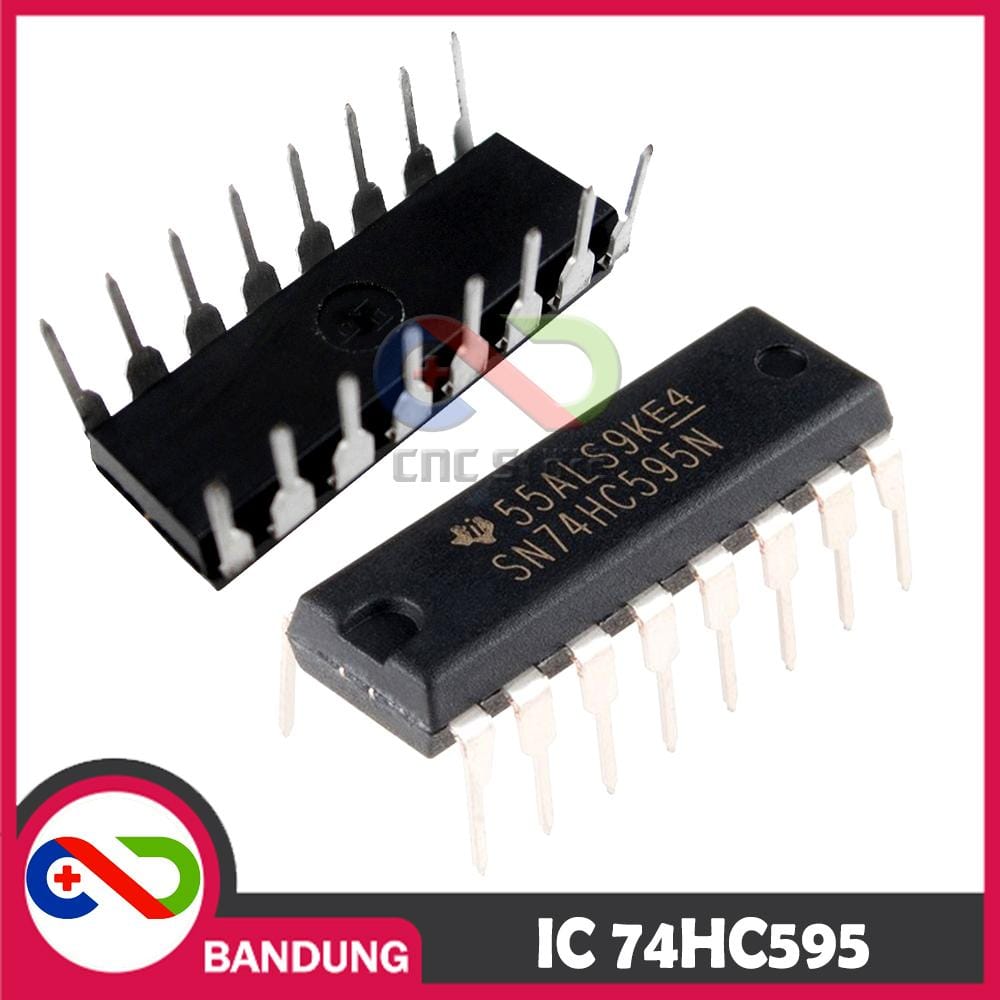

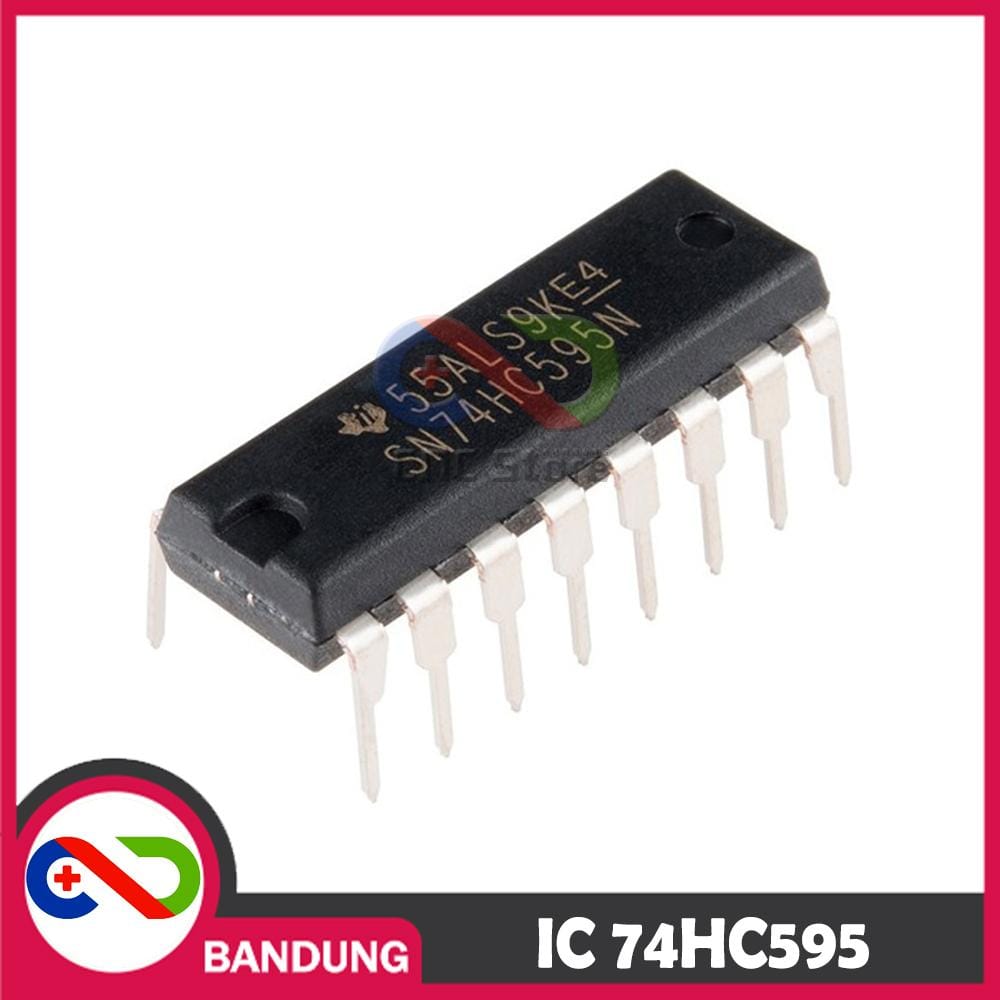

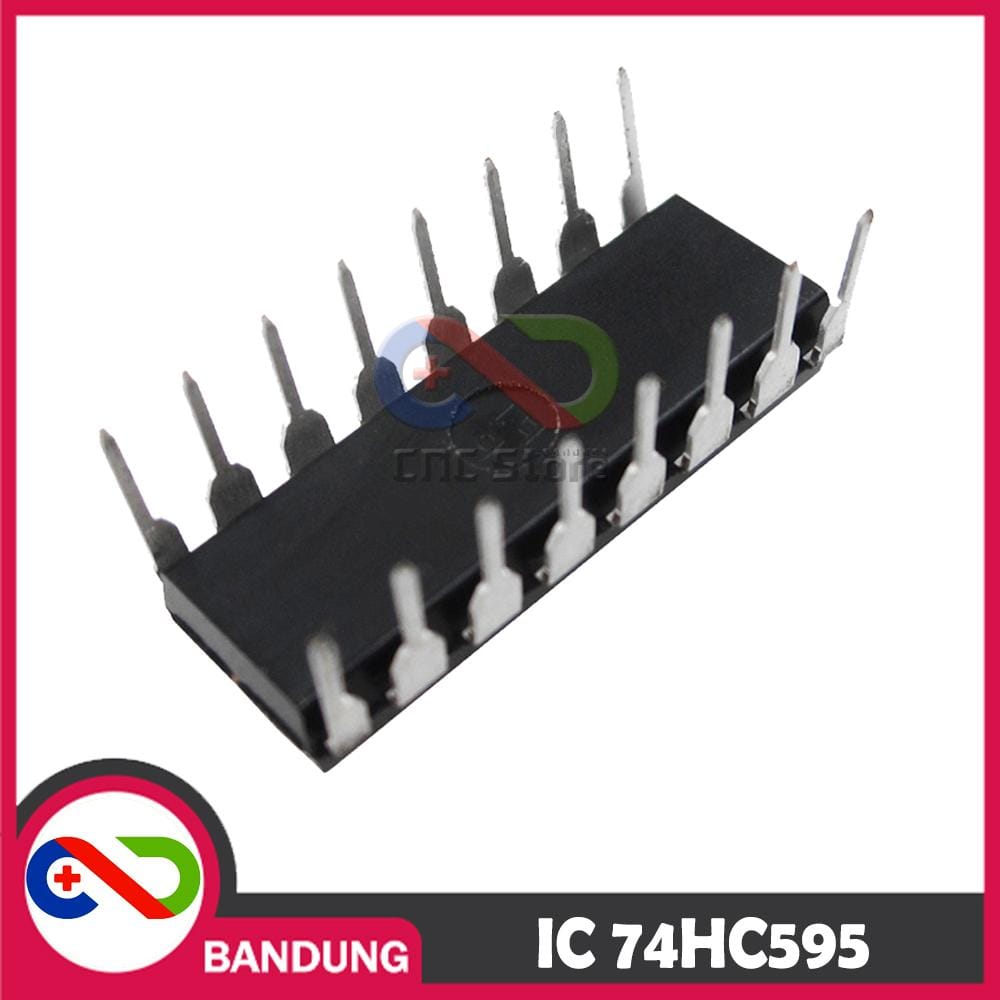

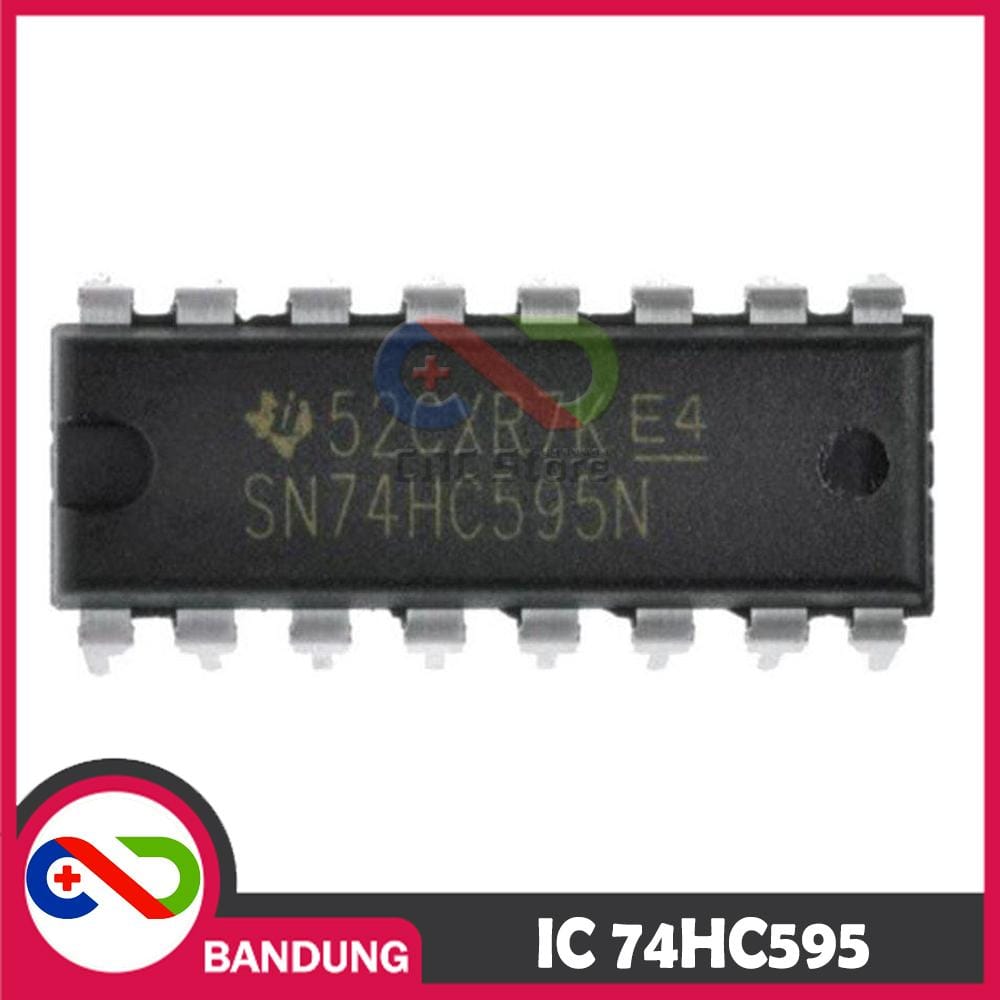

74HC595 74HC595N DIP-16 8 BIT SHIFT REGISTER IC

ICS-0011Deskripsi

Pin I/O arduino terbatas banget gan, very very precious gitu. So, buat agan yang pengen nambah jumlah output arduino-nya tapi terbatas dengan jumlah pin, 74HC595 bisa jadi solusi murah meriah mudah :D

Hanya dengan memanfaatkan 3 pin, maka outputnya bisa jadi 8 atau lebih dengan cara Multiplexing.

So, tunggu apa lagi gan?? Silahkan di ORDER !!!! :D

The 74HC595; 74HCT595 are high-speed Si-gate CMOS devices and are pin compatiblewith Low-power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard No. 7A.

The 74HC595; 74HCT595 are 8-stage serial shift registers with a storage register and 3-state outputs. The registers have separate clocks. Data is shifted on the positive-going transitions of the shift register clock input (SHCP). The data in each register is transferred to the storage register on a positive-going transition of the storage register clock input (STCP). If both clocks are connected together,the shift register will always be one clock pulse ahead of the storage register.

Features

8-bit serial input

8-bit serial or parallel output

Storage register with 3-state outputs

Shift register with direct clear

100 MHz (typical) shift out frequency

Specified from 40 C to +85 C and from 40 C to +125 C

Paket :
1X SN74HC595N 74HC595N DIP-16 8 BIT SHIFT REGISTER IC
terima kasih

UNTUK HARGA GROSIR CHAT US ^^
